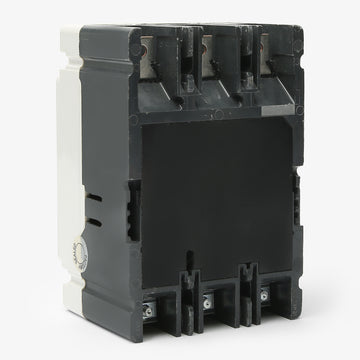

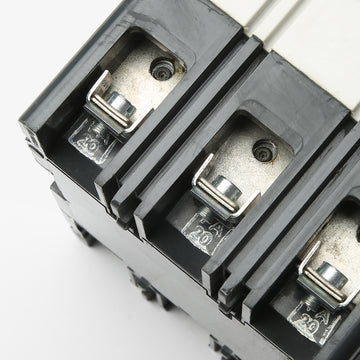

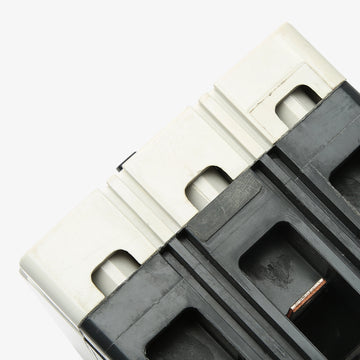

Eaton / Cutler-Hammer EHD3090 Molded Case Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
EHD3090
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EHD3090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer EHD3090 - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer EHD3090 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | EHD |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | EHD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lug |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Eaton / Cutler-Hammer EHD3090 - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | EHD |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | EHD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lug |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
80A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Part of the Series C family, this 90-amp, three-pole breaker delivers robust thermal-magnetic protection for commercial systems. The bolt-on design installs into Eaton panelboards, switchboards, and motor control centers. It serves as a reliable component for existing infrastructure, eventually replaced by the PDG23F0090TFFL. Rated for 14kAIC at 480VAC, this F-Frame unit includes load side lugs and supports reverse feed setups. It is fully HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | EHD |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | EHD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lug |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards and enclosures are compatible with the EHD3090?
The EHD3090 is designed for use in Eaton Series C panelboards, switchboards, and motor control centers. It mounts using a standard bolt-on connection.
Can the Eaton EHD3090 replace an older Westinghouse EHD3090?
Yes. Eaton acquired the Westinghouse distribution equipment division. The current Eaton EHD3090 is a direct drop-in replacement for the legacy Westinghouse EHD3090.
Is the EHD3090 suitable for reverse feed applications?
Yes, standard Eaton Series C F-Frame breakers, including the EHD3090, are suitable for reverse feed applications.
Is the EHD3090 HACR rated?
Yes, all Eaton F-Frame circuit breakers are HACR rated for use with heating, air conditioning, and refrigeration equipment.
What is the standard lug kit for the EHD3090?
The standard lug kit for 15A to 100A F-Frame breakers is the 3T100FB. It accepts wire sizes from 14 AWG to 1/0 AWG.
What type of contact design does the EHD3090 use?
It features Eaton's patented high-speed blow-open contact design, which provides rapid fault clearing and superior performance during a short circuit.
