Eaton / Cutler-Hammer FDB3090L Molded Case Circuit Breaker
- 90A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
FDB3090L
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FDB3090L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

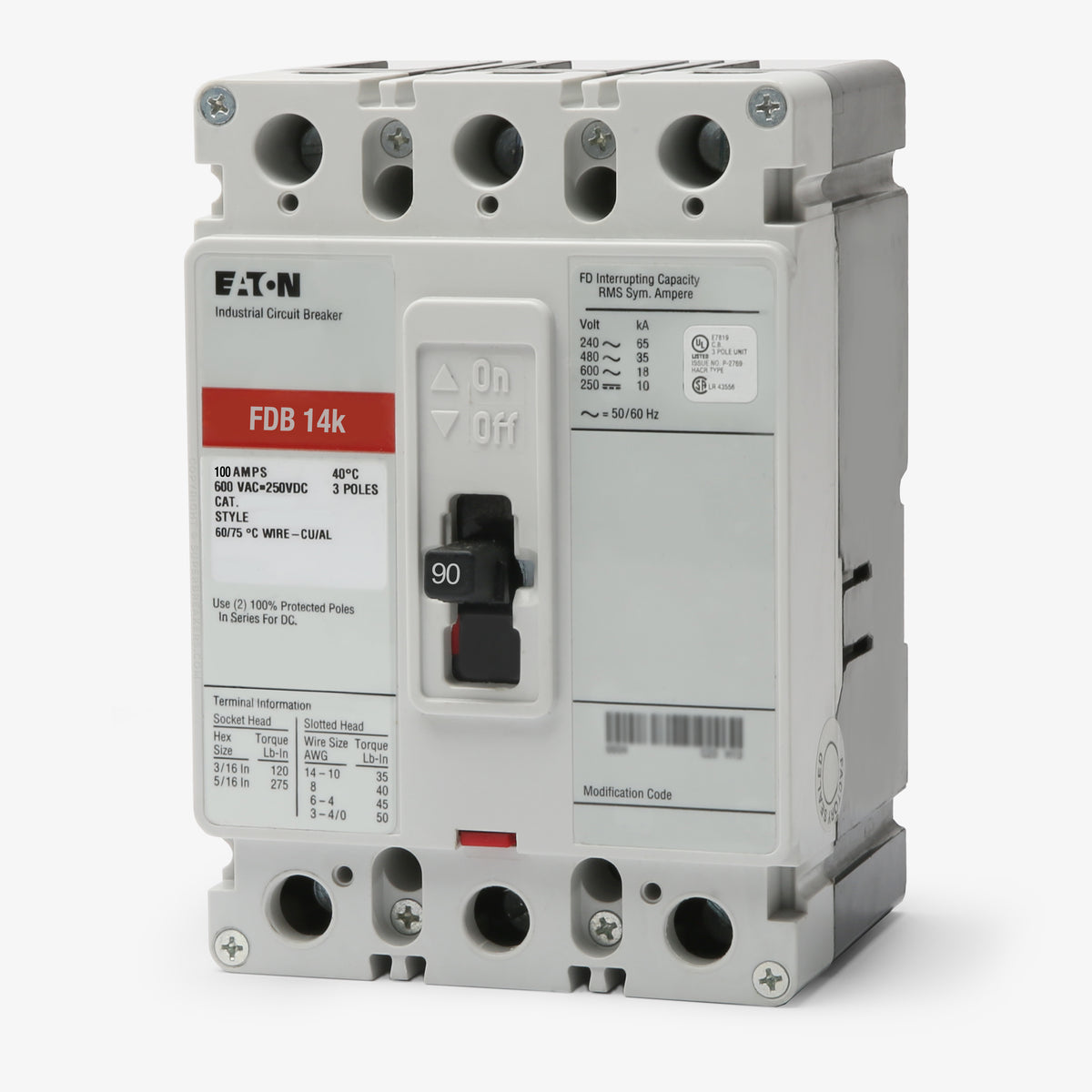

Eaton / Cutler-Hammer FDB3090L - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
Description
Designed to streamline installation, the Eaton FDB3090L comes factory-equipped with both line and load side lugs. This 90-amp, three-pole molded case circuit breaker is part of the trusted Series C family, delivering fixed thermal and magnetic protection. Mounting securely into Eaton panelboards and switchboards, this F-frame unit offers broad compatibility. It serves as a direct cross-reference for legacy FD3090L breakers. Capable of interrupting 14 kAIC at 480VAC.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FDB3090L |
| Series | FDB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersCan I use the Eaton FDB3090L to replace an older Westinghouse FDB3090L?
Yes. Eaton acquired the Westinghouse distribution equipment line. The current Series C F-frame breakers are direct replacements for legacy Westinghouse models sharing the same catalog number.
What does the L suffix in the FDB3090L catalog number indicate?
The L indicates that the breaker is factory-equipped with both line and load side lug terminals. These lugs accept 14 to 1/0 AWG copper or aluminum wire.
What types of enclosures accept the FDB3090L breaker?
This unit mount breaker is designed to bolt directly into compatible Eaton Series C panelboards, switchboards, and motor control centers.
Is the FDB3090L rated for direct current (DC) applications?
Yes, in addition to its AC ratings, this breaker is rated for up to 250VDC with an interrupting capacity of 10 kAIC.
Can the trip settings on the FDB3090L be adjusted in the field?
No. This breaker features a non-interchangeable thermal magnetic trip unit with fixed long-time and fixed instantaneous trip functions.
What frame family does the FDB3090L belong to?
It is part of the Eaton Series C F-frame family. This frame group also includes FD, HFD, and FDC circuit breakers, which share the same physical footprint but offer different interrupting capacities.
