Eaton / Cutler-Hammer FDC3200L Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
FDC3200L
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FDC3200L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

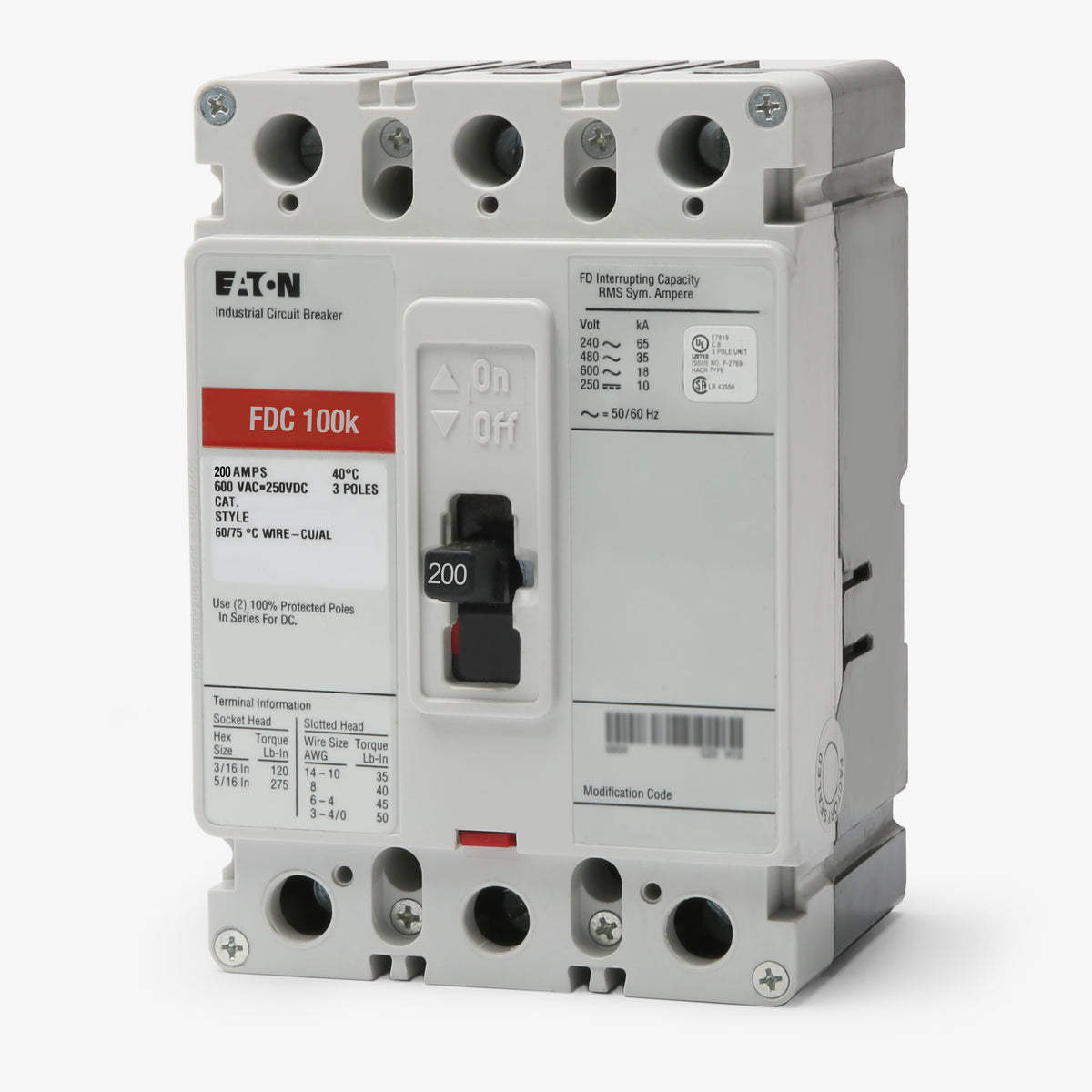

Eaton / Cutler-Hammer FDC3200L - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, this 200A F-Frame breaker provides reliable thermal-magnetic protection with long-time and instantaneous trip functions. It integrates seamlessly into Eaton Series C panelboards, switchboards, and motor control centers. Delivering a robust 100kAIC interrupting capacity at 480VAC, the unit features current-limiting capabilities and reverse feed compatibility. Note that this model is migrating to the Power Defense PDG23P0200TFFJ series.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FDC3200L |
| Series | FDC |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 35kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat is the difference between the Eaton FD3200, HFD3200, and FDC3200?
These breakers share the same physical dimensions and F-frame footprint but have different interrupting ratings. The FD3200 is rated 35kA at 480VAC, the HFD3200 is rated 65kA at 480VAC, and the FDC3200 features an ultra-high interrupting capacity of 100kA at 480VAC.
What does the L suffix in the FDC3200L catalog number indicate?

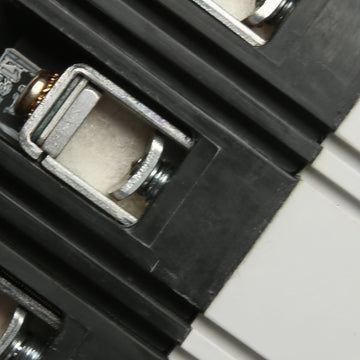

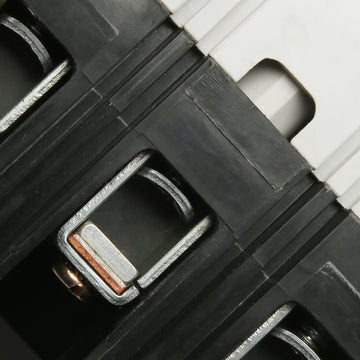

The L suffix indicates that the circuit breaker is supplied from the factory with standard pressure lugs installed on both the line and load sides.
Which replacement lug kit is compatible with the FDC3200L?
The standard replacement lug kit for 225A maximum F-frame breakers is the 3TA225FD. This three-pole kit accepts 4 AWG to 4/0 AWG copper or aluminum conductors.
Can the FDC3200L be reverse fed?
Yes. Eaton Series C F-frame thermal magnetic circuit breakers without Line and Load markings are suitable for reverse feed applications.
What equipment is the FDC3200L designed to fit?
This F-frame breaker is designed for use in Eaton Series C panelboards, Pow-R-Line C panelboards, switchboards, and motor control centers.
How does the FDC3200L perform in DC voltage applications?
It is rated for up to 250 VDC with an interrupting capacity of 22kA. When used in DC applications, the magnetic trip levels operate approximately 40 percent higher than their standard AC ratings.
