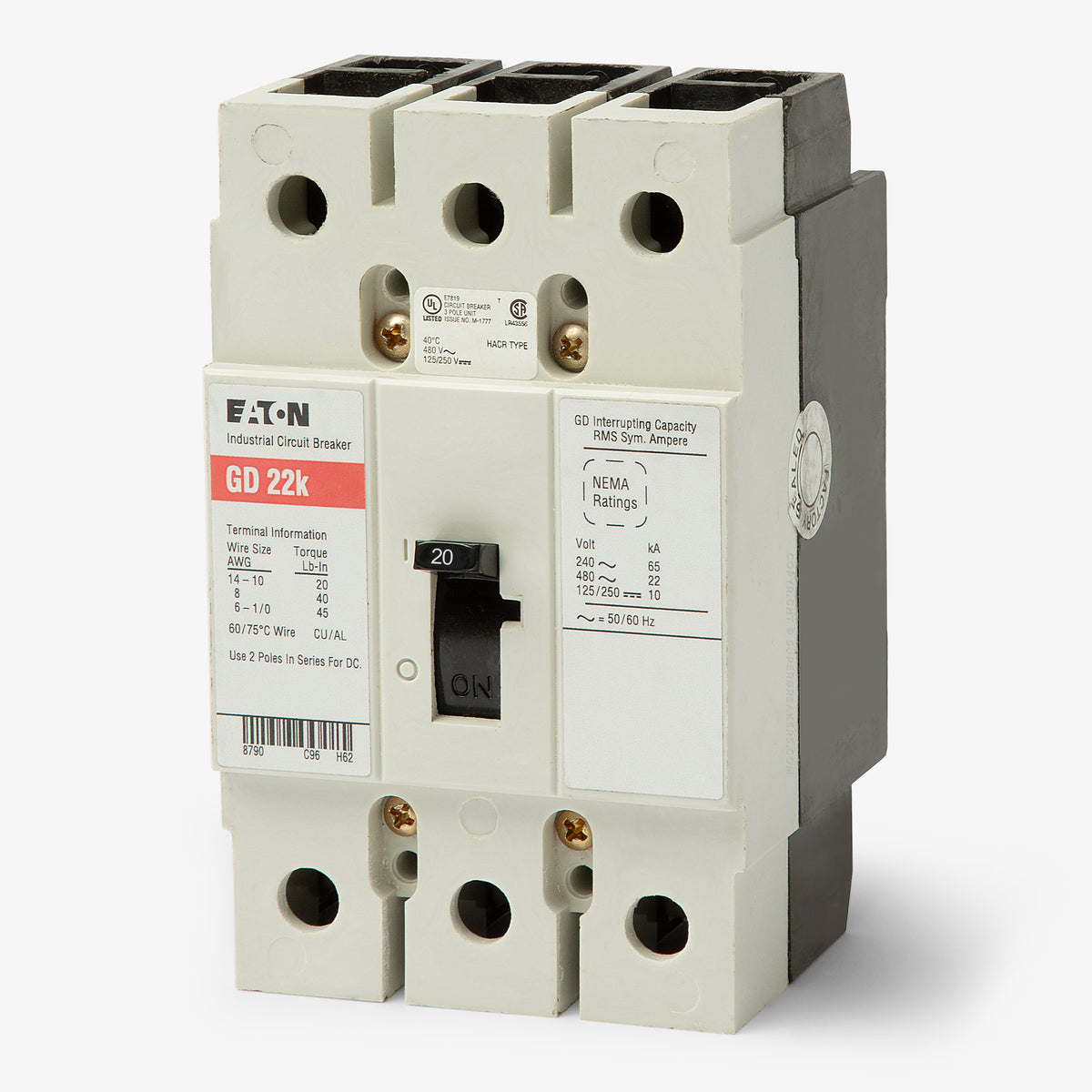

Eaton / Cutler-Hammer GD3020 Molded Case Circuit Breaker
- 20A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
GD3020
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GD3020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GD3020 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer GD3020 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GD3020 |
| Series | GD |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 22kA @ 480VAC, 10kA @ 125/250VDC |
| Frame Type | G |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Motor Control Centers, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter, Motor Operator |
|---|---|
| Accessories | Line and Load Terminals |
| Standards | HACR, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Quantity
Eaton / Cutler-Hammer GD3020 - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | GD |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 22kA @ 480VAC, 10kA @ 125/250VDC |
| Frame Type | G |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Motor Control Centers, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter, Motor Operator |
|---|---|
| Accessories | Line and Load Terminals |
| Standards | HACR, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Similar Items
15A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Engineered for demanding commercial environments, the Eaton GD3020 provides robust overcurrent protection. This 20A, 3-pole MCCB is part of the proven Series C G-Frame family, offering dependable performance for motor control and power distribution. It installs into compatible Eaton panelboards, switchboards, and enclosures. The unit-mount design features standard line and load lug terminals. Equipped with fixed thermal-magnetic trip units, it delivers a 65 kAIC interrupt rating at 240V.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GD3020 |
| Series | GD |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 22kA @ 480VAC, 10kA @ 125/250VDC |
| Frame Type | G |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Motor Control Centers, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter, Motor Operator |
|---|---|
| Accessories | Line and Load Terminals |
| Standards | HACR, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
5 answersWhat wire sizes and materials are compatible with the standard lugs on the GD3020?

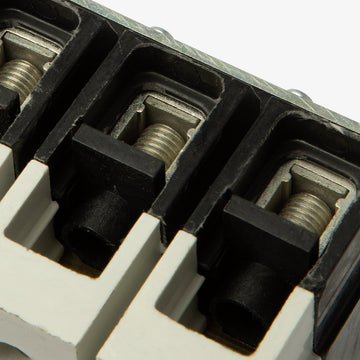

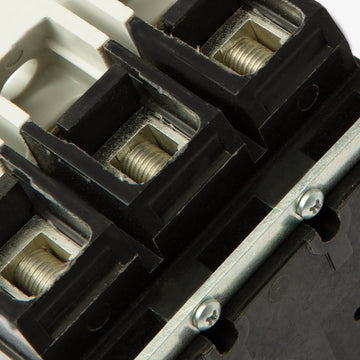

The factory-installed pressure lugs accept 14 AWG through 1/0 AWG copper (Cu) or aluminum (Al) conductors.
Can I use the GD3020 to replace a GHC3020 or GHB3020 circuit breaker?
Yes. The GD frame shares the same physical dimensions as the GHC and GHB frames and can be interchanged. Additionally, the GD3020 features a straight 480VAC rating, making it suitable for 3-phase delta systems where GHC and GHB breakers (which are typically limited to 480Y/277V) cannot be used.
How does the GD3020 mount inside a panelboard or enclosure?

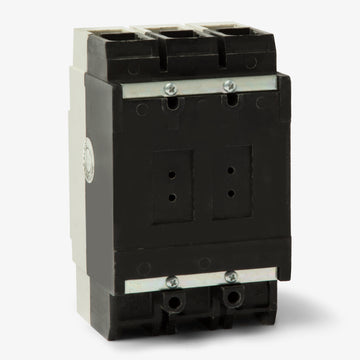

This is a unit-mount, feed-thru circuit breaker. It bolts directly to the backpan of the enclosure or panelboard rather than plugging onto a busbar, and it requires wired connections on both the line and load terminals.
How is this 3-pole breaker applied in 250VDC systems?
While the GD3020 is rated for 125/250VDC at 10kAIC, applying it at the full 250VDC rating requires wiring two of the three poles in series.
Is the GD3020 HACR rated for HVAC equipment?
Yes, Eaton Series C G-frame molded case circuit breakers carry a HACR rating, making them suitable for branch circuit protection of heating, air conditioning, and refrigeration equipment.
