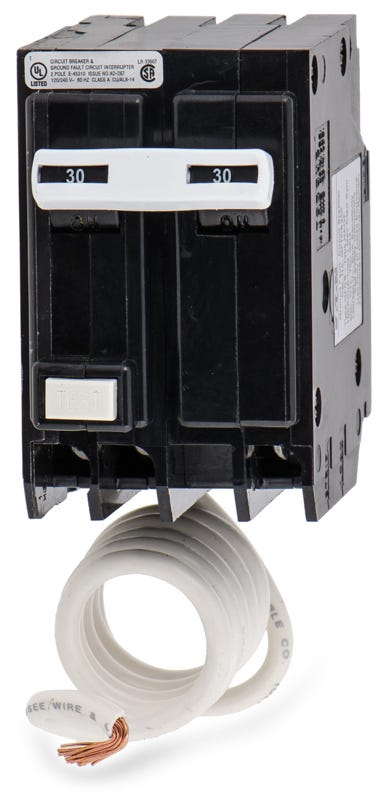

Eaton / Cutler-Hammer GFTCB230 GFCI Miniature Circuit Breaker
- 30A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
GFTCB230
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GFTCB230
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GFTCB230 - 30A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
25A GFCI Miniature Circuit Breaker
40A GFCI Miniature Circuit Breaker
45A GFCI Miniature Circuit Breaker
Description
Part of the BR family, the Eaton GFTCB230 provides 30A of ground-fault protection for 120/240VAC circuits. It is specifically engineered to meet NEC requirements for areas prone to moisture, such as bathrooms, kitchens, and outdoor receptacles. Featuring a standard plug-on design, this breaker fits seamlessly into Eaton BR, Bryant, Challenger, and Westinghouse load centers. It replaces the older GFCB230 and has since been replaced by the BRN230GF in Eaton's current catalog.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GFTCB230 |
| Series | GFTCB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton BR Load Centers, Westinghouse Load Centers, Challenger Load Centers, Bryant Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | Federal Spec W-C375, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Self-Test, Common Trip |
Product FAQs
7 answersWhich electrical panels are compatible with the GFTCB230?
This plug-on breaker is designed for use in Eaton BR load centers. It is also backward compatible with legacy Westinghouse, Challenger, and Bryant load centers that accept Type BR breakers.
What level of ground fault protection does the GFTCB230 provide?
It provides Class A ground fault protection with a 5mA trip sensitivity. This level of protection is designed for personnel safety in wet or damp locations, such as outdoor circuits, spas, and bathrooms.
How is the neutral connection wired on this breaker?
The GFTCB230 features a pigtail neutral connection. The coiled white pigtail wire must be connected directly to the panel's neutral bus bar to ensure the ground fault circuitry functions correctly.
What wire sizes are accepted by the GFTCB230 terminals?
The box lugs on this breaker accept copper or aluminum conductors ranging from 14 AWG to 4 AWG.
What is the recommended terminal tightening torque for this breaker?
The load terminals on the GFTCB230 should be tightened to 20 lb-in. Always use a calibrated torque tool to ensure a secure connection and prevent thermal issues.
Can this breaker replace older Bryant or Westinghouse GFCI breakers?
Yes, the Eaton BR series is the direct, UL-listed replacement for older Bryant, Westinghouse, and Challenger Type BR breakers of the same amperage and pole configuration.
Is this breaker suitable for 240V hot tub or spa applications?
Yes, as a 2-pole, 30A breaker with 5mA GFCI sensitivity, it is commonly used for dedicated 240V circuits requiring personnel protection, such as hot tubs and spas, provided the 30A rating matches the equipment requirements.
