Eaton / Cutler-Hammer GMCP007C0C Motor Circuit Protector
- 7A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
GMCP007C0C
Motor Circuit Protector
Brand
Eaton / Cutler-Hammer
SKU
GMCP007C0C
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

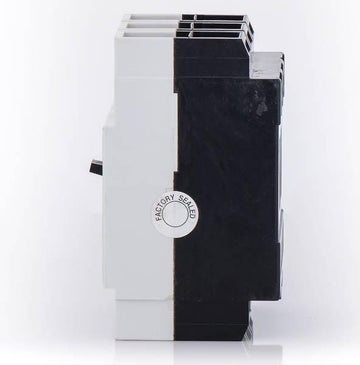

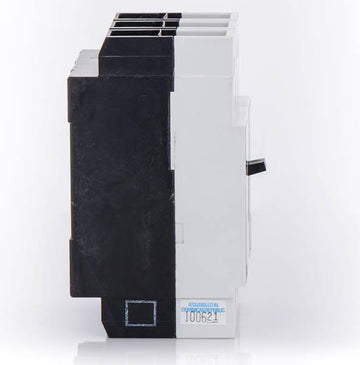

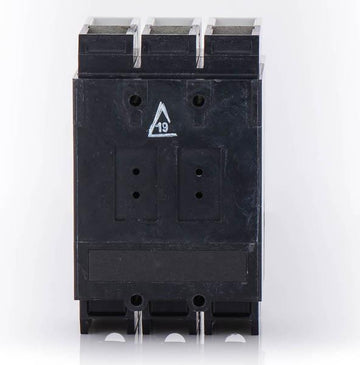

Eaton / Cutler-Hammer GMCP007C0C - 7A 3 Pole Motor Circuit Protector
New
Quantity
Similar Items
Eaton / Cutler-HammerHMCP007C0
7A 3 Pole Motor Circuit Protector
Eaton / Cutler-HammerHMCPS007C0C
7A 3 Pole Motor Circuit Protector
Description
Part of the Series C family, the Eaton GMCP007C0C is a 3-pole, 7A motor circuit protector. It provides instantaneous protection, working with overload relays to safeguard motor circuits. This breaker fits into Eaton Series C motor control centers and combination starters. It comes equipped with copper terminals for secure connections. Rated 35 kAIC at 480VAC, it incorporates an adjustable magnetic trip unit spanning 35 to 70 amps (Code C0) for precise coordination with NEMA Size 0 starters.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GMCP007C0C |
| Series | GMCP |
| Amperage | 7A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Motor Control Centers, Combination Motor Starters, Series C Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included, Copper Lugs Included |
| Standards | CSA C22.2 No. 5.1, IEC 157-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector |
