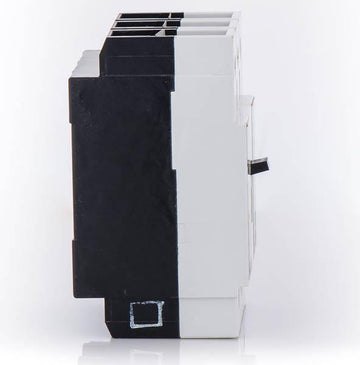

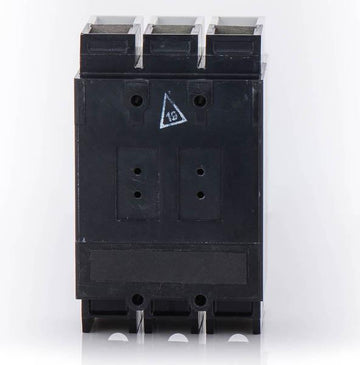

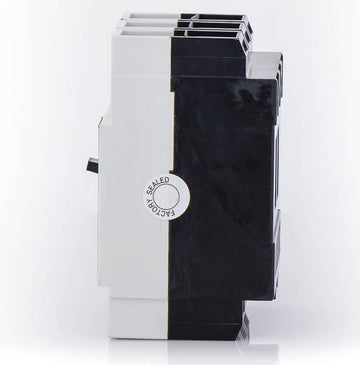

Eaton / Cutler-Hammer GMCP063M2C Motor Circuit Protector
- 63A
- 3 Pole
- Unit Mount
Quantity
Eaton / Cutler-Hammer GMCP063M2C - 63A 3 Pole Motor Circuit Protector
New
Quantity
Description
Built to handle demanding industrial motor loads, this 63A Series C protector delivers instantaneous magnetic-only trip capabilities. It fits securely into Eaton combination motor starters, control centers, and compatible panelboards. The adjustable magnetic trip dial spans from 320 to 630 amps, allowing precise coordination with external overload relays. Featuring a 35kA interrupting capacity at 480VAC, this current-limiting device includes copper terminals for reliable connectivity.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GMCP063M2C |
| Series | GMCP |
| Amperage | 63A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Motor Control Centers, Combination Motor Starters, Series C Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included, Copper Lugs Included |
| Standards | CSA C22.2 No. 5.1, IEC 157-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector |
