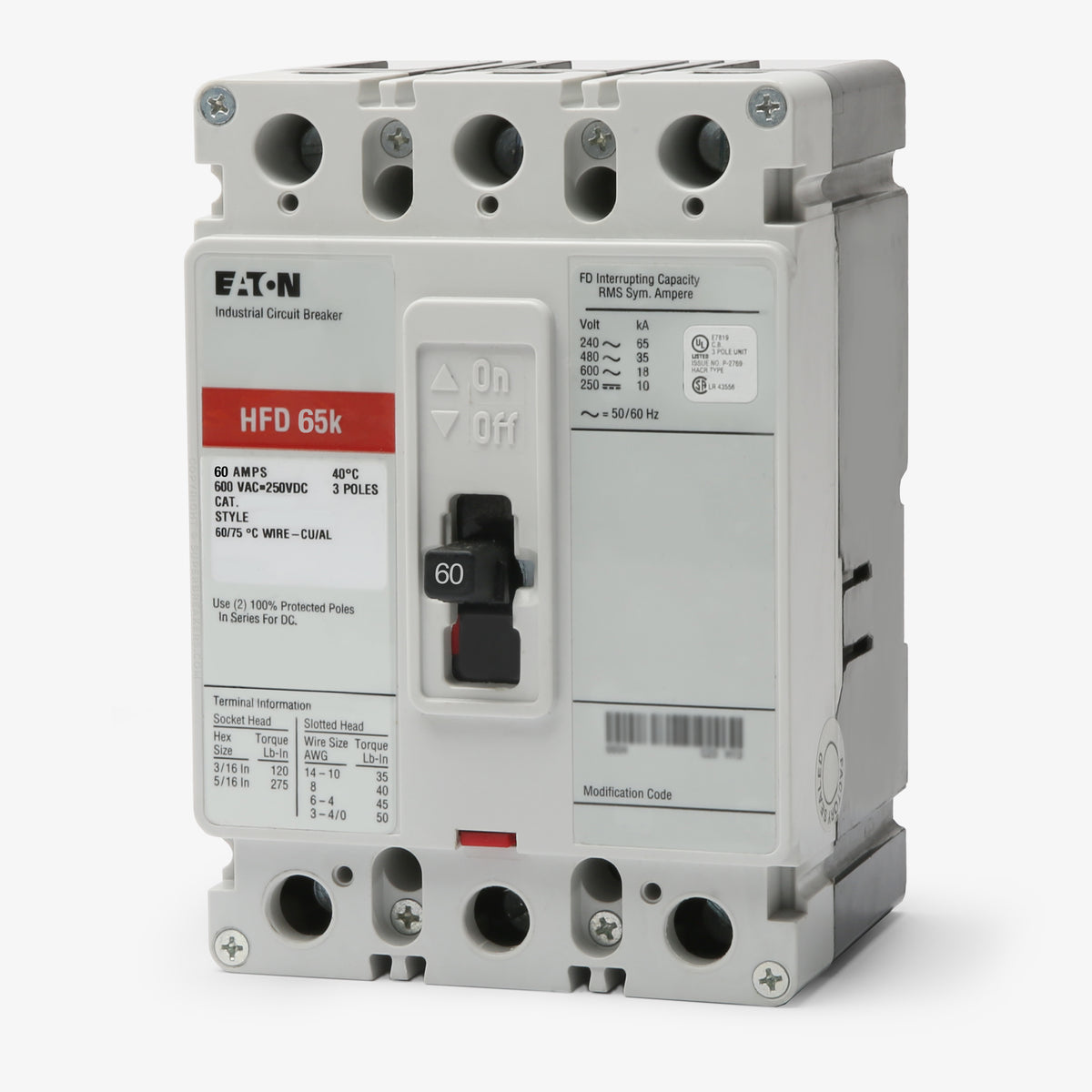

Eaton / Cutler-Hammer HFD3060L Molded Case Circuit Breaker
- 60A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
HFD3060L
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
HFD3060L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer HFD3060L - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer HFD3060L - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFD3060L |
| Series | HFD |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | HFD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Motor Control Centers, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Quantity
Eaton / Cutler-Hammer HFD3060L - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | HFD |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | HFD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Motor Control Centers, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Similar Items
50A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Built for standalone applications, the Eaton HFD3060L is a 3-pole, 60A unit-mount molded case circuit breaker. Belonging to the Series C family, this F-frame breaker is designed for flexible installation in enclosures and motor control centers. Equipped with factory-installed line and load lugs, it offers straightforward wire termination. For system upgrades, it is replaced by the Power Defense PDG23M0060TFFJ. Delivering 65kAIC at 480V, it utilizes fixed thermal-magnetic (LI) trip functions.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | HFD |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | HFD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Motor Control Centers, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersCan I use the Eaton HFD3060L to replace an older Cutler-Hammer or Westinghouse breaker?
Yes. Eaton acquired the electrical divisions of both Westinghouse and Cutler-Hammer. The HFD3060L is a direct replacement for legacy Westinghouse and Cutler-Hammer models, maintaining the exact same physical dimensions and catalog number.
What is the difference between an FD3060 and an HFD3060L circuit breaker?
The "H" in the HFD prefix indicates a high-interrupting capacity. A standard FD3060 is rated to safely interrupt a 35kA fault at 480VAC, whereas the HFD3060L is rated for 65kA at 480VAC. Additionally, the "L" suffix means the HFD3060L includes factory-installed line and load lugs.
Does the HFD3060L come with wiring terminals included?
Yes. The "L" suffix at the end of the catalog number signifies that this breaker is shipped from the factory with standard lugs installed on both the line and load sides.
Can the HFD3060L be reverse fed?
Yes. Eaton Series C F-frame circuit breakers are suitable for reverse feed applications. They can be safely wired with the supply power coming into either the top or bottom terminals.
How does this breaker mount into a panel?
The HFD3060L is a unit mount, feed-thru breaker. This means it bolts directly to a mounting backplate or enclosure panel rather than plugging onto a live busbar. The electrical connections are made by landing wires directly into the lugs on both ends of the breaker.
Is the HFD3060L suitable for HVAC equipment protection?
Yes. All Eaton Series C F-frame circuit breakers are HACR rated, making them approved for use with heating, air conditioning, and refrigeration equipment.
