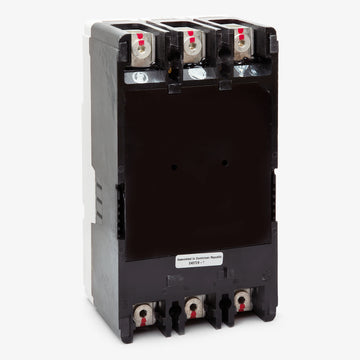

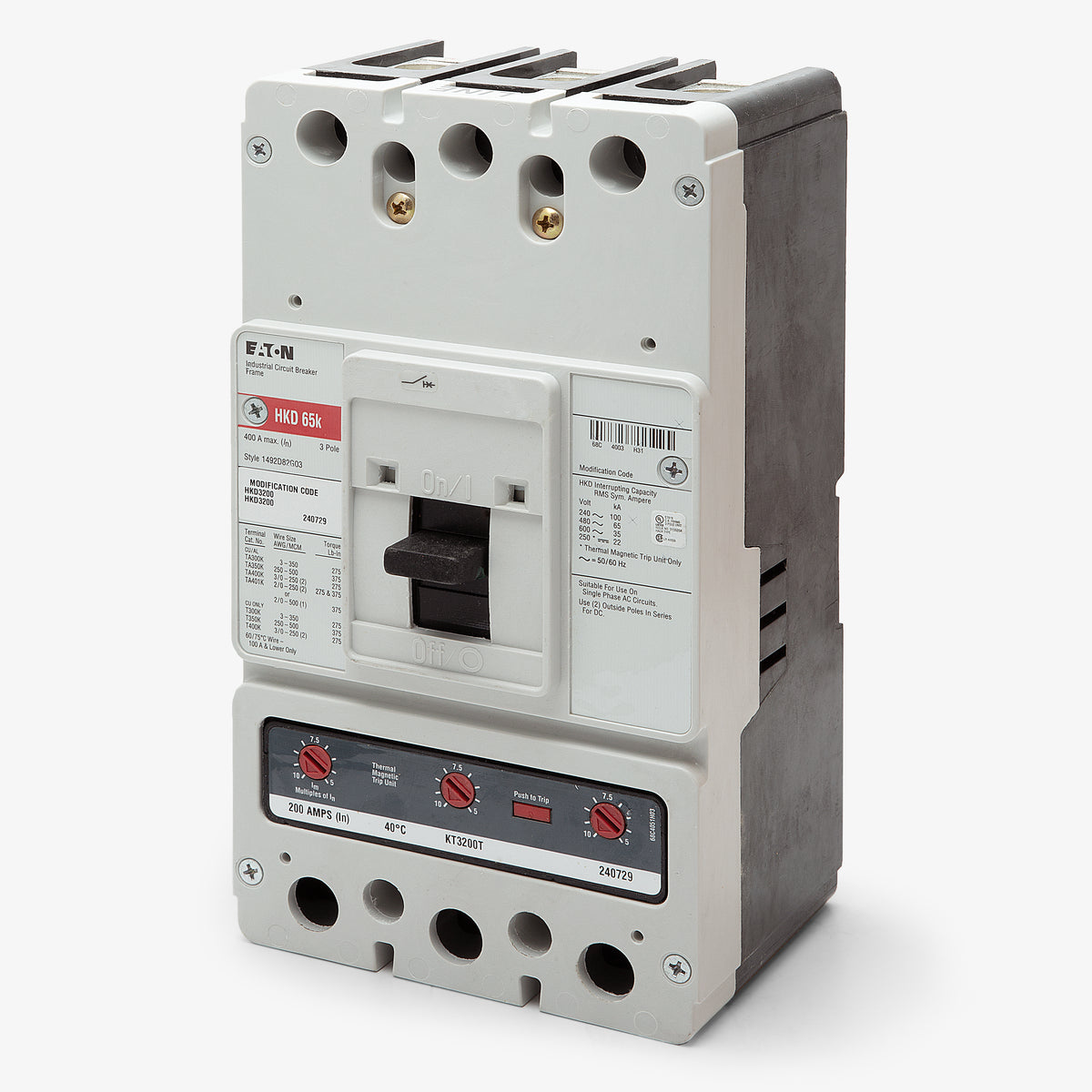

Eaton / Cutler-Hammer HKD3150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
HKD3150
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
HKD3150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer HKD3150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer HKD3150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HKD3150 |
| Series | HKD |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 22kA @ 250VDC |

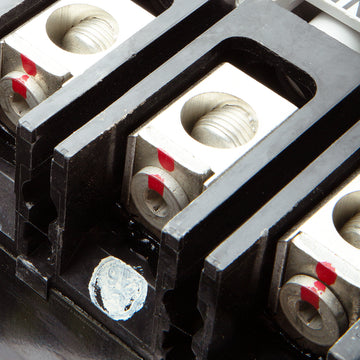

| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 350 kcmil |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed |
Quantity
Eaton / Cutler-Hammer HKD3150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HKD3150-R |
| Series | HKD |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 350 kcmil |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed |
Similar Items
125A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Designed for heavy-duty electrical systems, the Eaton HKD3150 is a 3-pole, 150A molded case circuit breaker. As a core component of the Series C lineup, this K-frame device provides essential long-time and instantaneous protection for industrial facilities. The panel-mounted unit is fully compatible with Eaton switchboards, motor control centers, and panelboards. It provides a straightforward replacement path for legacy KD3150 breakers, minimizing downtime during maintenance.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HKD3150 |
| Series | HKD |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 350 kcmil |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed |
Product FAQs
8 answersCan the HKD3150 replace a legacy Westinghouse HKD3150 breaker?
Yes. Eaton acquired the Westinghouse distribution equipment division. A modern Eaton or Cutler-Hammer HKD3150 is a direct replacement for a legacy Westinghouse breaker with the exact same catalog number.
Are Eaton and Cutler-Hammer HKD3150 breakers the same?
Yes. Eaton manufactures the Series C line and often uses the Cutler-Hammer brand name. Breakers labeled under either name with the HKD3150 catalog number are identical and interchangeable.
What equipment is the HKD3150 compatible with?
This Series C K-frame breaker is designed for installation in Eaton and Cutler-Hammer panelboards, switchboards, and motor control centers.
Can the HKD3150 be installed in an F-frame or J-frame panel space?
No. The HKD3150 is a K-frame circuit breaker. Even though 150A breakers exist in smaller frame sizes, this specific model requires a K-frame mounting space and hardware.
How does the HKD3150 differ from a standard KD3150 breaker?
The HKD3150 is the high-interrupting capacity version of the standard KD frame. It provides a 65kA interrupting rating at 480V, compared to the standard 35kA rating of a KD3150.
What protection is provided by the LI trip function?
The LI designation means the thermal-magnetic trip unit includes Long-Time and Instantaneous protection. The fixed thermal element protects against sustained overloads, while the adjustable magnetic element responds immediately to short circuits.
Does the HKD3150 provide ground fault protection?
No. This breaker features a standard thermal-magnetic trip unit with Long-Time and Instantaneous (LI) functions. It does not include integral ground fault or equipment protection features.
What wire sizes do the standard lugs on this breaker accept?
The standard lug terminals accommodate wire sizes ranging from 3 AWG to 350 kcmil.
