Eaton / Cutler-Hammer HKD3350 Molded Case Circuit Breaker
- 350A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
HKD3350
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
HKD3350
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

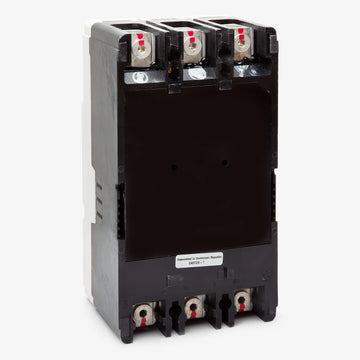

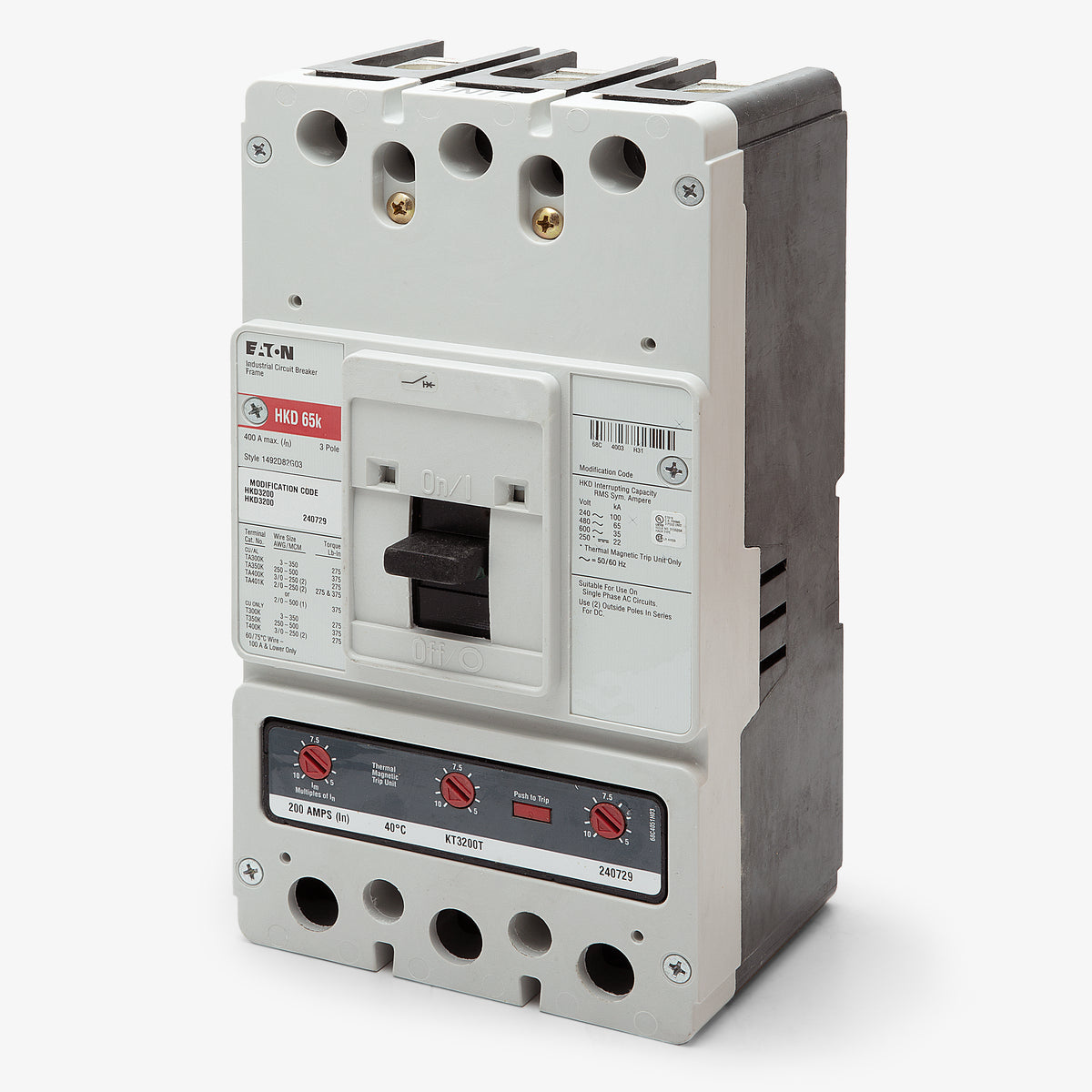

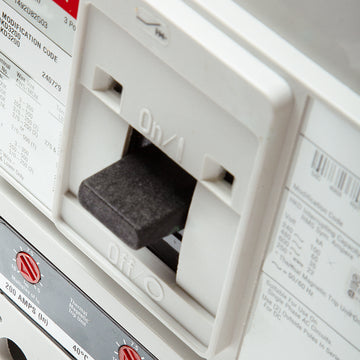

Eaton / Cutler-Hammer HKD3350 - 350A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer HKD3350 - 350A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HKD3350 |
| Series | HKD |
| Amperage | 350A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 22kA @ 250VDC |

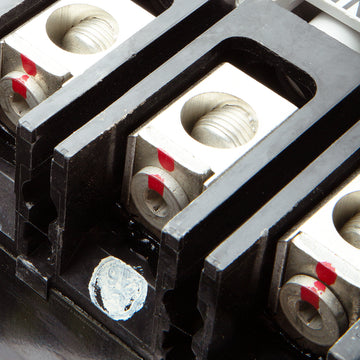

| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 250 kcmil - 500 kcmil |
| Max Wire | 500 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Quantity
Eaton / Cutler-Hammer HKD3350 - 350A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HKD3350-R |
| Series | HKD |
| Amperage | 350A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 250 kcmil - 500 kcmil |
| Max Wire | 500 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Similar Items
300A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, this 350A Series C breaker provides reliable overcurrent protection. The high-interrupting HKD prefix ensures a robust 65kAIC rating at 480V for demanding environments. It installs into Eaton Series C panelboards and switchboards. This unit serves as an upgraded replacement for the standard KD3350, offering enhanced fault handling. It features fixed thermal and adjustable magnetic settings (LI) with lugs accepting 250-500 kcmil wire.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HKD3350 |
| Series | HKD |
| Amperage | 350A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 250 kcmil - 500 kcmil |
| Max Wire | 500 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhat equipment is compatible with the HKD3350?
The HKD3350 is a Series C K-frame breaker designed to mount in Eaton, Cutler-Hammer, and legacy Westinghouse panelboards, switchboards, and motor control centers.
Can the HKD3350 replace a standard KD3350 breaker?
Yes. The HKD3350 shares the exact same physical K-frame dimensions as the KD3350 but offers a higher interrupting capacity (65kAIC versus 35kAIC at 480V). It serves as a direct, upgraded drop-in replacement.
How is the magnetic trip adjusted on the HKD3350?
The breaker features a non-interchangeable thermal-magnetic trip unit with a fixed thermal element and an adjustable magnetic element. The magnetic trip can be dialed between 1750A and 3500A (5 to 10 times the continuous amp rating) to coordinate with motor inrush currents or downstream devices.
Is the HKD3350 suitable for reverse feed installations?
Yes. Eaton K-frame breakers equipped with standard non-interchangeable thermal-magnetic trip units are suitable for reverse feed applications.
Is the HKD3350 HACR rated?
Yes, all Eaton Series C K-frame molded case circuit breakers are HACR rated for use with heating, air conditioning, and refrigeration equipment.
