Eaton / Cutler-Hammer HKD3400K Molded Case Switch
Quantity
Core Specs
See full specs

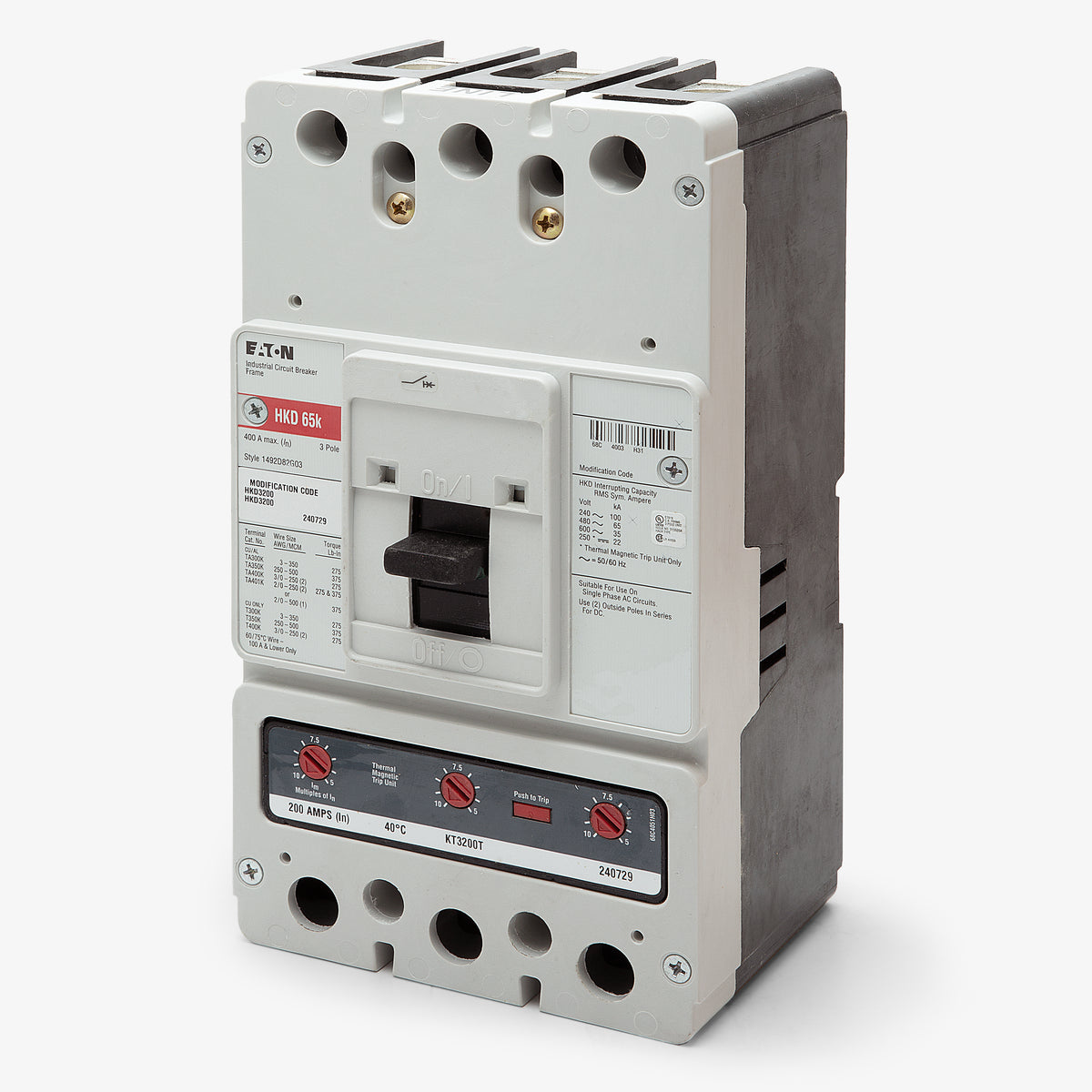

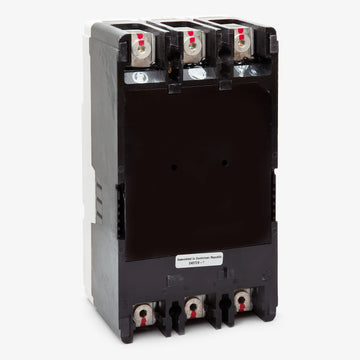

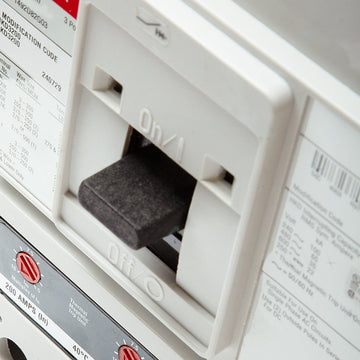

Eaton / Cutler-Hammer HKD3400K - 400A 3 Pole Molded Case Switch
New
Quantity
Description
Rated for 400 amps, this K-Frame molded case switch provides safe and effective circuit isolation for demanding industrial environments. It installs easily into Eaton Series C switchboards and panelboards, serving as a reliable substitute for the discontinued KD3400K.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HKD3400K |
| Series | HKD |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 250 kcmil - 500 kcmil |
| Max Wire | 500 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Magnetic Only |
|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|

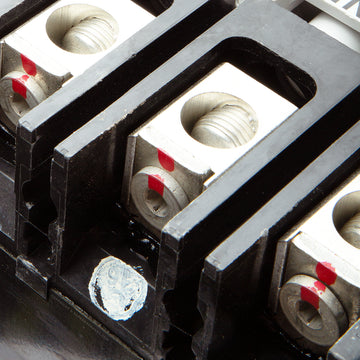

| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Molded Case Switch, High Interrupting Capacity, HACR Rated, Reverse Feed, Interchangeable Trip Unit, High-Magnetic, Trip-Free Mechanism, Quick-Make/Quick-Break |
