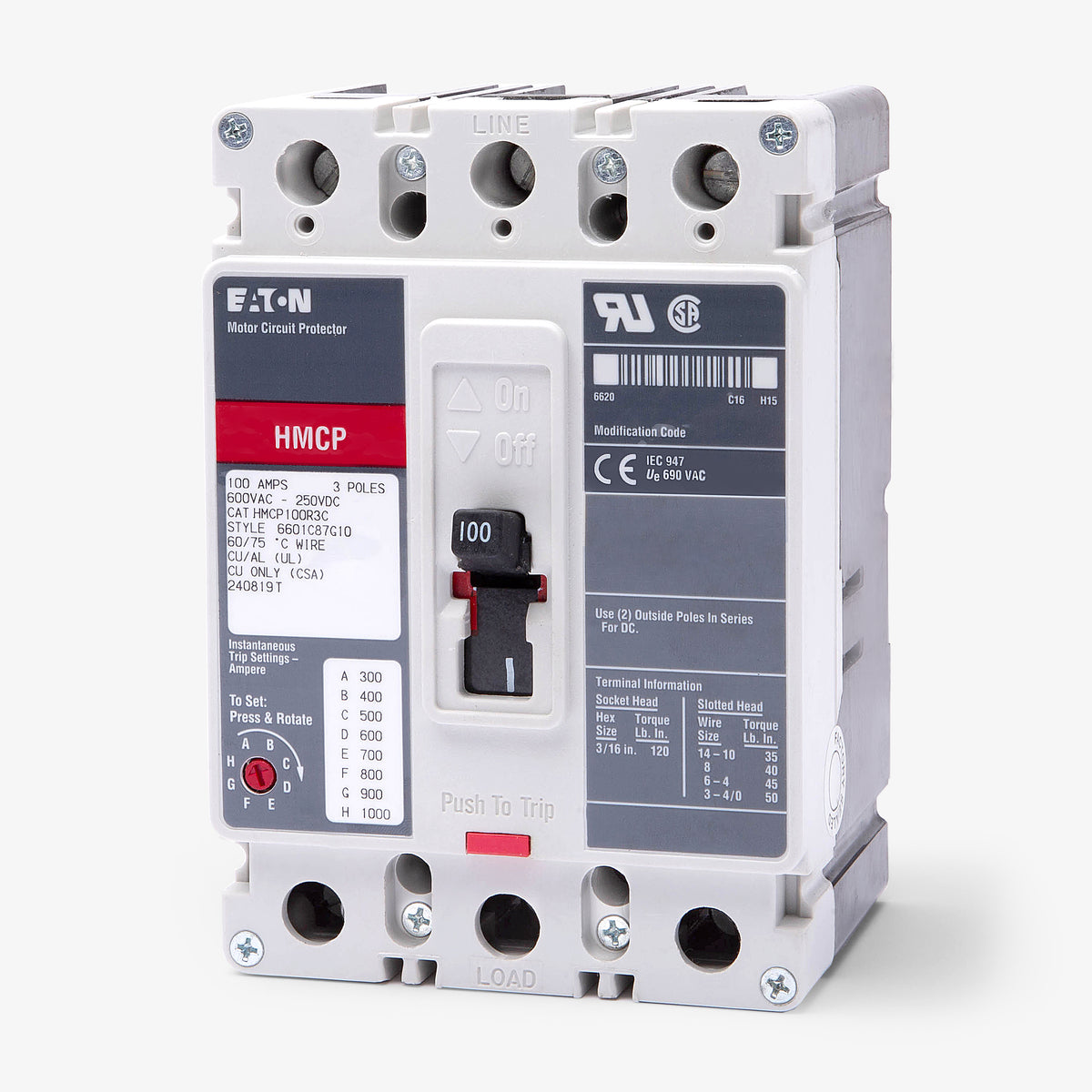

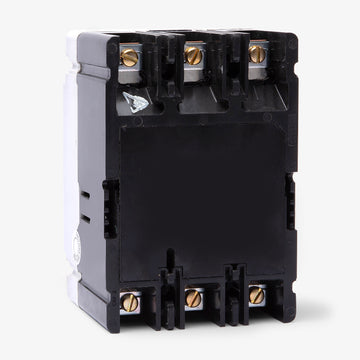

Eaton / Cutler-Hammer HMCP100R3 Motor Circuit Protector
- 100A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
HMCP100R3
Motor Circuit Protector
Brand
Eaton / Cutler-Hammer
SKU
HMCP100R3
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer HMCP100R3 - 100A 3 Pole Motor Circuit Protector
New
Quantity
Quantity
Eaton / Cutler-Hammer HMCP100R3 - 100A 3 Pole Motor Circuit Protector
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HMCP100R3 |
| Series | HMCP |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Amperage Range | 300-1000A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C F-Frame Motor Starters, Motor Control Centers |
| Wire Gauge | 14 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|

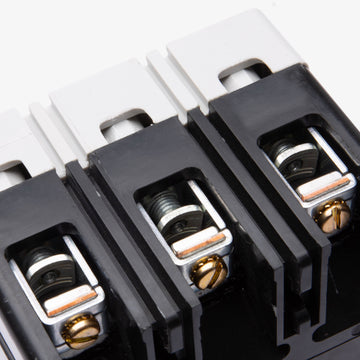

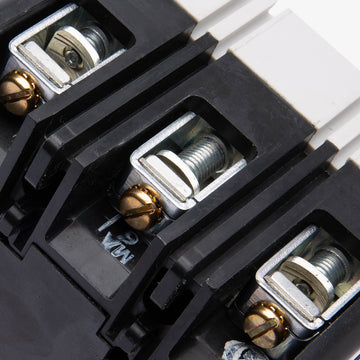

| Accessories | Line and Load Lugs Included (3T100FB) |
| Standards | CSA C22.2 No. 5.1, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
Quantity
Eaton / Cutler-Hammer HMCP100R3 - 100A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HMCP100R3-R |
| Series | HMCP |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Amperage Range | 300-1000A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C F-Frame Motor Starters, Motor Control Centers |
| Wire Gauge | 14 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included (3T100FB) |
| Standards | CSA C22.2 No. 5.1, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
Similar Items
Eaton / Cutler-HammerHMCP100L3
100A 3 Pole Motor Circuit Protector
Eaton / Cutler-HammerHMCP100R3C
100A 3 Pole Motor Circuit Protector
Eaton / Cutler-HammerHMCP050G2C
50A 3 Pole Motor Circuit Protector
Description
Rated 65 kAIC at 480V, the Eaton HMCP100R3 delivers magnetic-only protection designed specifically for motor branch circuits. By omitting the thermal trip element, it focuses entirely on interrupting high-level short circuits in industrial settings. The 3-pole unit integrates into Eaton Series C F-Frame motor starters and control centers. It utilizes a standard unit mount configuration with included lugs for reliable connections.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HMCP100R3 |
| Series | HMCP |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Amperage Range | 300-1000A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C F-Frame Motor Starters, Motor Control Centers |
| Wire Gauge | 14 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included (3T100FB) |
| Standards | CSA C22.2 No. 5.1, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
