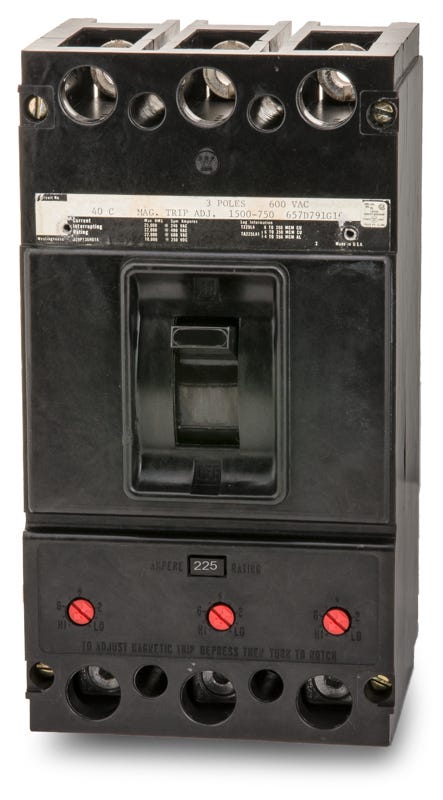

Eaton / Cutler-Hammer JA3225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
JA3225
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
JA3225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer JA3225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
175A 3 Pole Molded Case Circuit Breaker

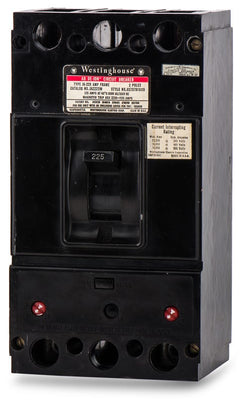

225A 2 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the Eaton JA3225 delivers thermal-magnetic protection with long-time and instantaneous trip functions. This 225A, three-pole molded case circuit breaker mounts into legacy Westinghouse panelboards, switchboards, and motor control centers. Featuring a 25kAIC rating at 240VAC and an adjustable magnetic trip, it offers robust performance for demanding environments. It serves as an effective replacement for JD3225 and JDB3225 models.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | JA3225-R |
| Series | JA |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit, High Interrupting Capacity |
Product FAQs
6 answersWhich panelboards are compatible with the JA3225 circuit breaker?
This breaker is designed to mount into legacy Westinghouse and Cutler-Hammer enclosures, including CDP panelboards, FDP switchboards, and compatible motor control centers.
Is the Cutler-Hammer JA3225 still in active production?
No, the JA3225 is an obsolete legacy J-Frame molded case circuit breaker. It is utilized to maintain existing Westinghouse electrical infrastructure without requiring a complete system retrofit.
What frame family does the JA3225 belong to?
It is part of the legacy Westinghouse J-Frame family, specifically the AB De-Ion series. It shares the same physical footprint as other classic J-Frame breakers, allowing for direct bolt-on replacement in existing setups.
How is the trip unit configured on the JA3225?
It utilizes a thermal-magnetic trip unit featuring a fixed thermal element for long-time overload protection and an adjustable magnetic element, allowing electricians to fine-tune the instantaneous short-circuit response.
What wire sizes are accepted by the terminals on this breaker?
The standard mechanical lugs on the JA3225 accept aluminum or copper conductors ranging from 4 AWG to 350 kcmil. Ensure proper torque specifications are followed during installation.
How does the JA3225 connect to the panel bus?
It features a bolt-on mounting configuration. The breaker bolts directly to the panelboard bus, providing a secure, high-amperage connection suitable for demanding commercial and industrial environments.
