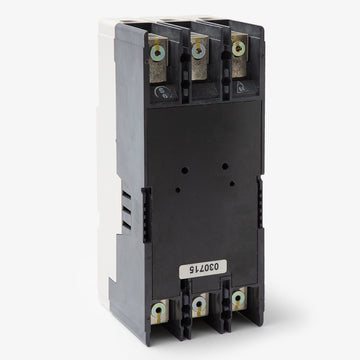

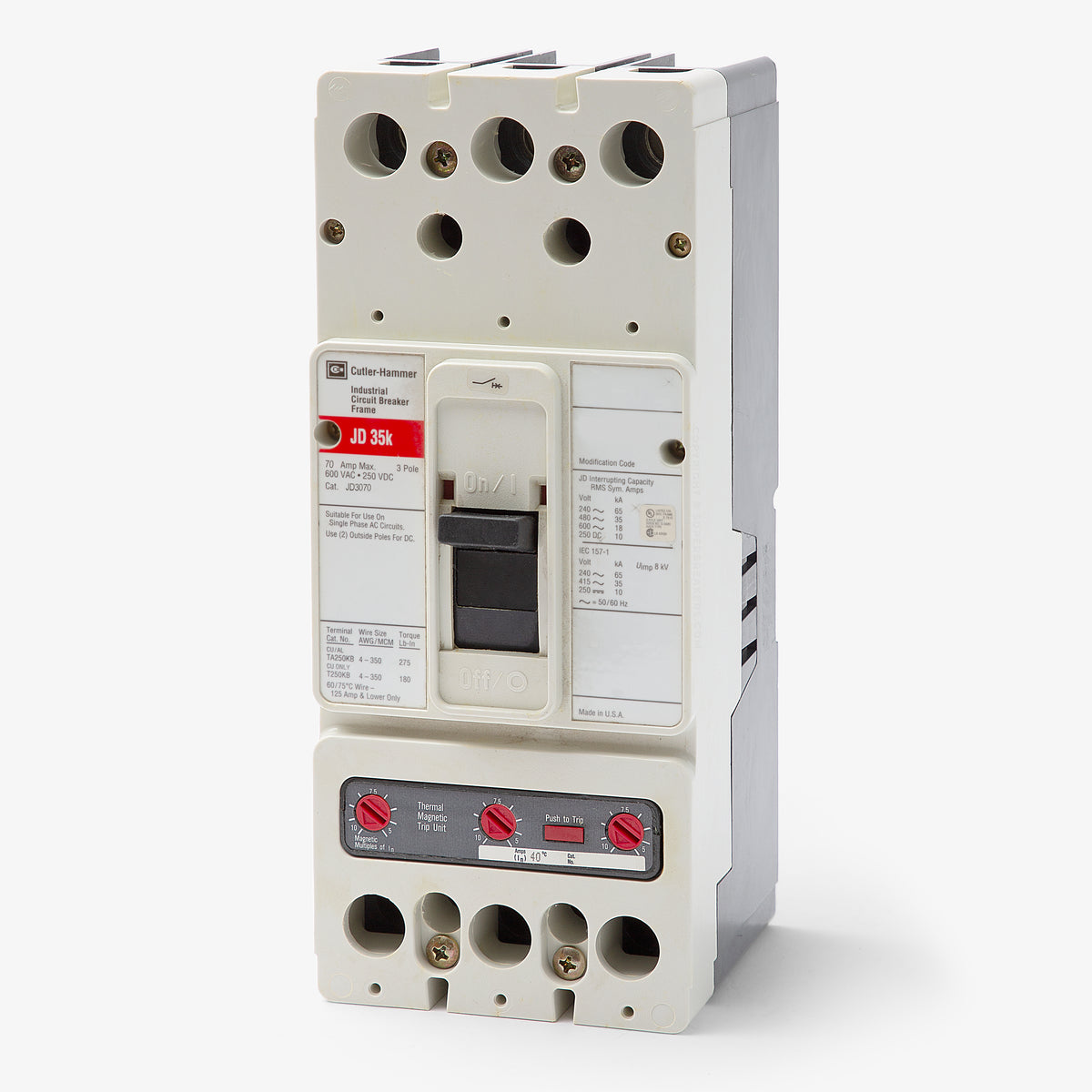

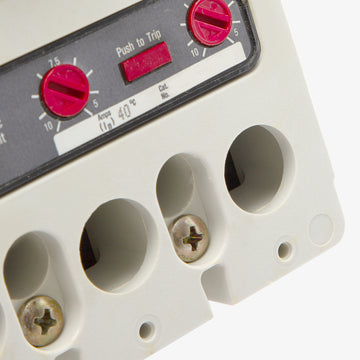

Eaton / Cutler-Hammer JD3070 Molded Case Circuit Breaker
- 70A
- 3 Pole
- Unit Mount
Quantity
Eaton / Cutler-Hammer JD3070 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Designed for industrial power distribution, the Eaton JD3070 is a 3-pole, 70A molded case circuit breaker. It delivers proven thermal-magnetic protection for commercial facilities and manufacturing plants. This unit-mount MCCB is engineered to fit into Eaton Series C and Pow-R-Line C panelboards, as well as compatible switchboards. It provides a replacement path to the newer Power Defense PDG3 line. With a 35 kAIC interrupt capacity at 480VAC, it features an interchangeable trip unit.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | JD3070 |
| Series | JD |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |

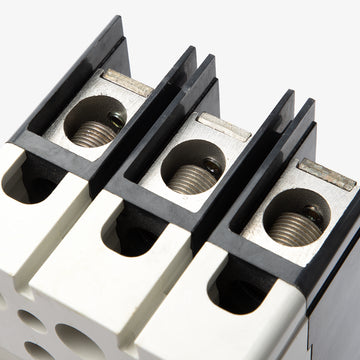

| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers, Pow-R-Line C Panelboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
7 answersWhat enclosures and panelboards are compatible with the JD3070?
This breaker is designed for use in Eaton Series C Panelboards, Switchboards, Motor Control Centers, and Pow-R-Line C Panelboards.
Can the JD3070 replace older Westinghouse J-frame breakers?
Yes, Eaton acquired the Westinghouse distribution equipment line. The JD3070 is a direct replacement for legacy Westinghouse and Cutler-Hammer J-frame breakers with the same specifications.
What lug kit is standard for this breaker, and what wire sizes does it accept?
The standard lug terminal kit is the TA250KB, which accepts aluminum or copper wire ranging from 4 AWG to 350 kcmil.
Is the JD3070 suitable for reverse-feed applications?
Yes, this thermal-magnetic breaker does not have line and load markings, making it suitable for reverse-feed operations.
Is this breaker HACR rated for HVAC applications?
Yes, the JD3070 is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
Can I adjust the trip settings on the JD3070?
No, this breaker features a fixed thermal and fixed magnetic trip unit, meaning the overcurrent and short-circuit trip points cannot be adjusted in the field.
Does the JD3070 provide ground fault protection?
No, this is a standard thermal-magnetic breaker providing long-time and instantaneous (LI) overcurrent and short-circuit protection. It does not include integral ground fault or electronic trip functions.
