Eaton / Cutler-Hammer JDB3225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
JDB3225
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
JDB3225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

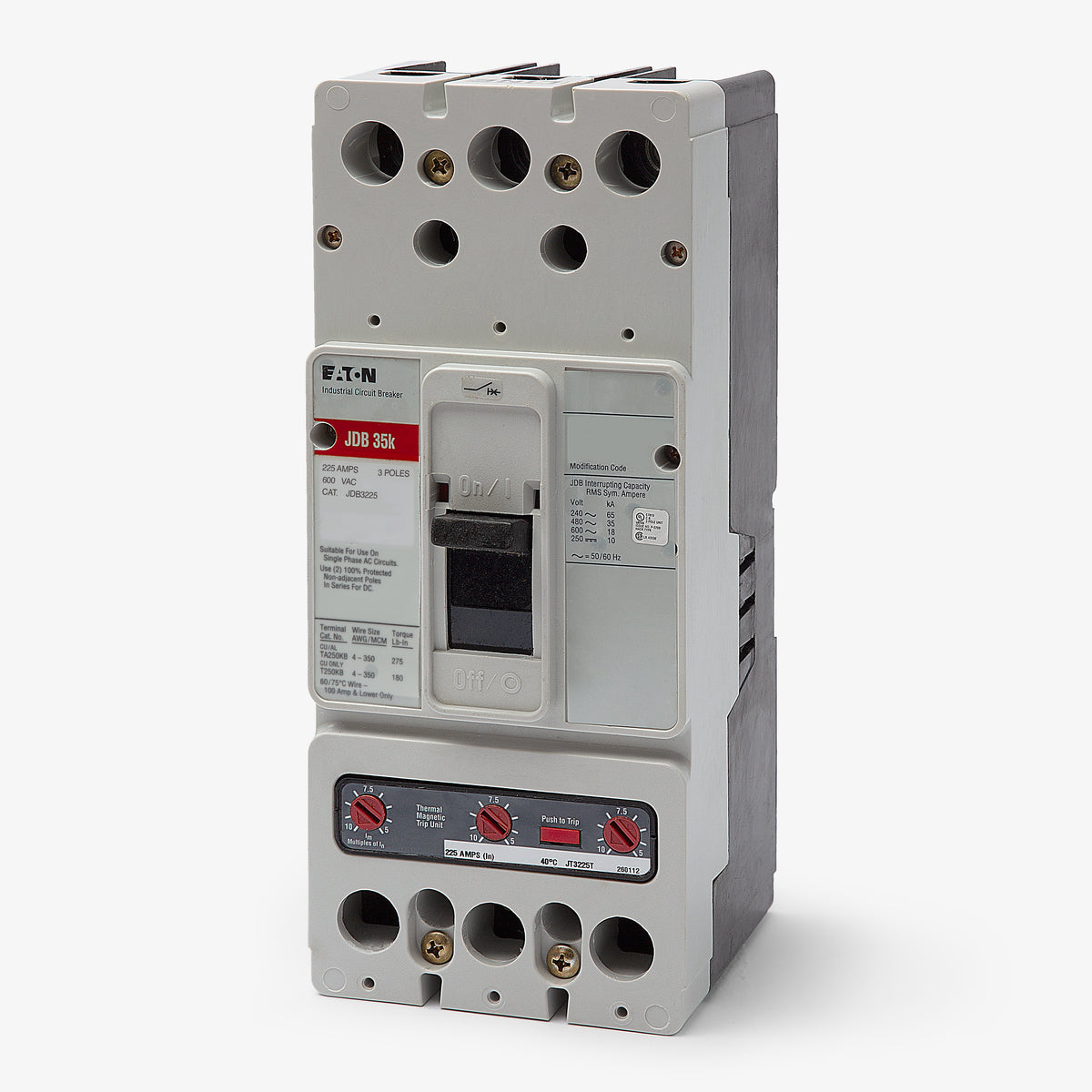

Eaton / Cutler-Hammer JDB3225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
200A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Designed for high-capacity industrial systems, the Eaton JDB3225 operates as a 225A, 3-pole molded case circuit breaker within the trusted Series C family. It ensures reliable power management and overcurrent defense for commercial applications. This J-Frame breaker mounts into standard Eaton switchboards, motor control centers, and panelboards. It provides a drop-in replacement solution for legacy JD3225 and HJD3225 breakers, simplifying maintenance and facility upgrades.Specifications

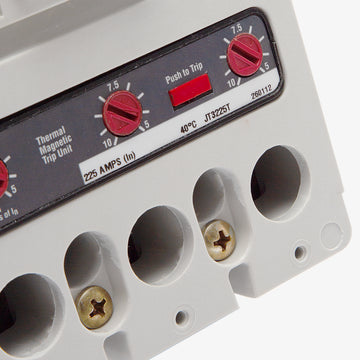

| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | JDB3225 |
| Series | JDB |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Mechanism |
|---|---|
| Accessories | Line and Load Lugs Included (TA250KB) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
8 answersWhat is the difference between the Eaton JD3225 and the JDB3225?
The JDB3225 is identical to the standard JD3225, but the B suffix designates it is suitable for reverse-feed applications. It features no line and load labeling, and the thermal-magnetic trip unit is factory-sealed to the breaker frame.
What equipment is compatible with the JDB3225?
This Series C J-Frame breaker mounts directly into standard Eaton panelboards, switchboards, motor control centers, and industrial enclosures.

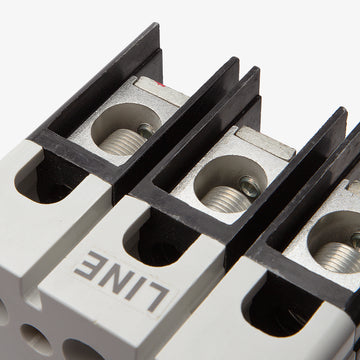

What lug kit is standard for the JDB3225, and what wire sizes does it accept?
The standard line and load lug kit is the TA250KB. It accepts aluminum or copper wire ranging from 4 AWG to 350 kcmil.
Can the trip unit on the JDB3225 be swapped or upgraded in the field?
No. Because the JDB3225 is rated for reverse-feed applications, the thermal-magnetic trip unit is factory-sealed to the frame and is non-interchangeable.
Can the JDB3225 be used to replace older Westinghouse or Cutler-Hammer breakers?
Yes, the JDB3225 is a direct drop-in replacement for legacy Cutler-Hammer and Westinghouse JD3225 and HJD3225 circuit breakers.
What does the LI trip function code indicate on this breaker?
The LI code means the breaker provides Long-Time (thermal) and Instantaneous (magnetic) trip functions for standard overload and short-circuit protection. Both settings are fixed on this specific model.
Is the JDB3225 rated for DC voltage applications?
Yes, in addition to its AC ratings, this breaker is rated for up to 250VDC with an interrupting capacity of 10kA, making it suitable for specific DC control circuits or battery systems.
Why are there no line and load markings on the JDB3225?
The absence of line and load markings indicates the breaker is approved for reverse-feed installations, allowing power to be supplied to either the top or bottom terminals safely without violating code.
