Eaton / Cutler-Hammer JDC3150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
JDC3150
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
JDC3150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer JDC3150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
125A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Delivering 150 amps of continuous current capacity, the Eaton JDC3150 serves as a 3-pole Series C molded case circuit breaker. It provides essential thermal-magnetic protection for heavy-duty commercial and industrial electrical distribution systems. This J-Frame breaker mounts into Eaton Series C panelboards, motor control centers, and compatible legacy Westinghouse enclosures.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | JDC3150 |
| Series | JDC |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 35kA @ 600VAC, 22kA @ 250VDC |

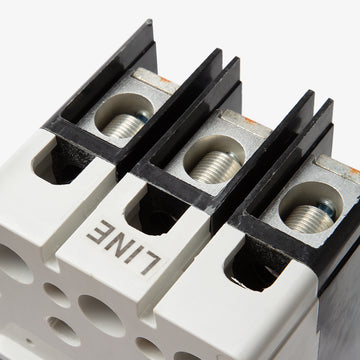

| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers, Legacy Westinghouse Panelboards |
| Wire Gauge | 8 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed |
Product FAQs
6 answersWhat enclosures and panels are compatible with the JDC3150?
This breaker is designed for use in Eaton Series C panelboards, switchboards, motor control centers, and legacy Westinghouse panelboards that accept J-frame breakers.
Can the JDC3150 replace older Westinghouse JD or HJD breakers?
Yes, the JDC3150 is part of the Series C J-frame family and shares the same physical dimensions as JD3150 and HJD3150 breakers. It can be used as a direct replacement, offering a higher interrupting capacity.
What does the C in the JDC3150 frame designation indicate?
The C indicates it is the ultra-high interrupting capacity version of the J-frame, rated to safely interrupt up to 100kA at 480VAC and 200kA at 240VAC.
Is the JDC3150 suitable for reverse-feed applications?
Yes, this breaker is suitable for reverse-fed applications, making it versatile for use as a main breaker or in back-fed scenarios within a panel.
Can the trip unit on the JDC3150 be replaced or upgraded?
Yes, the JDC3150 features an interchangeable trip unit design. This allows panel builders to swap the thermal-magnetic trip unit if different protection parameters are required in the future without replacing the entire breaker frame.
How do I adjust the magnetic trip settings on the JDC3150?

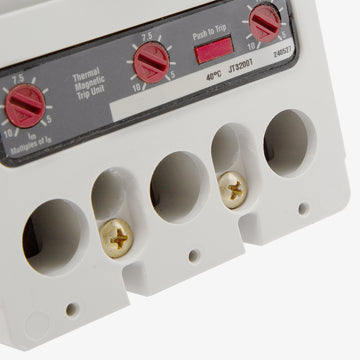

The JDC3150 includes an adjustable magnetic trip function. Electricians can use the adjustment dials on the face of the trip unit to fine-tune the instantaneous short-circuit pickup levels based on the specific load requirements.
