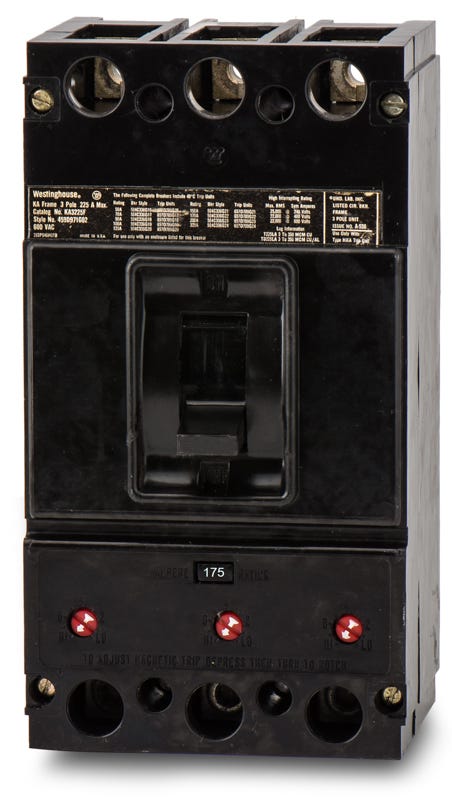

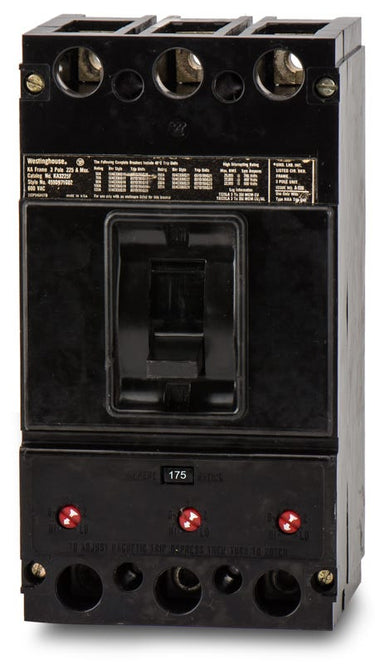

Eaton / Cutler-Hammer KA3175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Bolt-On
Quantity
Eaton / Cutler-Hammer KA3175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Maintaining aging electrical infrastructure requires exact matches, and the Eaton KA3175 delivers as a 3-pole, 175A legacy molded case circuit breaker. It provides essential long-time and instantaneous protection for 600VAC commercial distribution networks. This K-Frame breaker bolts into classic Westinghouse CDP panels and motor control centers. Facilities upgrading to the KD3175 equivalent must utilize a TAD3 spacer kit. With a 22kAIC rating at 480V, it safely handles industrial faults.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | KA3175-R |
| Series | KA |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse / Cutler-Hammer Pow-R-Line C Panelboards, CDP Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit |
Product FAQs
5 answersWhat is the modern replacement for the obsolete KA3175 circuit breaker?
The direct modern replacement is the Eaton Series C KD3175. However, because the KD frame has a different terminal tang height than the legacy KA frame, you must install a TAD3 spacer kit on the line side to properly mount the KD breaker in older panelboards.
What does the LI trip function indicate on this breaker?
The LI code means the thermal-magnetic trip unit provides Long-Time (L) overload protection and Instantaneous (I) short-circuit protection. The thermal element is fixed, while the magnetic trip threshold is adjustable to help coordinate with specific load inrush currents.
Which panelboards are compatible with the KA3175?
This bolt-on K-frame breaker is designed to mount in legacy Westinghouse and Cutler-Hammer Pow-R-Line C panelboards, CDP panelboards, switchboards, and motor control centers.
What wire sizes are supported by the standard lugs on the KA3175?
The standard lugs accept 4 AWG to 350 kcmil conductors and are rated for both aluminum and copper (Al/Cu) wiring.
What safety checks are recommended when installing a replacement KA3175?
After de-energizing the equipment, inspect the existing panelboard bus for signs of thermal damage, pitting, or corrosion before bolting in the replacement breaker. Ensure all lug and bus connections are torqued to the manufacturer specifications.
