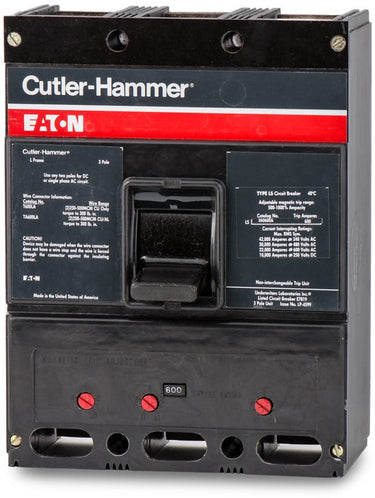

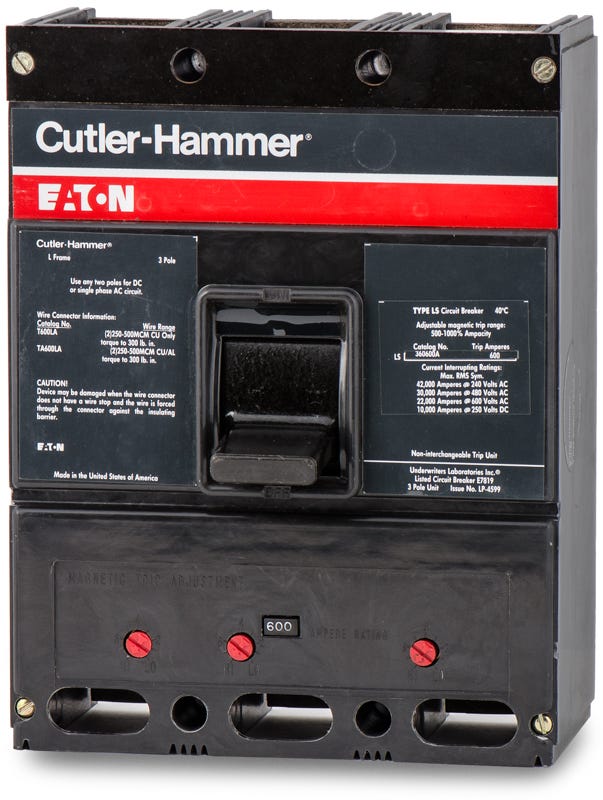

Eaton / Cutler-Hammer LS360600A Molded Case Circuit Breaker
- 600A
- 3 Pole
- Panel Mount
Quantity
Eaton / Cutler-Hammer LS360600A - 600A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Designed to protect heavy commercial circuits, the Eaton LS360600A is a 600-amp, 3-pole molded case circuit breaker. It utilizes proven thermal-magnetic technology with adjustable magnetic settings. This Series C MDS-Frame device is configured for panel mounting in Cutler-Hammer switchboards, MCCs, and distribution panels. While a staple for maintaining existing infrastructure, the LD3600 is its modern replacement. With a 65kAIC capacity at 240V, it safely clears high-level electrical faults.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | LS360600A-R |
| Series | LS |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Cutler-Hammer Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | (2) #2 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | #2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat equipment is the Eaton LS360600A designed to be installed in?
This Series C breaker is configured for panel mounting in Cutler-Hammer panelboards, switchboards, and motor control centers (MCCs).
What are the wire size requirements for the LS360600A lugs?
The standard lugs accommodate dual conductors per phase, accepting #2 AWG to 500 kcmil aluminum or copper wire.
Are the trip settings on the LS360600A adjustable?
No, this specific model features a thermal-magnetic trip unit with fixed long-time and fixed instantaneous (LI) settings.
What is the recommended modern replacement for the LS360600A?
The Eaton LD3600 is the direct modern replacement within the Series C family, designed to maintain existing infrastructure while matching the 600A rating.
Is the LS360600A suitable for direct current (DC) systems?
Yes, this breaker is rated for use in 250VDC applications, providing a 22kA interrupting capacity for DC circuits.
Does the LS360600A provide both overload and short-circuit protection?
Yes, the thermal-magnetic LI trip unit provides fixed long-time response for standard overload protection and fixed instantaneous response to clear short-circuit faults.
