Eaton / Cutler-Hammer MCP03150CR Motor Circuit Protector
- 15A
- 3 Pole
- Unit Mount
Quantity

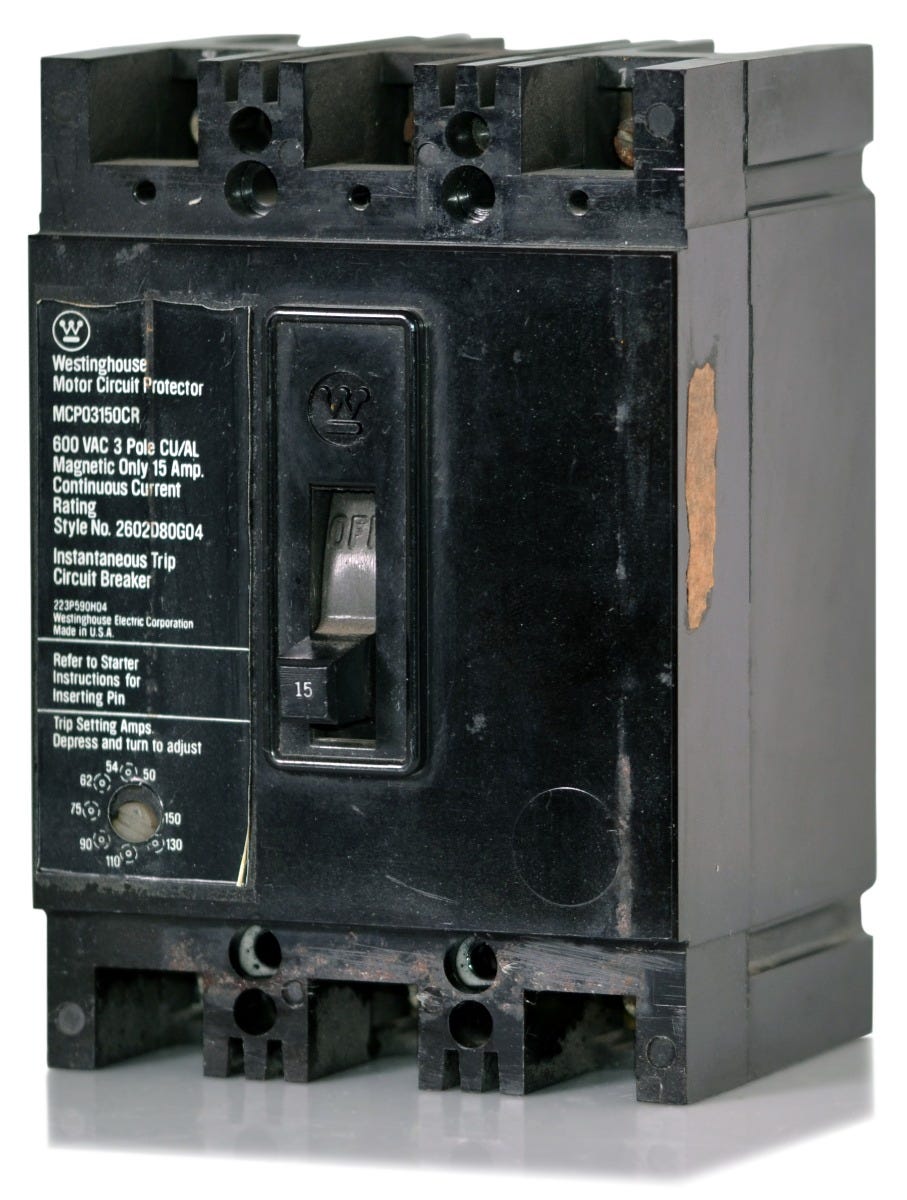

Eaton / Cutler-Hammer MCP03150CR - 15A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
Description
A direct replacement for legacy systems, the Eaton MCP03150CR is a 3-pole, 15A motor circuit protector. It delivers short-circuit defense for industrial applications and is replaced by the HMCP015E0C. The unit-mount device installs into Eaton and Westinghouse motor control centers and Freedom Series starters, utilizing copper lugs for 14-1/0 AWG wire. Featuring an adjustable magnetic-only trip between 50A and 150A, it provides a 100kAIC rating at 240VAC for robust current-limiting performance.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | MCP03150CR |
| Series | MCP |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Amperage Range | 15A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton / Westinghouse Motor Control Centers, Freedom Series Starters |
| Wire Gauge | 14-1/0 AWG (Cu Only) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included, Copper Lugs Included |
| Standards | CSA C22.2 No. 5.1, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL, UR |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector |
