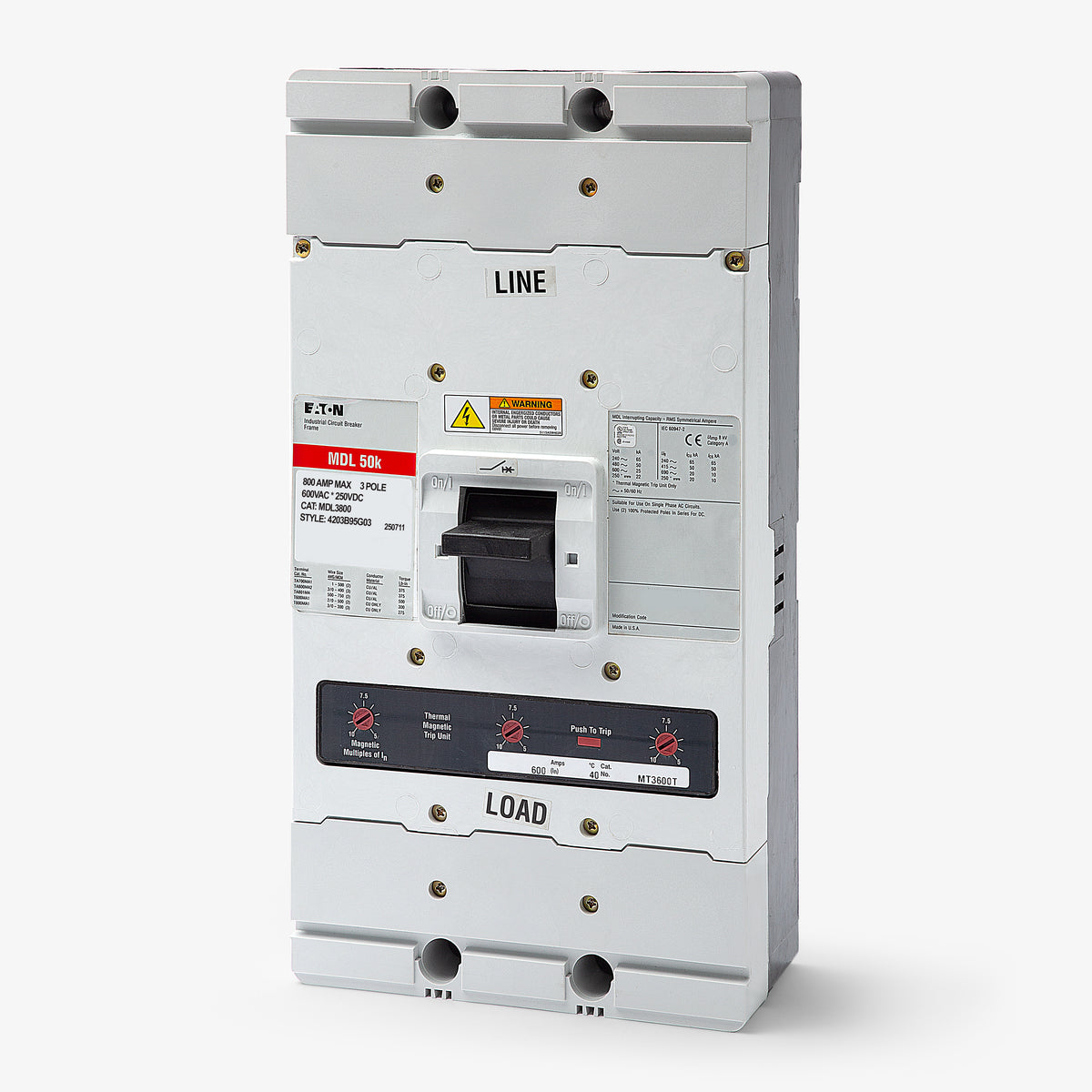

Eaton / Cutler-Hammer MDL3800 Molded Case Circuit Breaker
- 800A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
MDL3800
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
MDL3800
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer MDL3800 - 800A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer MDL3800 - 800A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | MDL |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 50kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | MDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | (3) 3/0 AWG - 400 kcmil (Al/Cu) |
| Max Wire | 400 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Terminal Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit, HACR Rated, Reverse Feed |
Quantity
Eaton / Cutler-Hammer MDL3800 - 800A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | MDL |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 50kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | MDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | (3) 3/0 AWG - 400 kcmil (Al/Cu) |
| Max Wire | 400 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Terminal Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit, HACR Rated, Reverse Feed |
Similar Items
600A 3 Pole Molded Case Circuit Breaker
500A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
Description
A robust solution for heavy-duty applications, the Eaton MDL3800 is an 800A, three-pole molded case circuit breaker. It provides reliable long-time and instantaneous protection for commercial and industrial electrical systems. This unit-mount breaker fits into Series C panelboards, switchboards, and motor control centers. It includes standard line and load lugs for secure connections. With a 50kAIC rating at 480VAC, it features an interchangeable thermal-magnetic trip and HACR certification.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | MDL |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 50kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | MDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | (3) 3/0 AWG - 400 kcmil (Al/Cu) |
| Max Wire | 400 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Terminal Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit, HACR Rated, Reverse Feed |
Product FAQs
5 answersWhat enclosures or equipment are compatible with the MDL3800?
This Series C M-Frame breaker is designed for installation in Eaton Series C panelboards, switchboards, and motor control centers.

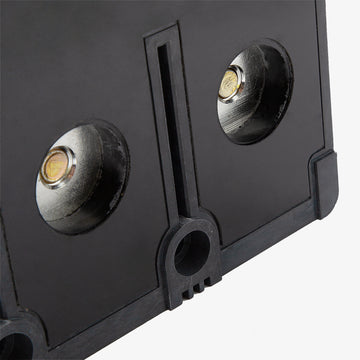

What wire size and material do the standard lugs accept?

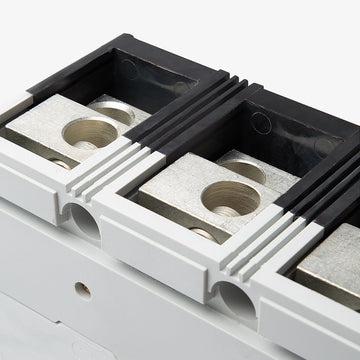

The factory lugs accept three conductors per phase. They are rated for both aluminum and copper wire (Al/Cu) ranging from 3/0 AWG to 400 kcmil.
Are the trip functions field-adjustable on this breaker?
No, this model features a thermal-magnetic trip unit with fixed thermal and fixed magnetic settings. It provides non-adjustable long-time and instantaneous (LI) protection.
Can the trip unit be replaced on the MDL3800?
Yes, this breaker utilizes an interchangeable frame design. The factory-installed MT3800T thermal-magnetic trip unit can be removed and replaced if different protection parameters are required.
What is the standard replacement lug kit for the 800A MDL breaker?
The standard factory replacement terminal kit for 800A MDL and HMDL circuit breakers is part number TA800MA2.
