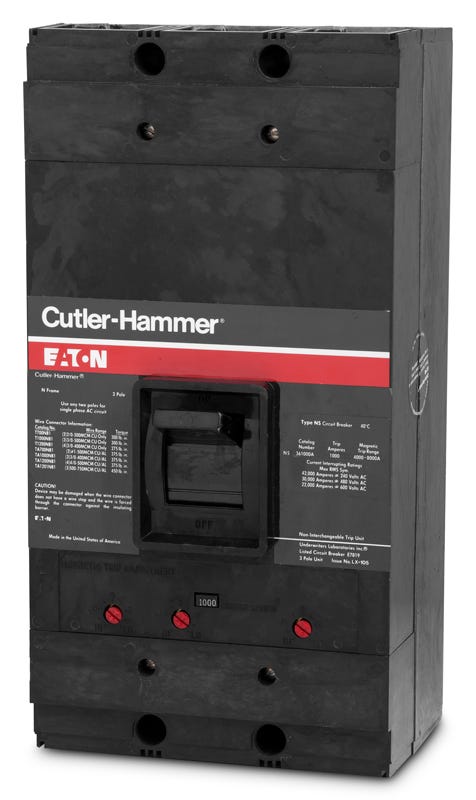

Eaton / Cutler-Hammer NS361000A Molded Case Circuit Breaker
- 1000A
- 3 Pole
- Unit Mount
Quantity
Eaton / Cutler-Hammer NS361000A - 1000A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Built for heavy-duty industrial applications, the Eaton NS361000A is a 3-pole, 1000A molded case circuit breaker. It provides robust power distribution across 240V, 480V, and 600V systems. This unit mount breaker installs into Eaton Series C panelboards, switchboards, and motor control centers. It serves as a direct replacement for the legacy ND31000. Featuring a thermal magnetic trip unit with adjustable magnetic settings (LI), it delivers a standard interrupting capacity of 65kA at 240V.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | NS |
| Amperage | 1000A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 30kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | (3) 3/0 AWG-500 kcmil |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Standard Interrupting Capacity, HACR Rated, Reverse Feed |
Product FAQs
4 answersWhat equipment is the NS361000A designed to fit?
This unit mount breaker installs directly into Eaton Series C panelboards, switchboards, and motor control centers.
Can the NS361000A replace older legacy circuit breakers?
Yes, this Series C breaker serves as a direct replacement for the legacy ND31000, allowing you to upgrade without modifying your existing enclosure.
How many conductors per phase can the NS361000A lugs accommodate?
The terminal lugs are designed to accept three conductors per phase, supporting wire sizes from 3/0 AWG to 500 kcmil.
How does the adjustable magnetic trip function work on the NS361000A?
The thermal magnetic trip unit features a fixed thermal element for overload protection and an adjustable magnetic element. This allows electricians to fine-tune the instantaneous short-circuit response to match specific system requirements.
