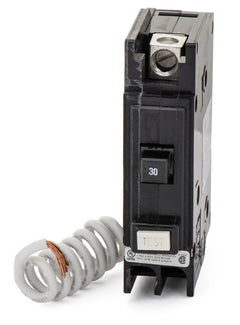

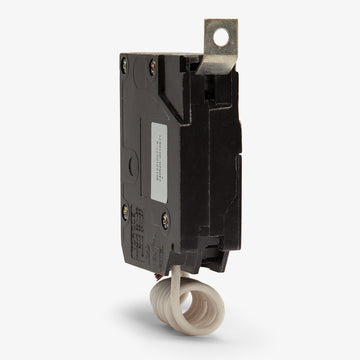

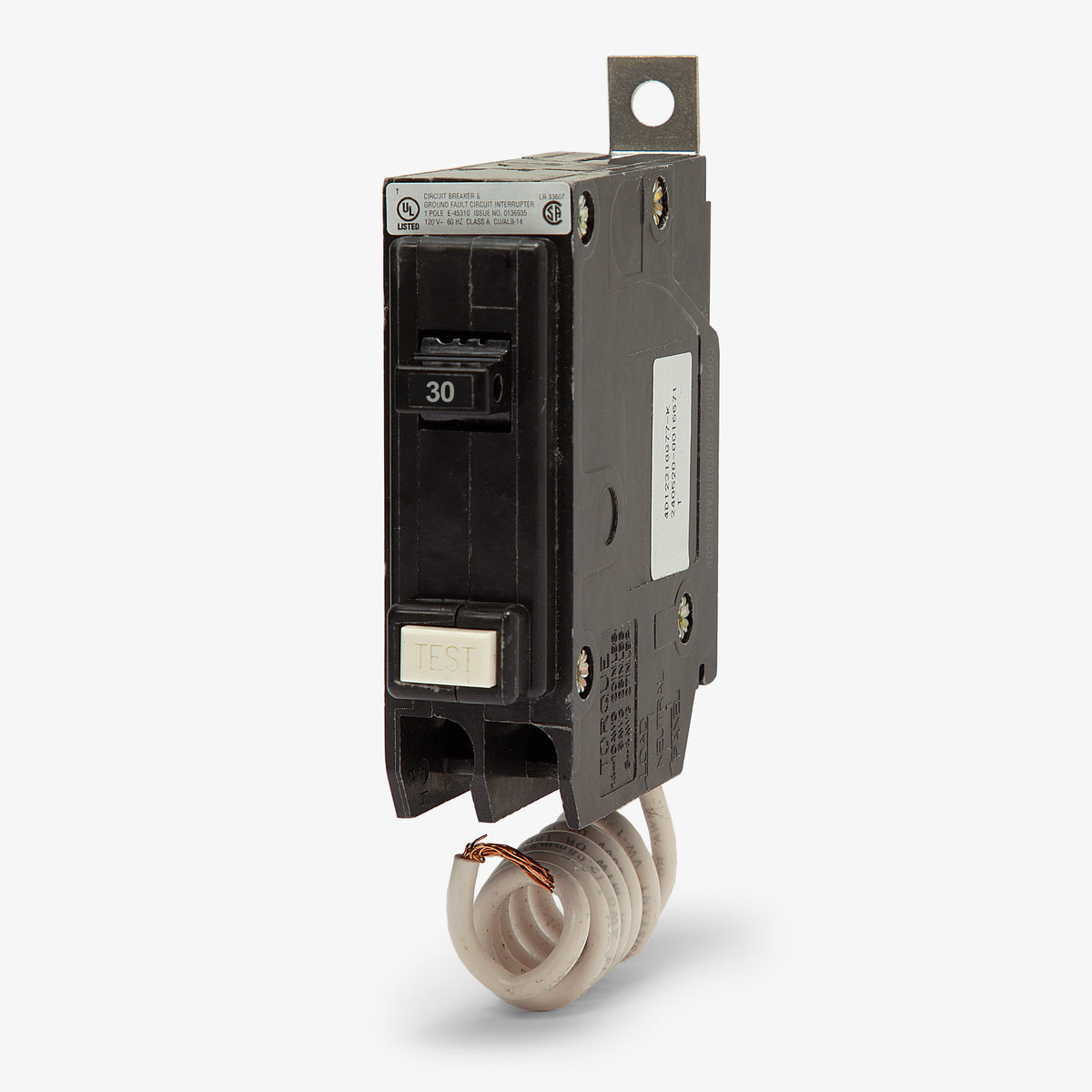

Eaton / Cutler-Hammer QBGF1030 GFCI Miniature Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
QBGF1030
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBGF1030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QBGF1030 - 30A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer QBGF1030 - 30A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBGF1030 |
| Series | QBGF |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Eaton Quicklag Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Non-Interchangeable Trip |
| Standards | HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Sold out
Quantity
Eaton / Cutler-Hammer QBGF1030 - 30A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBGF1030-R |
| Series | QBGF |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Eaton Quicklag Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Non-Interchangeable Trip |
| Standards | HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Similar Items
15A GFCI Miniature Circuit Breaker
30A GFCI Miniature Circuit Breaker
30A GFCI Miniature Circuit Breaker
Description
Built for commercial and industrial applications, the Eaton QBGF1030 delivers reliable ground fault protection with a 5mA trip sensitivity. This 1-pole, 30A miniature breaker features a thermal-magnetic trip mechanism and is HACR rated for HVAC equipment. It mounts into Eaton Pow-R-Line and Quicklag panelboards using a secure bolt-on connection. Rated at 10 kAIC at 120VAC, it ensures strict NEC compliance for wet or damp locations. Note: This model is replaced by the QBGFT1030.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBGF1030 |
| Series | QBGF |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Eaton Quicklag Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Non-Interchangeable Trip |
| Standards | HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the QBGF1030?
This bolt-on breaker is designed for use in Eaton Pow-R-Line and Quicklag panelboards. It requires a bolted connection to the bus and will not fit standard residential plug-on load centers.
What level of ground fault protection does this breaker provide?
It features a 5mA trip sensitivity, which classifies it as a Class A GFCI device intended for personnel protection against electrical shock.

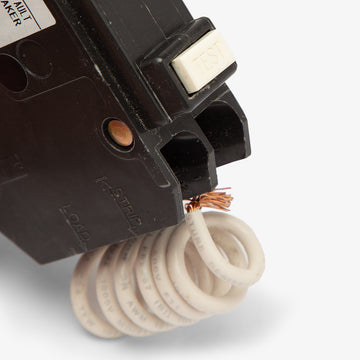

How is the neutral connection established for this GFCI breaker?
It is equipped with a pigtail neutral wire. This wire must be routed and secured to the neutral bar in the panelboard for the ground fault circuitry to function correctly.
Can the QBGF1030 be used interchangeably with Eaton BR or CH series breakers?
No. The QBGF series utilizes a bolt-on mounting configuration with an extended tang line terminal. It is not compatible with panels designed for plug-on BR or CH breakers.
What does the LIG trip function code indicate on this model?
The LIG code means the breaker provides Long-Time thermal protection for overloads, Instantaneous magnetic protection for short circuits, and Ground-Fault protection for personnel safety.

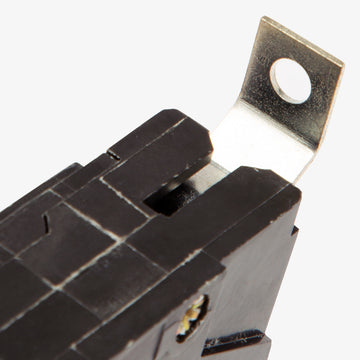

What type of line connection does this breaker use?
It features an extended tang line terminal designed for a secure, bolted connection directly to the panelboard bus.
