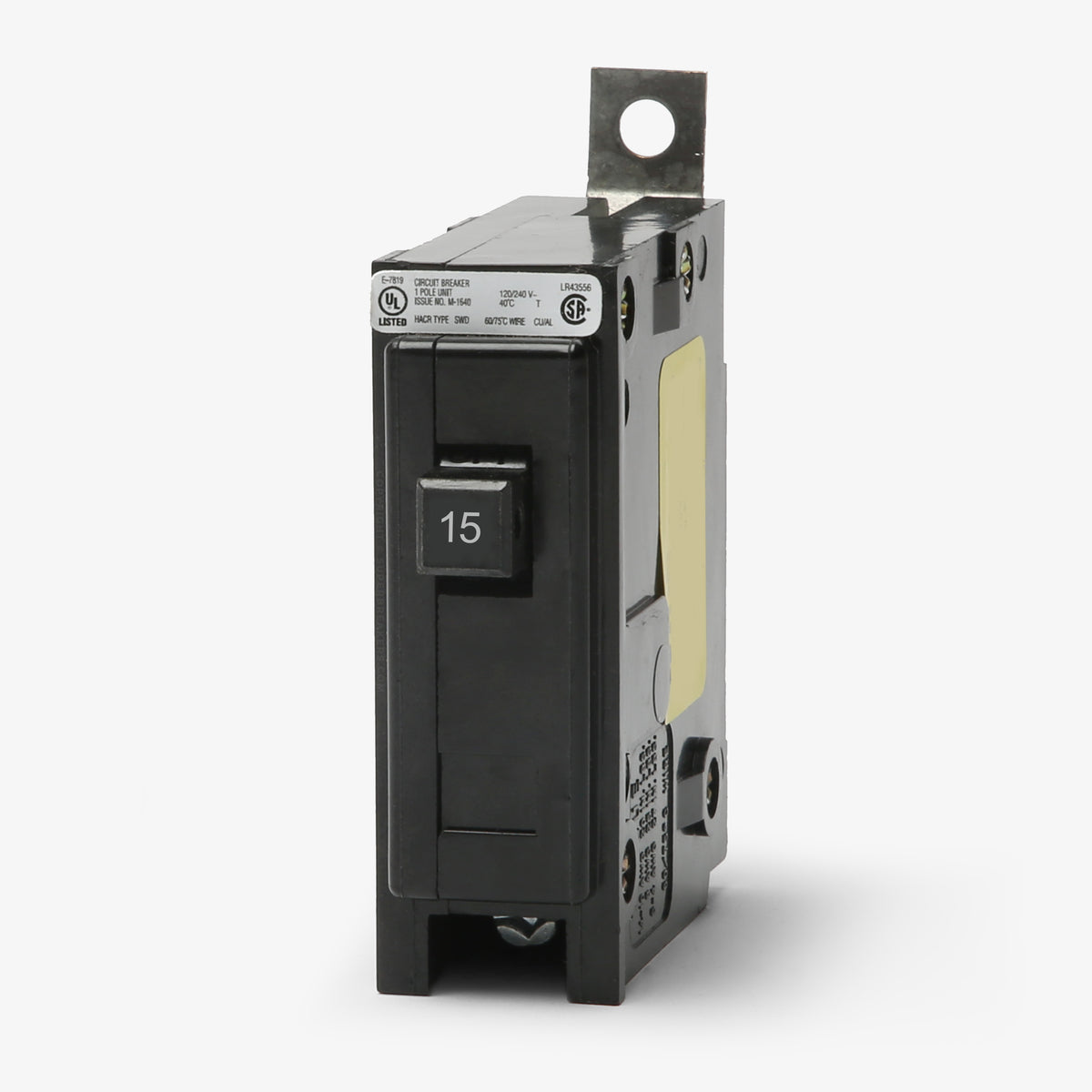

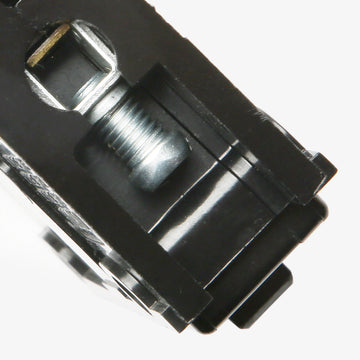

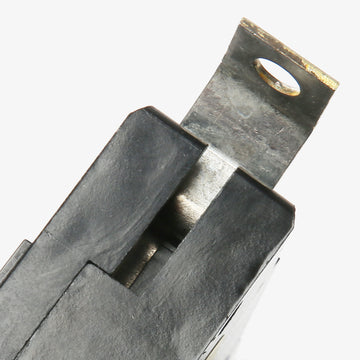

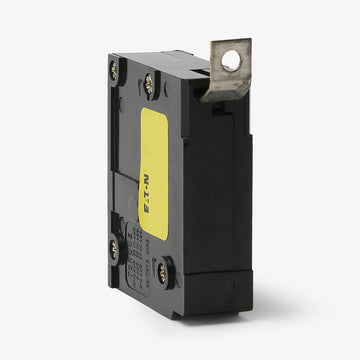

Eaton / Cutler-Hammer QBHW1015 Miniature Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
QBHW1015
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBHW1015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QBHW1015 - 15A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer QBHW1015 - 15A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHW1015 |
| Series | QBHW |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip |
Sold out
Quantity
Eaton / Cutler-Hammer QBHW1015 - 15A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHW1015-R |
| Series | QBHW |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip |
Similar Items
Eaton / Cutler-HammerQBHW1020S
20A 1 Pole Miniature Circuit Breaker
30A 1 Pole Miniature Circuit Breaker
40A 1 Pole Miniature Circuit Breaker
Description
Part of the Quicklag series, the Eaton QBHW1015 is a 15A, single-pole miniature circuit breaker engineered for commercial and industrial power distribution. It delivers dependable thermal-magnetic protection against overloads and short circuits. This bolt-on unit installs into Eaton Pow-R-Line panelboards, ensuring a secure connection for high-demand environments. With a 22kAIC interrupt rating, this breaker is both HACR and SWD rated for HVAC and 120V fluorescent lighting switching duty.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHW1015 |
| Series | QBHW |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip |
Product FAQs
5 answersWhat panelboards are compatible with the QBHW1015?
The QBHW1015 is a bolt-on breaker designed for use in Eaton Pow-R-Line commercial panelboards, such as the PRL1a, PRL2a, PRL1X, and PRL2X series. It is not compatible with standard residential plug-on load centers.
What is the difference between the Eaton BAB1015 and the QBHW1015?
Both are 15-amp, 1-pole bolt-on breakers in the Quicklag family, but they have different interrupting ratings. The BAB1015 is rated for 10 kAIC, while the QBHW1015 has a higher interrupting rating of 22 kAIC.
Is the QBHW1015 rated for switching duty (SWD)?
Yes, the 15-amp 1-pole QBHW1015 is SWD (Switching Duty) rated, meaning it is approved for switching 120V fluorescent lighting loads on a regular basis.
Is this breaker HACR rated for HVAC equipment?
Yes, the QBHW1015 is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific protection rating.
Can I install the QBHW1015 in a standard residential load center?
No. The QBHW1015 features a bolt-on connection designed specifically for commercial and industrial panelboards. Standard residential load centers, such as the Eaton BR or CH series, require plug-on breakers.
