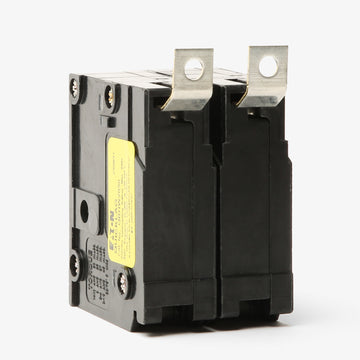

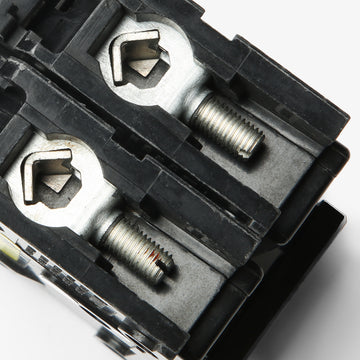

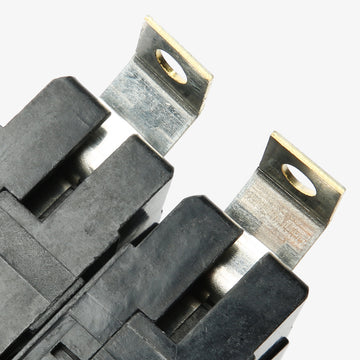

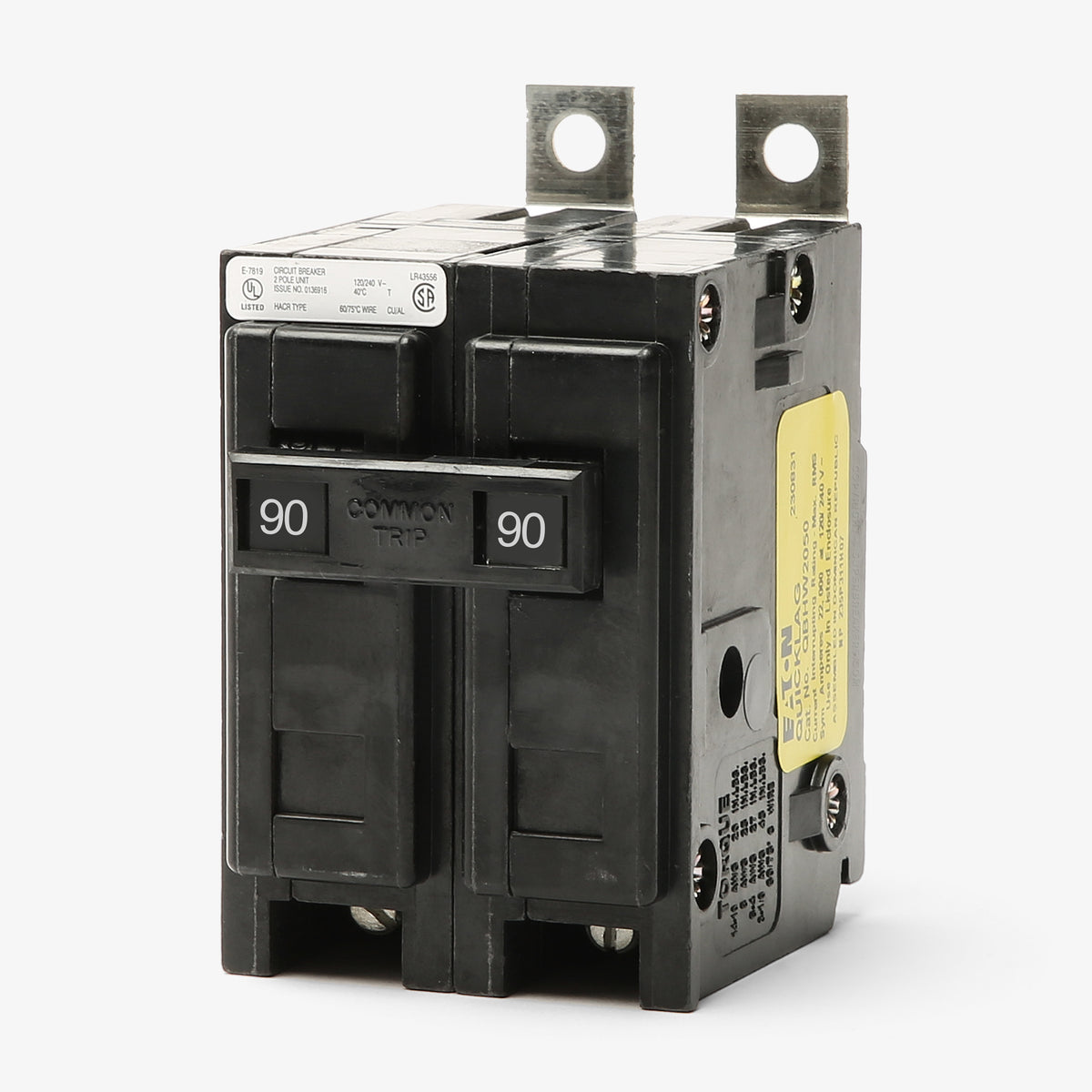

Eaton / Cutler-Hammer QBHW2090 Miniature Circuit Breaker
- 90A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
QBHW2090
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBHW2090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QBHW2090 - 90A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer QBHW2090 - 90A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHW2090 |
| Series | QBHW |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 8-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Common Trip |
Sold out
Quantity
Eaton / Cutler-Hammer QBHW2090 - 90A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHW2090-R |
| Series | QBHW |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 8-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Common Trip |
Similar Items
Eaton / Cutler-HammerQBHW2100S
100A 2 Pole Miniature Circuit Breaker
70A 2 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerQBHW2070S
70A 2 Pole Miniature Circuit Breaker
Description
Crafted for demanding commercial environments, the Eaton QBHW2090 is a 2-pole, 90A miniature circuit breaker. It utilizes proven thermal-magnetic trip technology to protect against overloads and short circuits in heavy-duty applications. This unit mounts into Eaton and Cutler-Hammer Pow-R-Line panelboards. The bolt-on connection provides a highly secure, vibration-proof fit to the panel bus, making it an excellent choice for industrial facilities.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHW2090 |
| Series | QBHW |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 8-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Common Trip |
Product FAQs
5 answersWhat panelboards are compatible with the QBHW2090?
This bolt-on breaker is designed for use in Eaton Pow-R-Line panelboards, including the PRL1a, PRL2a, and PRL3a series. It is also backward compatible with legacy Cutler-Hammer and Westinghouse panels that accept Quicklag bolt-on breakers.
What is the difference between the BAB2090 and the QBHW2090?
Both are 90A, 2-pole Quicklag bolt-on breakers with identical physical dimensions and mounting. The difference is their short-circuit interrupting rating. The BAB2090 is rated at 10 kAIC, while the QBHW2090 features a higher 22 kAIC rating.
Is the QBHW2090 HACR rated?
Yes, this breaker carries an HACR rating, meaning it is tested and approved for use with heating, air conditioning, and refrigeration equipment.
How much panel space does the QBHW2090 require?
As a 2-pole Quicklag breaker, it mounts directly to the panel bus using a bolt-on connection and occupies two standard 1-inch spaces.
Can I use the QBHW2090 to replace an older Westinghouse Quicklag breaker?
Yes, Eaton manufactures the current QBHW series as the direct replacement for legacy Westinghouse and Cutler-Hammer Quicklag bolt-on breakers. Always verify that your panel and application require a 22 kAIC interrupting rating before installing.
