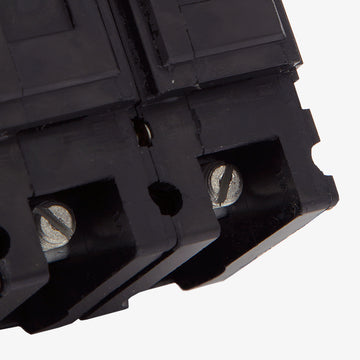

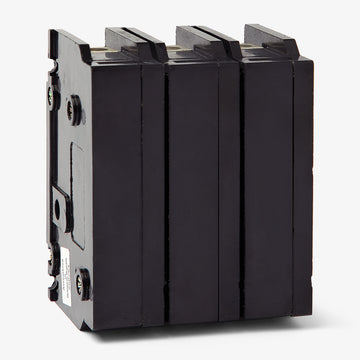

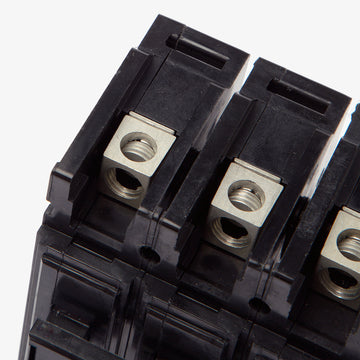

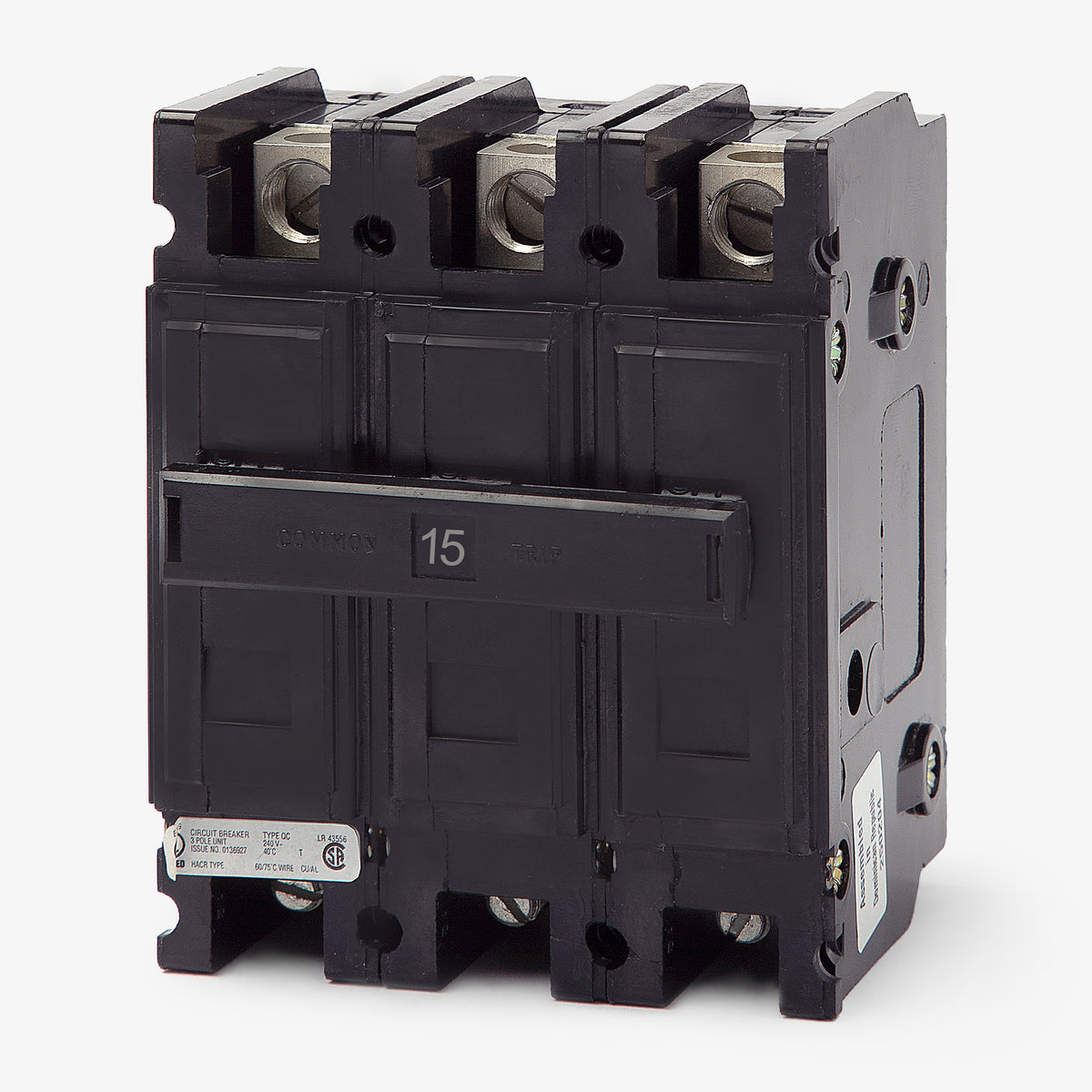

Eaton / Cutler-Hammer QC3015H Miniature Circuit Breaker
- 15A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
QC3015H
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QC3015H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QC3015H - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer QC3015H - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QC3015H |
| Series | QC |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 24-48VDC, 62.5VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 24-48VDC, 3.8kA @ 62.5VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Control Panels, Enclosures, DIN Rail (with adapter) |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Visual Trip Indicator, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip |
Sold out
Quantity
Eaton / Cutler-Hammer QC3015H - 15A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QC3015H-R |
| Series | QC |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 24-48VDC, 62.5VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 24-48VDC, 3.8kA @ 62.5VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Control Panels, Enclosures, DIN Rail (with adapter) |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Visual Trip Indicator, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip |
Similar Items
35A 3 Pole Miniature Circuit Breaker
45A 3 Pole Miniature Circuit Breaker
50A 3 Pole Miniature Circuit Breaker
Description
Designed to handle rigorous electrical demands, the Eaton QC3015H is a 15A, three-pole miniature circuit breaker from the Quicklag family. It provides reliable thermal-magnetic protection for commercial, industrial, and marine applications operating at 240V. The unit mounts into standard control panels via a cable-in/cable-out configuration and includes line and load lugs. With a 10kAIC rating, trip-free mechanism, and HACR certification, it delivers consistent safety for critical circuits.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QC3015H |
| Series | QC |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 24-48VDC, 62.5VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 24-48VDC, 3.8kA @ 62.5VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Control Panels, Enclosures, DIN Rail (with adapter) |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Visual Trip Indicator, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip |
Product FAQs
5 answersHow is the Eaton QC3015H mounted in a control panel?
This breaker features a cable-in/cable-out design for standard panel mounting. If your enclosure requires DIN rail mounting, it can be attached to a standard 35mm DIN rail using the Eaton QCDINADAPT adapter bracket.
Can the QC3015H replace legacy Westinghouse circuit breakers?
Yes, Eaton manufactures the Quicklag QC series to the exact specifications of legacy Cutler-Hammer and Westinghouse QC breakers. The QC3015H is a direct replacement for older 15A, 3-pole models with the same catalog number.
Is the QC3015H rated for HVAC applications?
Yes, Eaton Quicklag QC breakers from 10A to 100A are HACR rated. This makes the QC3015H approved for use with heating, air conditioning, and refrigeration equipment requiring a 15A overcurrent protection device.
What type of panels accept the QC3015H breaker?
The QC series is designed for standalone control panels, industrial enclosures, and automation cabinets that utilize direct cable-in/cable-out wiring. It is not compatible with standard residential load centers that require plug-on or bolt-on busbar connections.
How does the handle indicate a tripped condition?
The QC3015H features a three-position handle mechanism. When a fault is detected by the thermal-magnetic trip unit, the handle moves to a center position between ON and OFF, providing clear visual confirmation of the tripped status.
