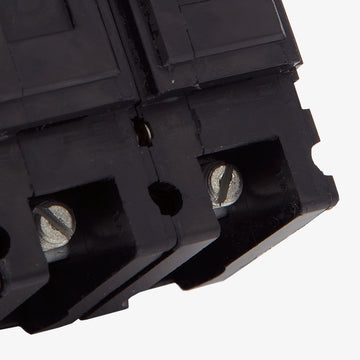

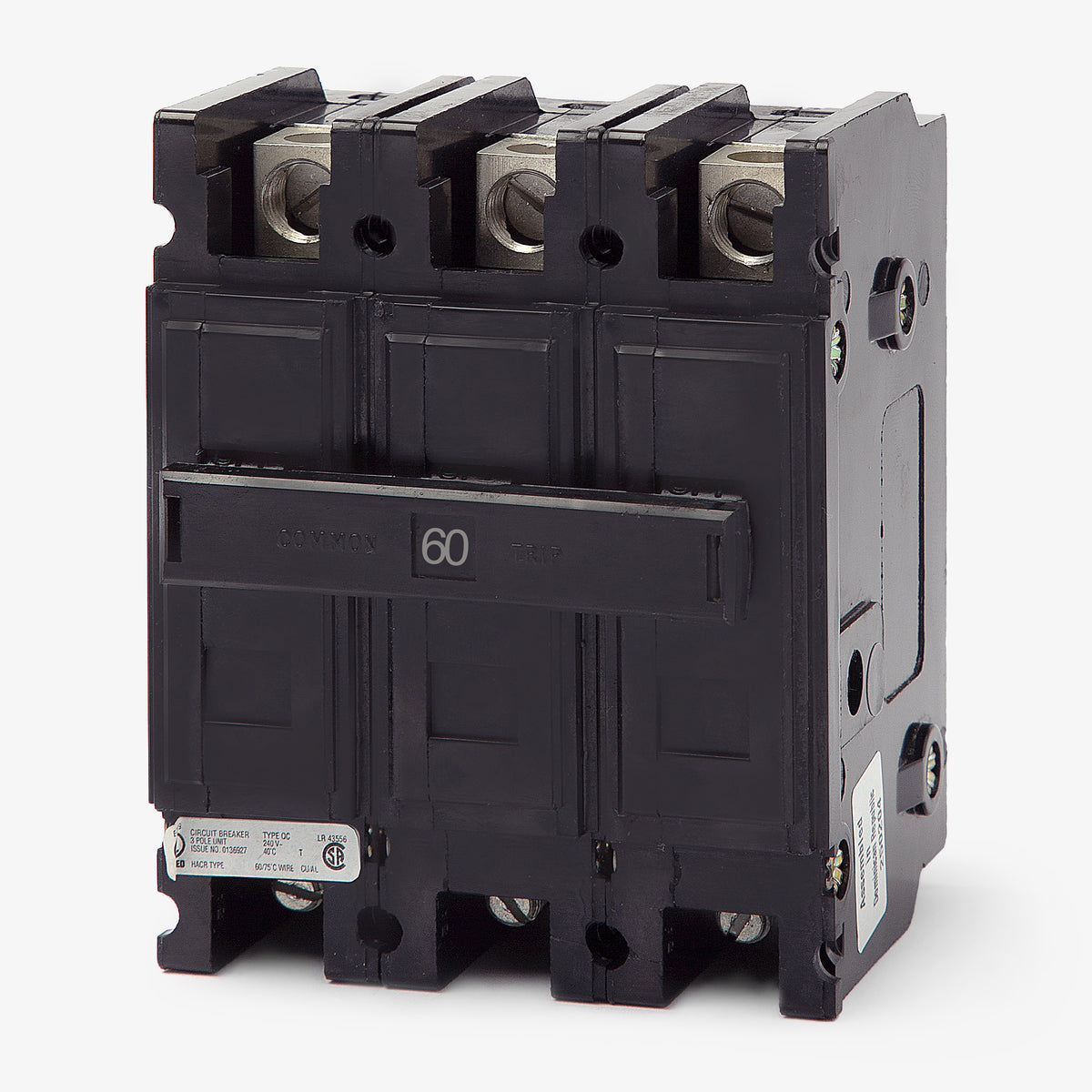

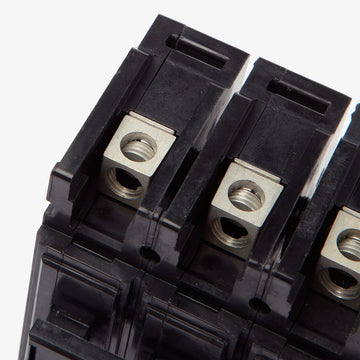

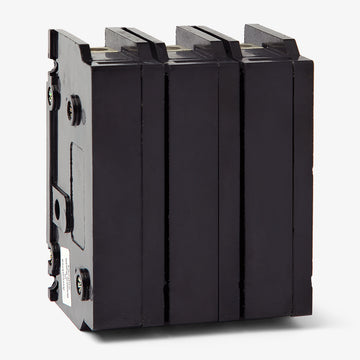

Eaton / Cutler-Hammer QC3060H Miniature Circuit Breaker
- 60A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
QC3060H
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QC3060H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QC3060H - 60A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer QC3060H - 60A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QC3060H |
| Series | QC |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 48VDC, 62.5VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Control Panels, Enclosures, DIN Rail (with adapter) |
| Wire Gauge | 14-4 AWG (Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Cable-in/Cable-out design |
Sold out
Quantity
Eaton / Cutler-Hammer QC3060H - 60A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QC3060H-R |
| Series | QC |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 48VDC, 62.5VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Control Panels, Enclosures, DIN Rail (with adapter) |
| Wire Gauge | 14-4 AWG (Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Cable-in/Cable-out design |
Similar Items
50A 3 Pole Miniature Circuit Breaker
45A 3 Pole Miniature Circuit Breaker
35A 3 Pole Miniature Circuit Breaker
Description
Belonging to the Eaton Quicklag family, the QC3060H is a 60A, three-pole miniature breaker designed for commercial and industrial branch circuits. This unit features a cable-in/cable-out panel mount design suitable for control panels and standard enclosures. It easily adapts to DIN rail installations when paired with a mounting bracket. Rated for 10kAIC at 240VAC, this HACR-approved breaker includes a fixed thermal-magnetic trip and standard box lug terminals.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QC3060H |
| Series | QC |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 48VDC, 62.5VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Control Panels, Enclosures, DIN Rail (with adapter) |
| Wire Gauge | 14-4 AWG (Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Cable-in/Cable-out design |
Product FAQs
5 answersHow is the QC3060H mounted in an enclosure?
This breaker features a cable-in/cable-out design for standard panel mounting. If you need to mount it on a DIN rail, you must use a separate adapter bracket, Eaton part number QCDINADAPT.
Is the Eaton QC3060H interchangeable with older Cutler-Hammer or Westinghouse models?
Yes. Eaton acquired the Cutler-Hammer and Westinghouse distribution equipment lines. A QC3060H breaker is the exact same component across these brands and belongs to the Quicklag family.
Does the QC3060H provide ground fault or arc fault protection?
No. This is a standard thermal-magnetic breaker with fixed long-time and instantaneous trip functions. It does not include GFCI or AFCI circuitry.
Is this breaker suitable for HVAC equipment?
Yes, the QC3060H is HACR rated. It can be safely used for heating, air conditioning, and refrigeration motor loads that require a HACR-approved breaker.
Can the QC3060H be used for DC control circuits?
Yes. In addition to its standard AC rating, it is approved for DC applications. It provides a 5kA interrupting capacity at 48VDC and 3.8kA at 62.5VDC, making it suitable for industrial DC control panels.
