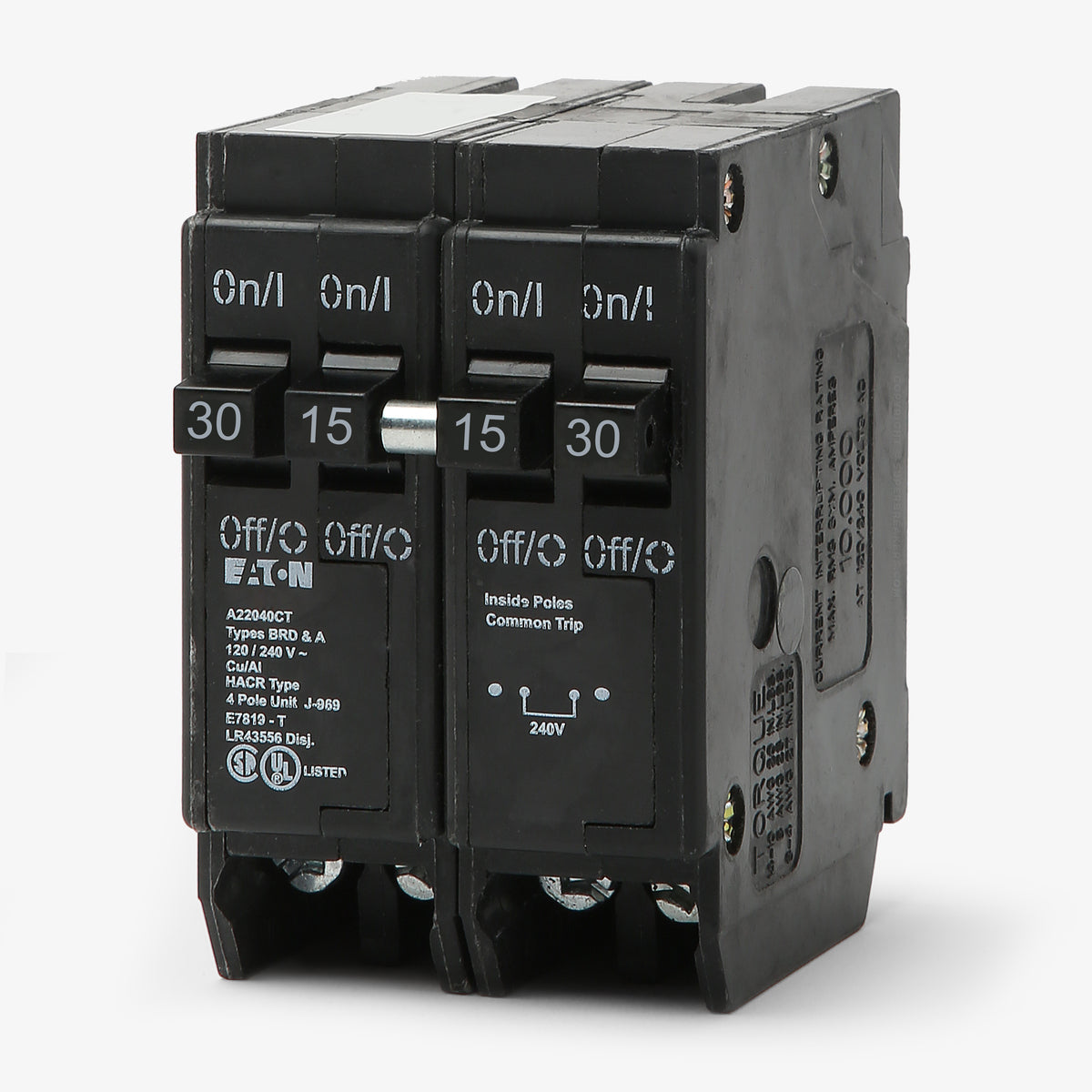

Eaton / Cutler-Hammer BQC2152130 15/30A Quadplex Miniature Circuit Breaker
- 15/30A
- 4 Pole

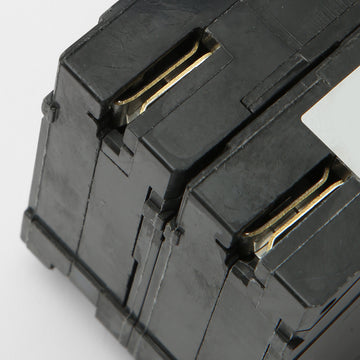

- Plug-On
Eaton / Cutler-Hammer
BQC2152130
15/30A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BQC2152130
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BQC2152130 - 15/30A Quadplex Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBQC230215
15/30A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC2302115
15/30A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC220230
20/30A Quadplex Miniature Circuit Breaker
Description
Engineered to maximize wiring space, the Eaton BQC2152130 quadplex breaker fits four circuits into two standard slots. It provides reliable thermal-magnetic protection for residential and commercial branch circuits. This plug-on unit mounts into Eaton Type BR load centers and features a Class CTL rejection tab for proper installation. Rated for 10kAIC at 120/240V, it includes a 15A common trip center for 240V loads and two 30A independent trip outer poles for 120V circuits.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BQC |
| Amperage | 15/30A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |

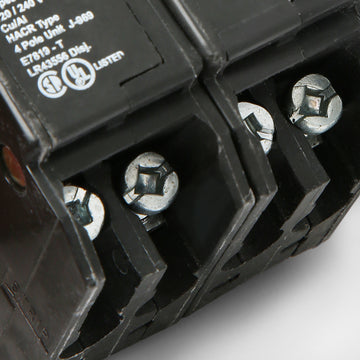

| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 14-4 AWG, Cu/Al |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Standards | Federal Specification W-C375, UL 489 |
| Approval | HACR, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Rejection Tab, Common Trip |
Product FAQs
5 answersWhat load centers are compatible with the Eaton BQC2152130 quad circuit breaker?
This breaker is designed for use in Eaton Type BR load centers. It is a CTL (Circuit Total Limiting) breaker with a rejection tab, meaning it will only install in panel bus stabs notched to accept tandem or quadplex breakers.
How many panel spaces does the BQC2152130 require?
As a quadplex breaker, it requires two standard 1-inch panel spaces to provide its four poles of protection.
What wire sizes are accepted by the box lugs on this breaker?
The terminals on the BQC2152130 accept 14 AWG to 4 AWG copper or aluminum wiring.
Can I use this breaker to replace older Cutler-Hammer or Bryant quadplex breakers?
Yes, Eaton manufactures the BR line to replace legacy Cutler-Hammer, Bryant, Westinghouse, and Challenger Type BR breakers. Verify that your specific panel is rated for CTL quadplex breakers before installation.
Does the BQC2152130 include arc-fault or ground-fault protection?
No, this is a standard thermal-magnetic breaker with long-time and instantaneous trip functions. It does not provide AFCI or GFCI protection.
