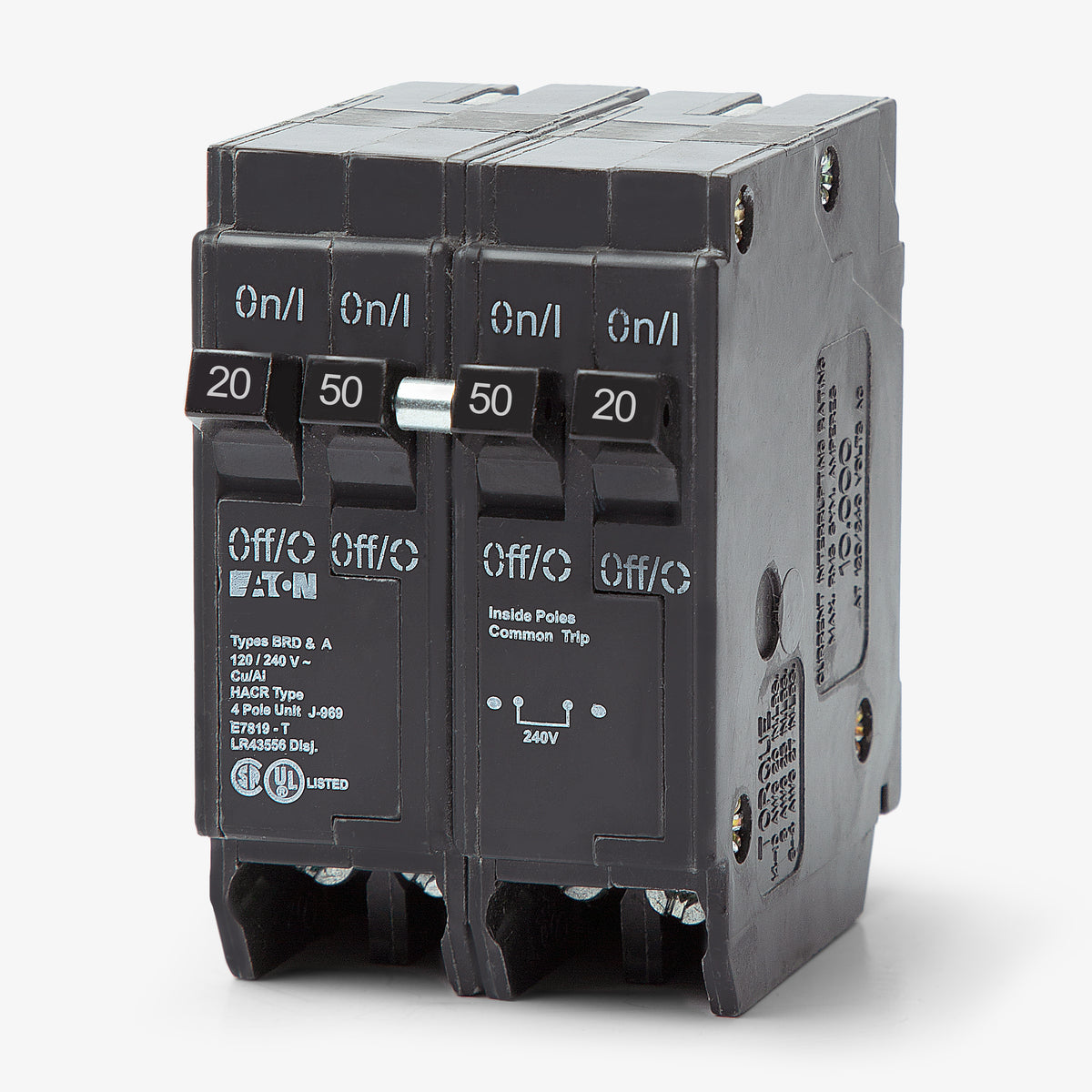

Eaton / Cutler-Hammer BQC220250 20/50A Quadplex Miniature Circuit Breaker
- 20/50A
- 4 Pole
- Plug-On
Eaton / Cutler-Hammer
BQC220250
20/50A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BQC220250
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BQC220250 - 20/50A Quadplex Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBQC230250
30/50A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC240250
40/50A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC250220
50/20A Quadplex Miniature Circuit Breaker
Description
Part of the BQ series, the Eaton BQC220250 is a quadplex breaker providing one 20A and one 50A two-pole circuit. This configuration allows for two independent 240V loads while conserving enclosure real estate. The plug-on unit mounts into Eaton Type BR load centers, fitting four poles into just two standard panel spaces. Rated at 10 kAIC for 120/240VAC systems, it features common trip mechanisms for both circuits and includes a rejection tab (CTL) for proper panel placement.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BQC |
| Amperage | 20/50A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | Federal Specification W-C375, UL 489 |
| Approval | HACR, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated, Rejection Tab (CTL) |
Product FAQs
6 answersWhat is the difference between Eaton BQ and BQC quad breakers?
BQ quadplex breakers feature independent trip functions, while BQC breakers feature a common trip. The BQC220250 has common trip mechanisms for both the 20A and 50A two-pole circuits, ensuring both hot legs disconnect simultaneously during a fault.
How are the 20A and 50A circuits arranged on the BQC220250?
The outer two poles make up the 20A common trip circuit, while the center two poles make up the 50A common trip circuit.
What type of load centers accept the BQC220250 breaker?
This breaker is designed for Eaton Type BR load centers that support CTL (Circuit Total Limitation) breakers. The panel must have notched bus stabs to accept the rejection tab on the breaker.
Can the BQC220250 replace older Bryant or Westinghouse quad breakers?
Yes, Eaton BR series breakers are UL listed to replace legacy Bryant, Westinghouse, and Challenger BR style circuit breakers in compatible load centers.
Does this quadplex breaker include a rejection tab?
Yes, the BQC220250 is a CTL rated breaker and includes a rejection tab on the bus connection side. This prevents installation in panel spaces that are not designed for tandem or quadplex breakers.
Is the BQC220250 rated for HVAC equipment?
Yes, Eaton BQC quadplex circuit breakers carry a listing for HACR (Heating, Air Conditioning, and Refrigeration) applications.
