Eaton / Cutler-Hammer BR215ST Miniature Circuit Breaker
- 15A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
BR215ST
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BR215ST
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

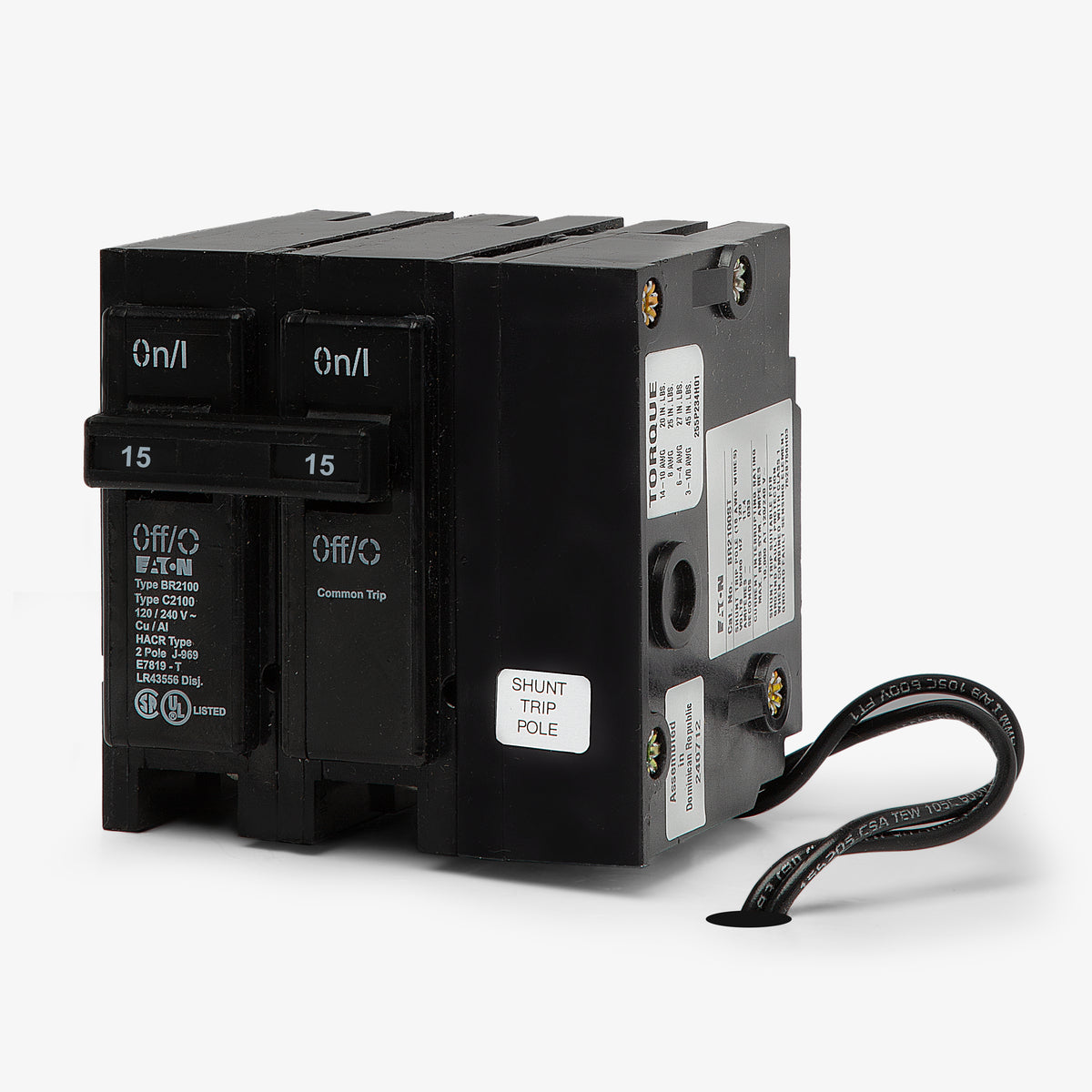

Eaton / Cutler-Hammer BR215ST - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
30A 2 Pole Miniature Circuit Breaker
60A 2 Pole Miniature Circuit Breaker
90A 2 Pole Miniature Circuit Breaker
Description
Designed for residential and commercial power distribution, the BR215ST is a 2-pole, 15A miniature circuit breaker. It provides reliable thermal-magnetic protection against overloads and short circuits. This plug-on unit installs into Eaton and Cutler-Hammer Type BR load centers. Due to the integrated accessory, it requires three full pole spaces for mounting. Rated for 10kAIC at 120/240V, it features a factory-installed shunt trip for remote shutdown and accepts 14-4 AWG wire.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BR |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Shunt Trip |
| Standards | Federal Specification W-C375, UL 489 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
6 answersWhat panels accept the BR215ST circuit breaker?
This plug-on breaker is designed for Eaton and Cutler-Hammer Type BR load centers. It is also backward compatible with legacy Bryant and Westinghouse Type BR panels.
How many panel spaces does the BR215ST require?

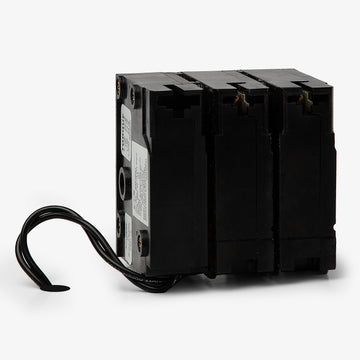

Although it is a 2-pole breaker, the factory-installed shunt trip requires one additional pole space. It occupies three 1-inch spaces in a load center.
What does the ST suffix indicate on this model?

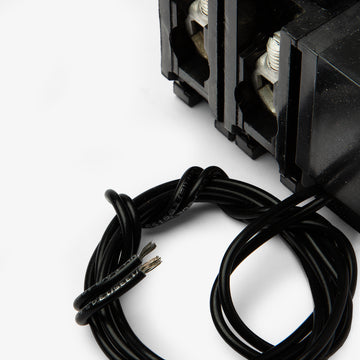

The ST suffix means the breaker includes a factory-installed 120V shunt trip. This accessory allows the breaker to be tripped remotely for emergency shutdown applications.
Can I field-install a shunt trip on a standard BR215 breaker?
No, shunt trips cannot be field-installed on Eaton Type BR miniature circuit breakers. You must use a factory-assembled model like the BR215ST.
What voltage is required to activate the shunt trip on the BR215ST?
The factory-installed shunt trip on this breaker operates on a 120VAC signal.
Does this breaker provide arc fault or ground fault protection?
No, this is a standard thermal-magnetic breaker with a shunt trip. It does not provide AFCI or GFCI protection.
