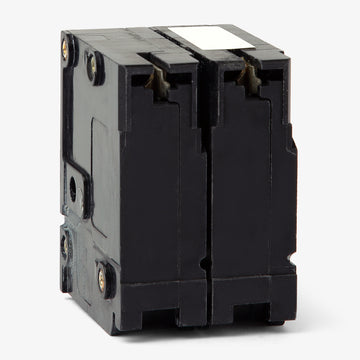

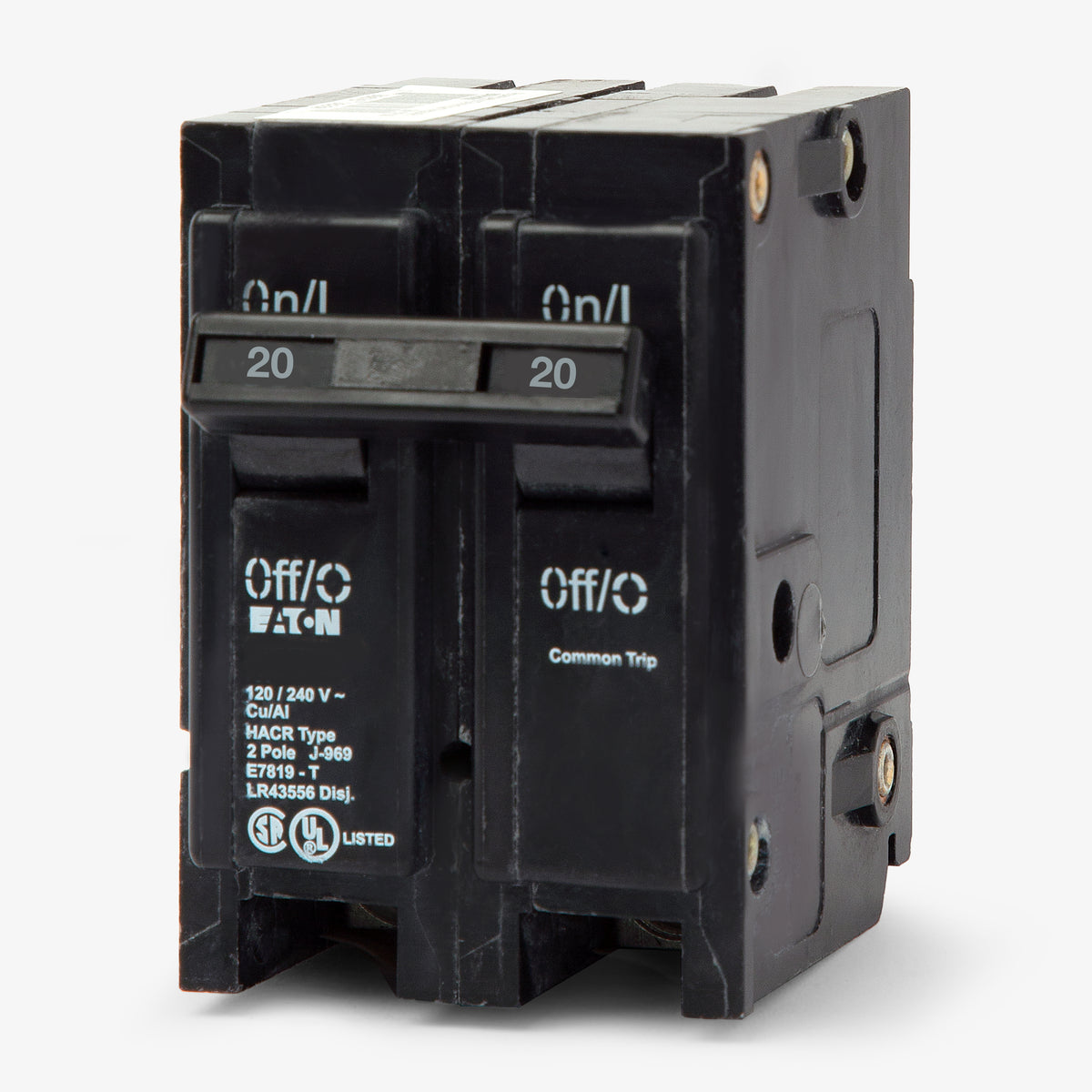

Eaton / Cutler-Hammer BRHH220 Miniature Circuit Breaker
- 20A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
BRHH220
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BRHH220
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BRHH220 - 20A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
70A 2 Pole Miniature Circuit Breaker
90A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
Description

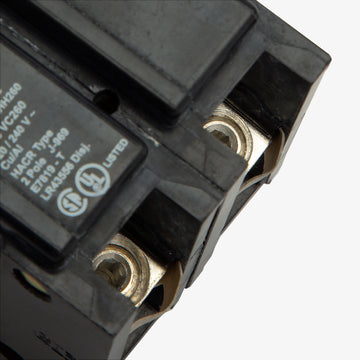

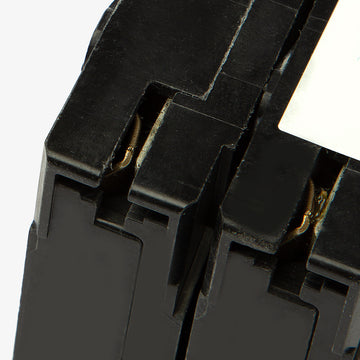

Providing robust overcurrent protection, the Eaton BRHH220 is a 20-amp, two-pole miniature circuit breaker. It is engineered for residential and light commercial applications requiring enhanced fault current handling. Designed for seamless compatibility, this breaker mounts into Eaton Type BR load centers. The plug-on design ensures a secure connection, while the box lug terminals accommodate 14-4 AWG copper or aluminum wire for flexible installation.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BRHH |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 42kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Standards | Federal Specification W-C376, HACR, UL 489 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, High Interrupting Capacity, HACR Rated |
Product FAQs
6 answersWhat load centers are compatible with the BRHH220 breaker?
The BRHH220 is designed for use in Eaton Type BR load centers. It is also backward compatible with many legacy Bryant, Westinghouse, and Challenger panels that specify Type BR or Type C breakers.
Can I install the BRHH220 in a Square D or Siemens load center?
No. The BRHH220 is not UL-listed for use in Square D or Siemens panels. It is specifically designed for Eaton Type BR load centers and compatible legacy panels from Bryant, Westinghouse, and Challenger.
What is the difference between Eaton BR, BRH, and BRHH breakers?
The difference is the interrupting capacity. Standard BR breakers are rated at 10kAIC, BRH breakers are rated at 22kAIC, and BRHH breakers like the BRHH220 feature a high interrupting rating of 42kAIC.
Can I replace a BRHH220 with a standard BR220?
A standard BR220 can only be used if your electrical system requires a 10kAIC rating. If your panel or specific application requires a 42kAIC interrupting rating, you must use the BRHH220 to ensure code compliance and proper protection.
Does the BRHH220 require a neutral wire connection?
No. Because the BRHH220 is a standard thermal-magnetic breaker and not a GFCI or AFCI model, it does not require a neutral pigtail or a plug-on neutral connection.
What does the LI trip function on this breaker indicate?
The LI designation stands for Long-Time and Instantaneous trip functions. The Long-Time function protects the circuit against sustained overloads, while the Instantaneous function trips the breaker immediately in the event of a severe short circuit.
