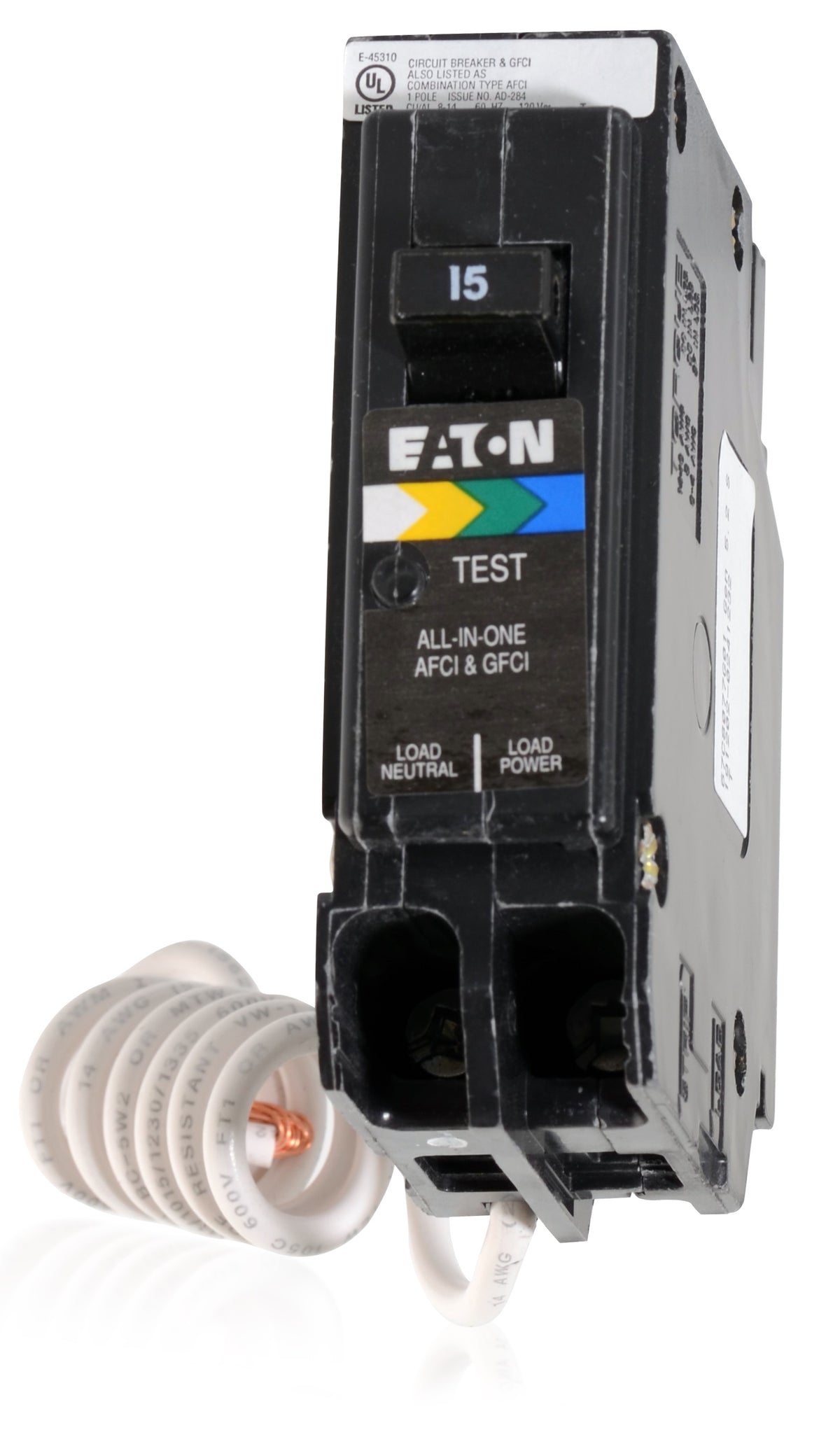

Eaton / Cutler-Hammer BRN115A1CS Dual Function Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
BRN115A1CS
Dual Function Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BRN115A1CS
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BRN115A1CS - 15A Dual Function Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBRN120A1CS
20A Dual Function Miniature Circuit Breaker
20A Dual Function Miniature Circuit Breaker
Description
Engineered to replace the legacy BRLAFGF115, the Eaton BRN115A1CS delivers 15A of comprehensive combination arc-fault and ground-fault protection. It installs into Type BR load centers, utilizing a pigtail neutral for reliable 120V residential circuit defense. Meeting current NEC standards for dual-protection zones, this 10 kAIC rated device features a compact short-body footprint. Built-in self-test functionality, LED trip indicators, and padlock options simplify maintenance.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BRN115A1CS |
| Series | BRN |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BRN |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | Dual Function (AFCI/GFCI) |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 489, UL 943, UL 1699 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Self-Test, Visual Trip Indicator, Short Body |
Product FAQs
7 answersWhat is the difference between the BRN115A1CS and the BRN115DF?
The BRN115A1CS is the retail clamshell packaged version of the BRN115DF. Both catalog numbers represent the exact same 15A dual function circuit breaker.
Does the BRN115A1CS replace older Eaton BR dual function breakers?
Yes, the BRN115A1CS is the direct replacement for the legacy BRLAFGF115 circuit breaker.
What does dual function mean on this Eaton breaker?
A dual function breaker combines both Arc Fault Circuit Interrupter (AFCI) and Ground Fault Circuit Interrupter (GFCI) protection into a single device. This meets NEC requirements for residential areas that require both types of protection, such as kitchens and laundry rooms.
How do I connect the neutral on the BRN115A1CS?
This breaker features a pigtail neutral connection. The coiled white pigtail wire must be connected directly to the neutral bus bar in your Type BR load center.
What panels are compatible with the BRN115A1CS?
This breaker is designed exclusively for use in Eaton, Cutler-Hammer, or Bryant Type BR load centers that accept 1-inch plug-in breakers.
How do I troubleshoot a tripped BRN115A1CS breaker?
Eaton dual function breakers feature a diagnostic LED that blinks a specific trip code after being reset. By counting the number of blinks, from 1 to 6, you can determine if the trip was caused by an arc fault, ground fault, overvoltage, or thermal overload.
What does 5 blinks on the diagnostic LED indicate?
If the red LED blinks 5 times, pauses, and repeats, it indicates a ground fault. This means the breaker detected leakage current finding an unintended path to ground.
