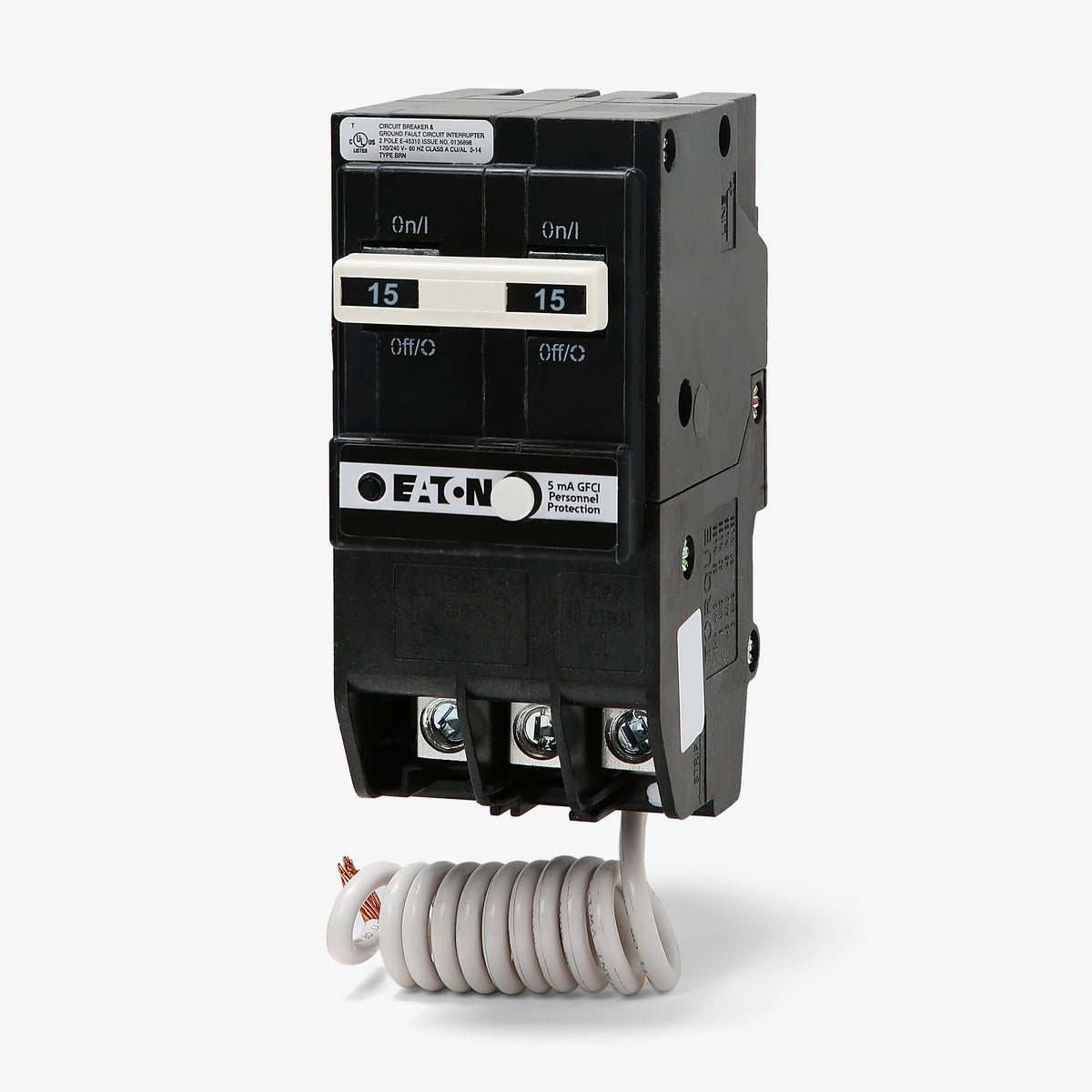

Eaton / Cutler-Hammer BRN215GF GFCI Miniature Circuit Breaker
- 15A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
BRN215GF
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BRN215GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BRN215GF - 15A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
30A GFCI Miniature Circuit Breaker
40A GFCI Miniature Circuit Breaker
45A GFCI Miniature Circuit Breaker
Description
Providing 15 amps of continuous current capacity, this two-pole GFCI unit ensures safety in commercial and residential damp environments. The integrated 5mA trip sensitivity quickly interrupts power when leakage is detected, keeping personnel safe from severe shocks. It easily snaps into Type BR panelboards and replaces the older GFTCB215 model. Equipped with a pigtail neutral connection and automatic self-testing capabilities, it guarantees ongoing compliance with current UL 943 standards.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BRN |
| Amperage | 15A |
| Poles | 2 |

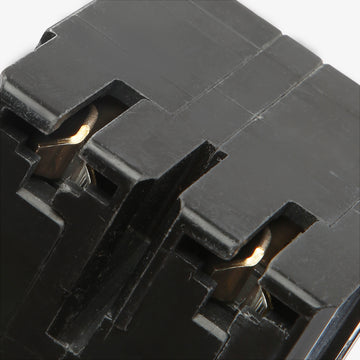

| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BRN |
|---|---|

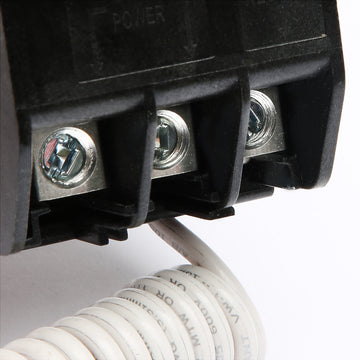

| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 489, UL 943, CSA C22.2 |
| Approval | UL, CSA |
| Temp Rating | 40C |
| Construction Features | Common Trip, Trip-to-Center, Self-Test, Visual Trip Indicator, Short Body |
Product FAQs
7 answersWhat load centers are compatible with the BRN215GF?
This breaker is designed for use in Eaton and Cutler-Hammer Type BR load centers, spa panels, and meter breakers.
Can the BRN215GF replace older Cutler-Hammer GFCI breakers?
Yes, the BRN215GF is the direct replacement for older 15A, 2-pole Type BR GFCI breakers, including the GFTCB215 and BR215GF. The newer BRN series features a shorter body design that provides more wire bending space in the panel.
What level of ground fault protection does this breaker provide?
The BRN215GF is a Class A GFCI breaker, meaning it is designed to trip when it detects a ground fault current of 5mA. This provides personnel protection in wet or damp areas like pools, spas, and outdoor circuits.
Does the BRN215GF include a self-test feature?
Yes, this breaker periodically runs an internal self-test diagnostic to ensure the ground fault circuitry is functioning properly, complying with current UL 943 standards.
How is the neutral connection made on the BRN215GF?
This breaker features a pigtail neutral connection. The coiled white pigtail wire must be connected directly to the neutral bar in the load center for the ground fault protection to function correctly.
How do I troubleshoot a tripped BRN215GF breaker?
The BRN series features diagnostic LEDs that display trip codes. These codes help identify whether the breaker tripped due to a thermal overload, a short circuit, or a ground fault, simplifying maintenance and troubleshooting.
How often should the GFCI test button be used?
Eaton recommends pressing the test button monthly to verify the mechanical operation and ground fault sensing circuit of the breaker. A successful test will trip the breaker, which can then be reset.
