Eaton / Cutler-Hammer BRN250GF GFCI Miniature Circuit Breaker
- 50A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
BRN250GF
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BRN250GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

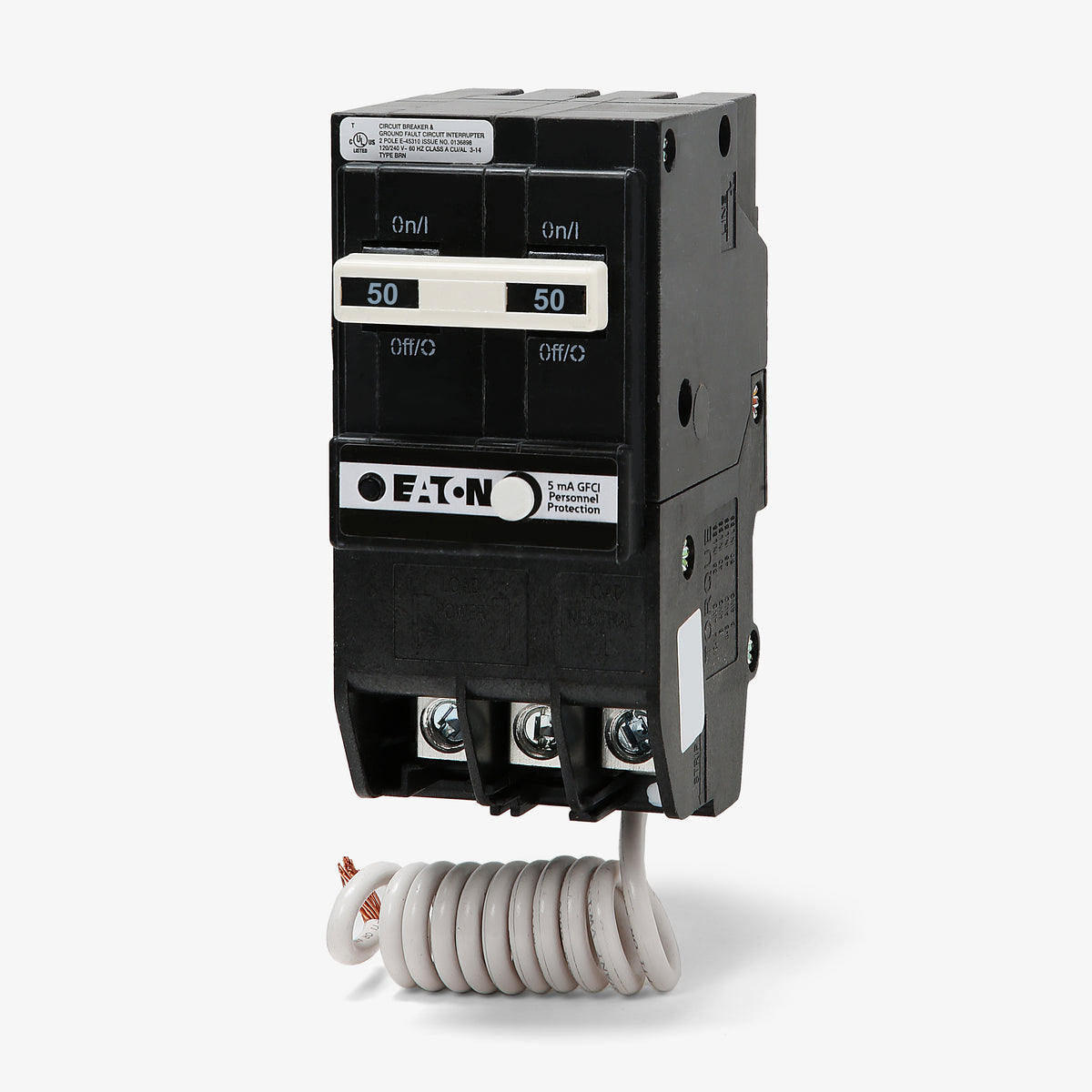

Eaton / Cutler-Hammer BRN250GF - 50A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
60A GFCI Miniature Circuit Breaker
40A GFCI Miniature Circuit Breaker
30A GFCI Miniature Circuit Breaker
Description
Built for wet and damp locations, the Eaton BRN250GF delivers 5mA ground-fault protection for 120/240V circuits. This 50-amp, two-pole breaker is essential for areas like spas and pools requiring NEC GFCI compliance. It mounts into standard Eaton Type BR panelboards using a traditional pigtail neutral connection. Serving as an exact drop-in replacement for the discontinued GFTCB250, it ensures seamless compatibility. The 10 kAIC unit includes a self-test feature and visual trip indicator.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BRN |
| Amperage | 50A |
| Poles | 2 |

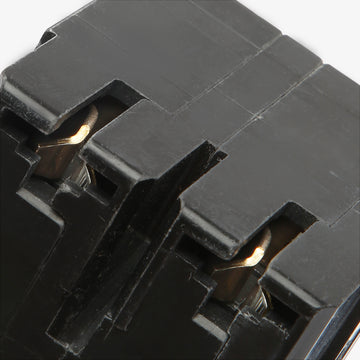

| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BRN |
|---|---|

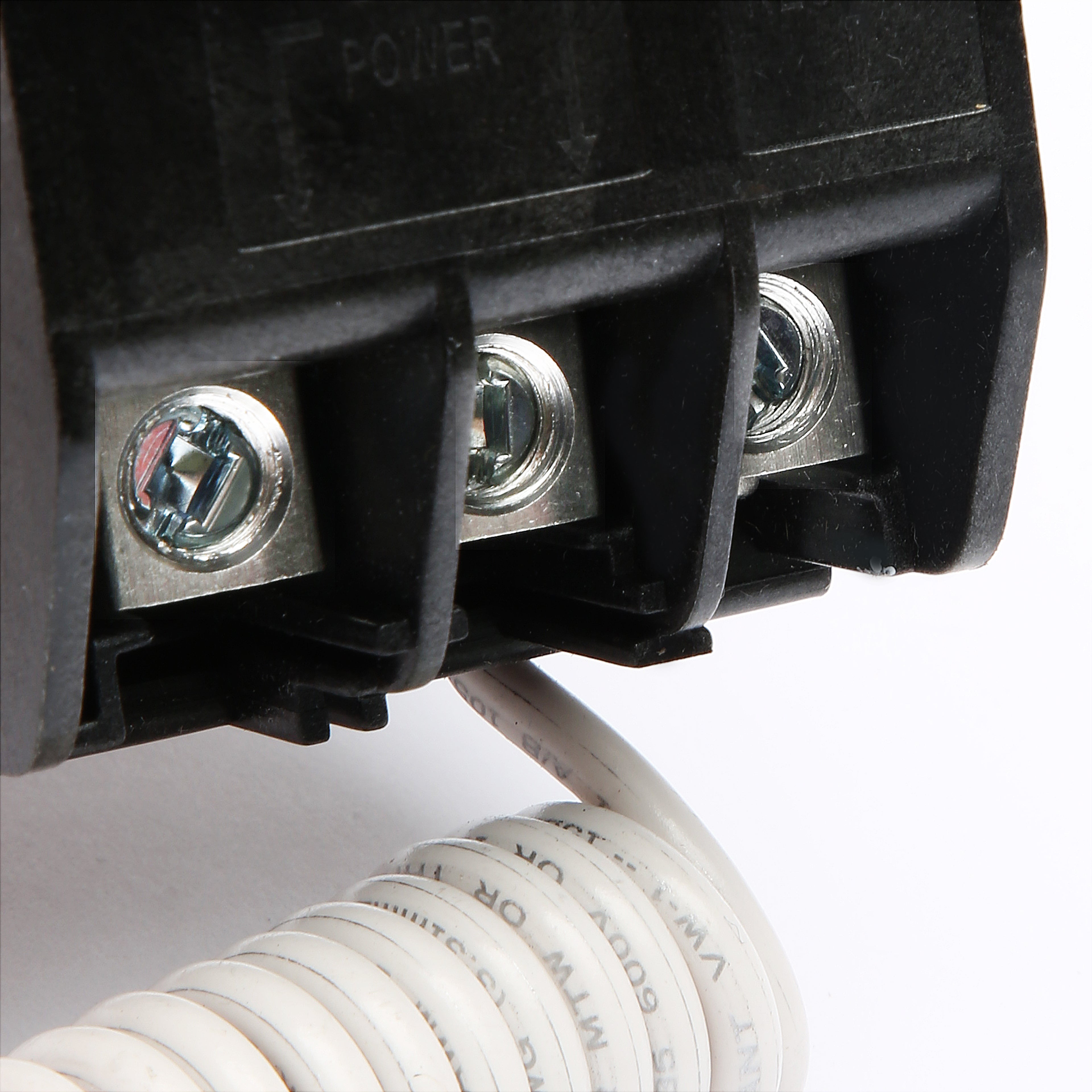

| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 489, UL 943, CSA C22.2 |
| Approval | UL, CSA |
| Temp Rating | 40C |
| Construction Features | Short Body, Visual Trip Indicator, Self-Test, Common Trip, HACR Rated |
Product FAQs
5 answersDoes the BRN250GF replace older Eaton or Cutler-Hammer 50A GFCI breakers?
Yes, the BRN250GF is the direct drop-in replacement for the discontinued GFTCB250 and GFCB250 catalog numbers.
What level of ground fault protection does the BRN250GF provide?
This breaker provides Class A ground fault protection with a 5mA trip sensitivity, which is required by the NEC for personnel protection in wet or damp locations such as pools, spas, and outdoor circuits.
Does this breaker include an automatic self-test function?
Yes, the BRN250GF features a self-test function that automatically initiates within 5 seconds of power availability. If the self-test fails, the breaker will disable itself to prevent unprotected power delivery.
How is the pigtail neutral wired during installation?

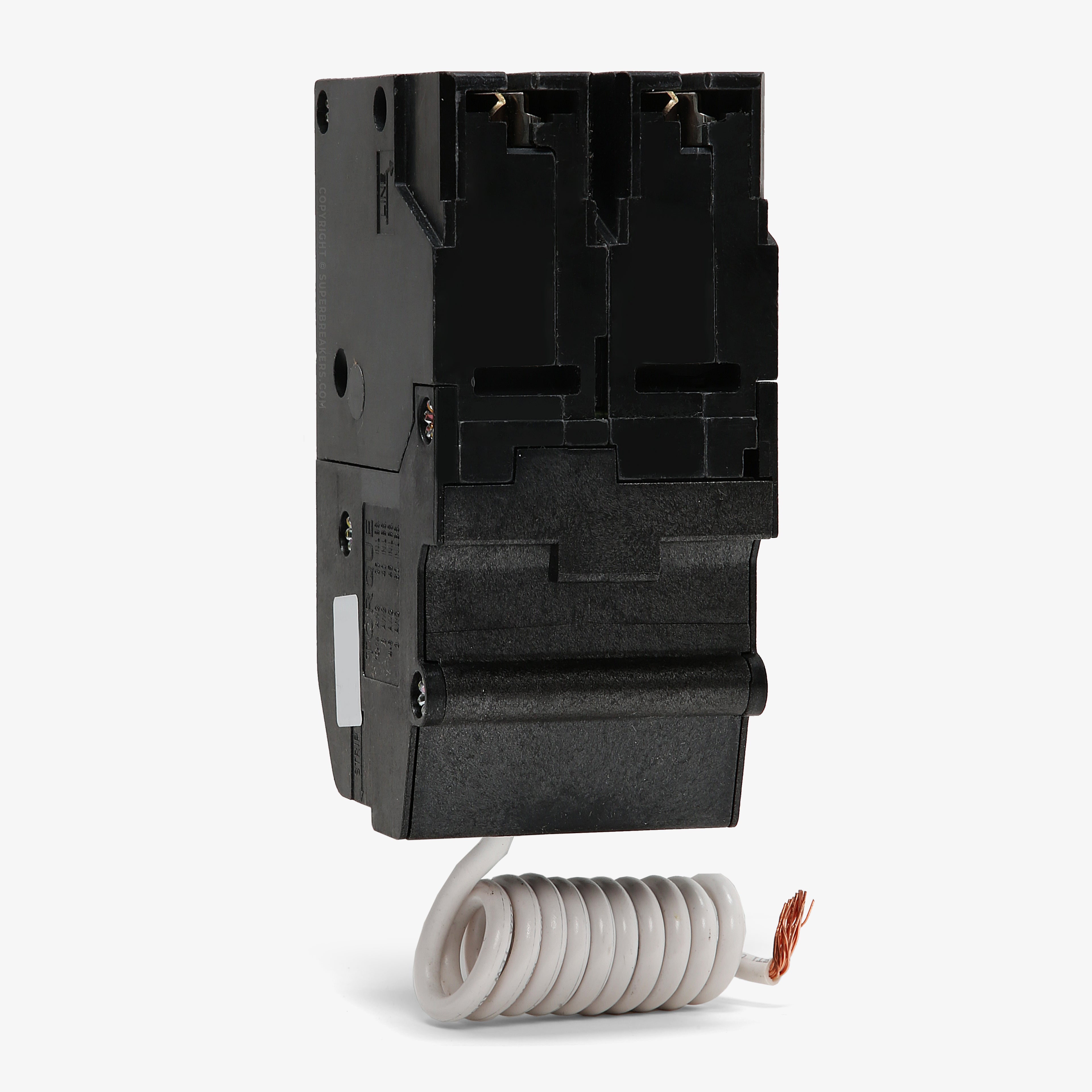

The coiled white pigtail wire attached to the breaker must be routed and terminated directly to the neutral bus bar in the load center to ensure proper GFCI operation.
Can the BRN250GF be installed in any Eaton panel?
No, this breaker is specifically designed for Eaton and Cutler-Hammer Type BR load centers. It is not compatible with Type CH panels.
