Eaton CCPB-3-100CF Disconnect Switch
Quantity
Core Specs
See full specs
Eaton CCPB-3-100CF Disconnect Switch
New
Quantity
Description

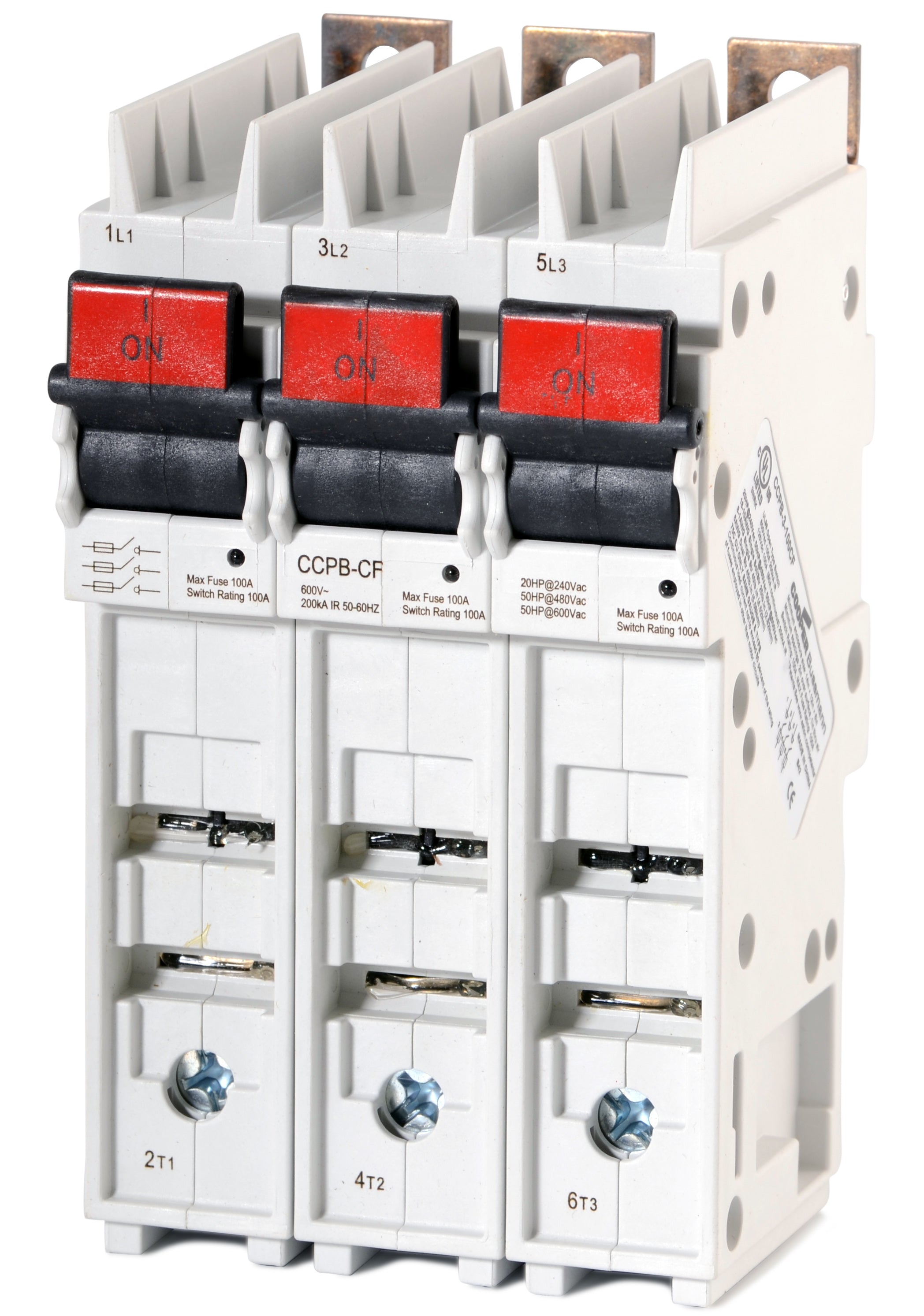

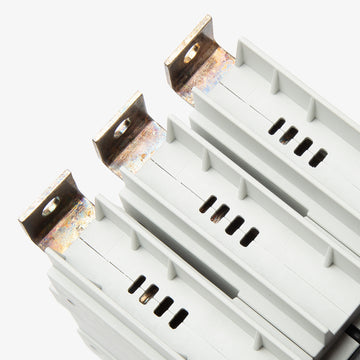

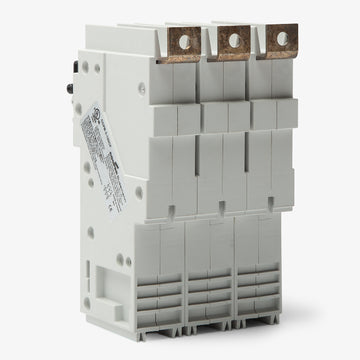

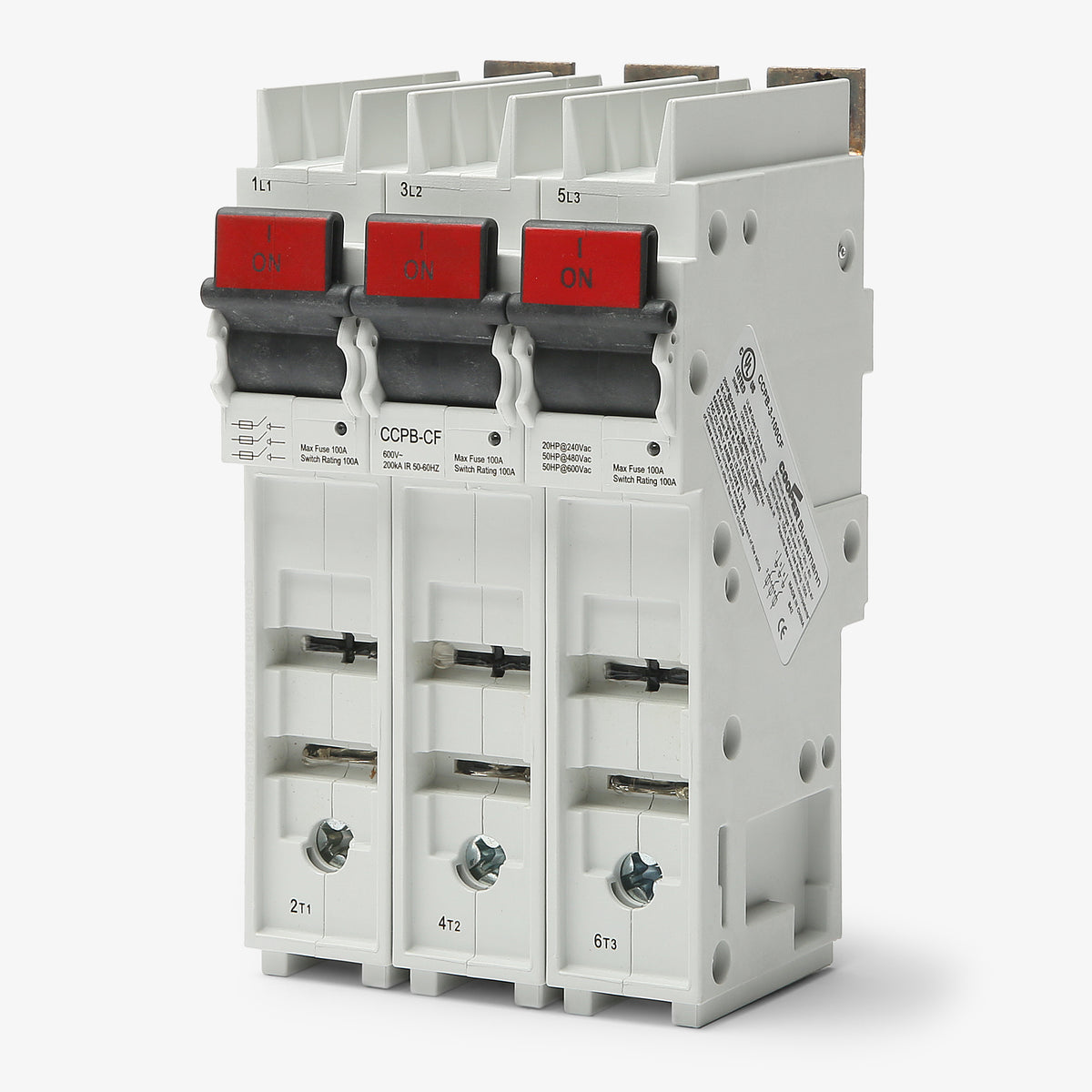

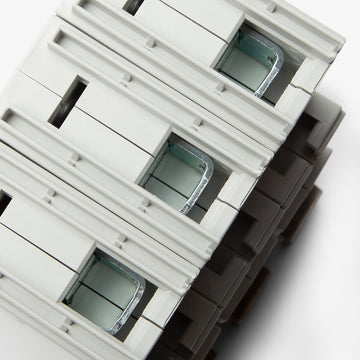

Eaton CCPB-3-100CF Disconnect Switch
The Eaton CCPB-3-100CF is a 3 Pole disconnect switch with a current rating of 100 Amps and a voltage rating of 600VAC. It has an short circuit current rating of 200kAIC. The CCPB-3-100CF has a bolt-on mounting type and it is used for electrical assemblies, panels and EOEMs applications.
Specifications
| Amperage | 100 A |
|---|---|
| Voltage | 600VAC |
| Series | CCPB |
| Poles | 3 |
| Phase | 3 |
|---|
| Mounting Type | Bolt-On |
|---|---|
| Terminal Connection | Box Lug Load Side |
| For Use With | Bussmann Series Quik–Spec Coordination Panelboards |
| Number Of Wires | 3 |
| Actuator Type | Switch Handle |
|---|---|
| Fusibility | Fusible |
| Approval | UL, CE |
|---|---|
| NEMA Rating | 1, 3R |
| Standards | RoHS |
| Temperature Rating | -20 to 75 °C |
| Brand | Eaton |
|---|---|
| MPN | CCPB-3-100CF |
| UPC | 51712268103 |
