Eaton CCV3100 Main Breaker
- 100
- 3 Pole
Quantity
Eaton CCV3100 Main Breaker
New
Quantity
Description
Eaton CCV3100 Main Breaker
The Eaton CCV3100 is a main breaker with a current rating of 100 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 240V. The CCV3100 has a feed-thru connection type and includes long time and instantaneous trip functions.
Specifications
Product FAQs
6 answersWhat applications is the Eaton CCV3100 designed for?
It is primarily used as a tenant main breaker in group metering stacks, as a main or emergency disconnect, or in feed-thru lug blocks for sub-feeding from an existing panel. It is also compatible with Type ECC unit enclosures.
What type of trip unit is equipped on the CCV3100?
This breaker features a thermal-magnetic trip mechanism, which provides both long-time thermal overload protection and instantaneous short-circuit protection.
How are the wire connections made on the CCV3100?

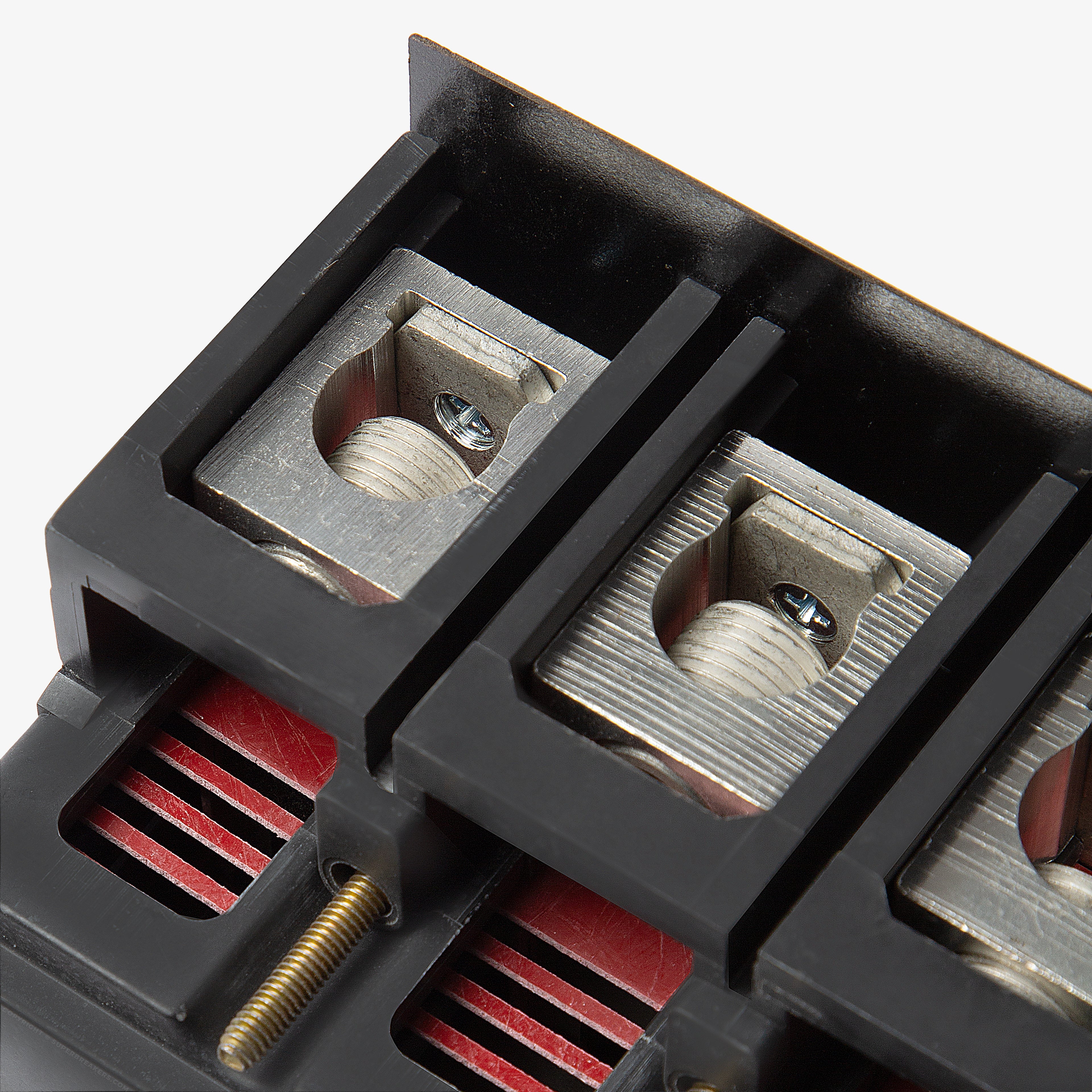

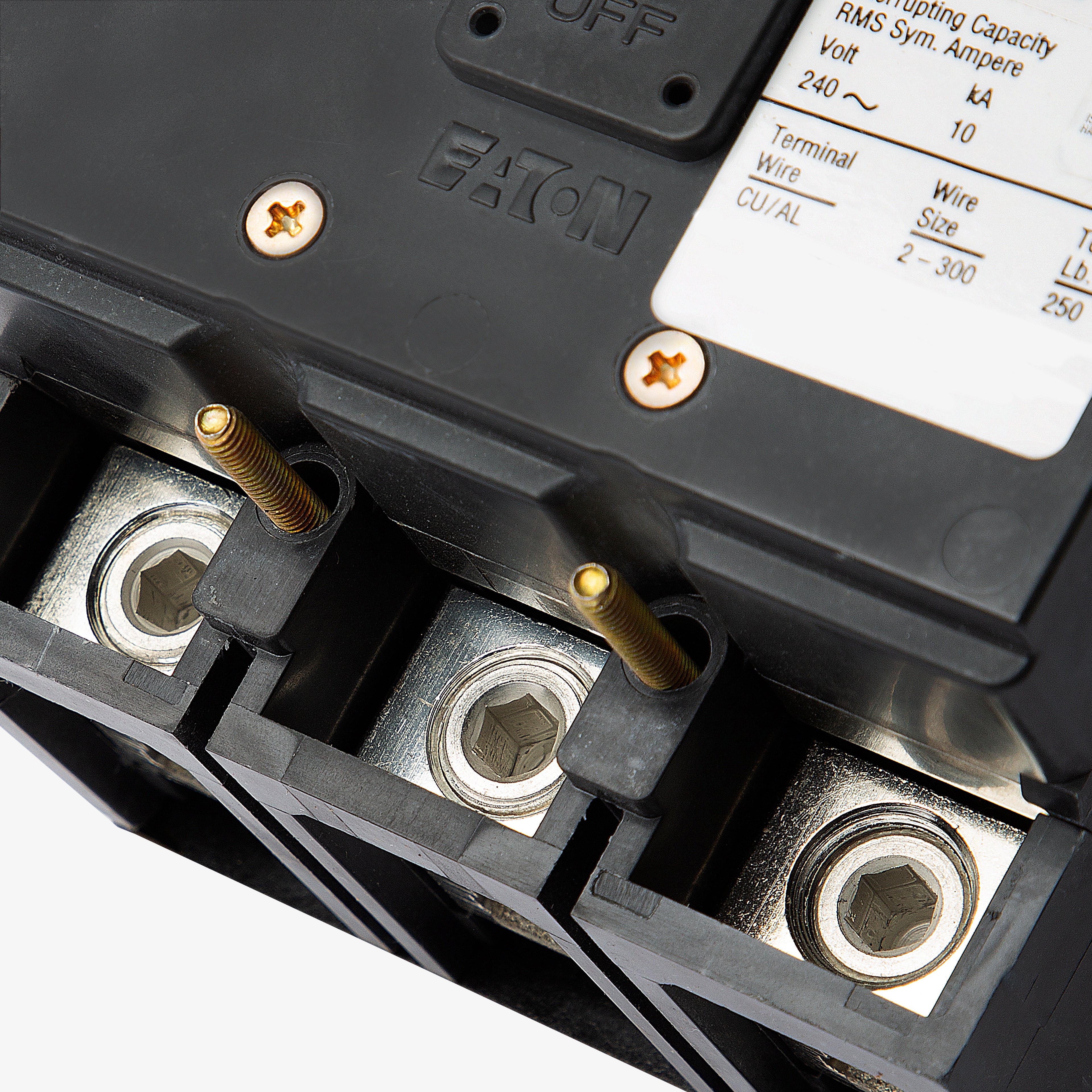

The breaker features a feed-thru connection type and uses standard line and load lugs for secure wire terminations.
What are the physical dimensions of the CCV3100 main breaker?

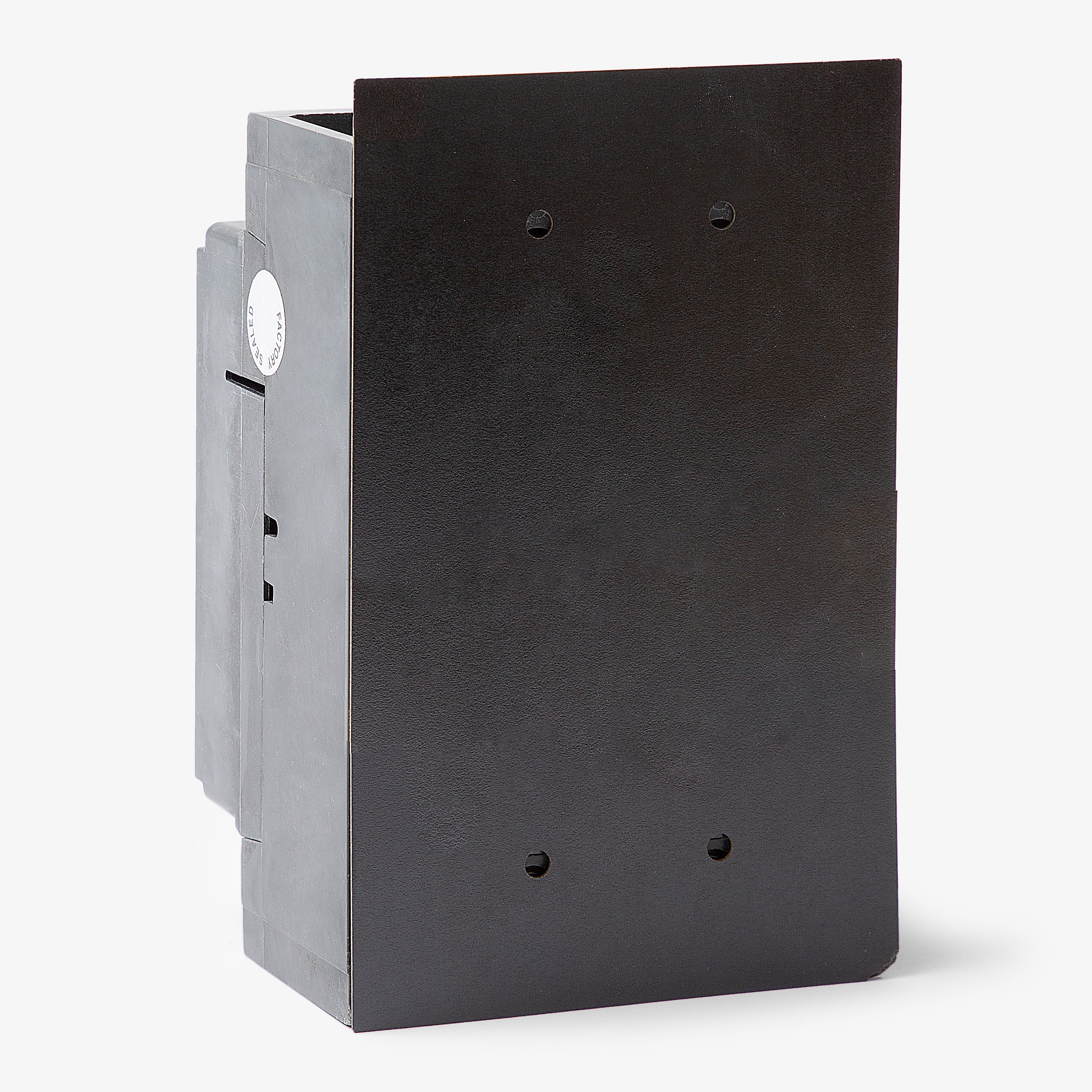

The molded case measures 8 inches high, 7 inches wide, and 4 inches deep. It weighs approximately 3 pounds.
What safety standards does the CCV3100 meet?
This tenant main circuit breaker is UL 489 certified for use in residential and light commercial distribution systems.
What is the UPC for the Eaton CCV3100?
The manufacturer UPC for this tenant main breaker is 786689518615.
