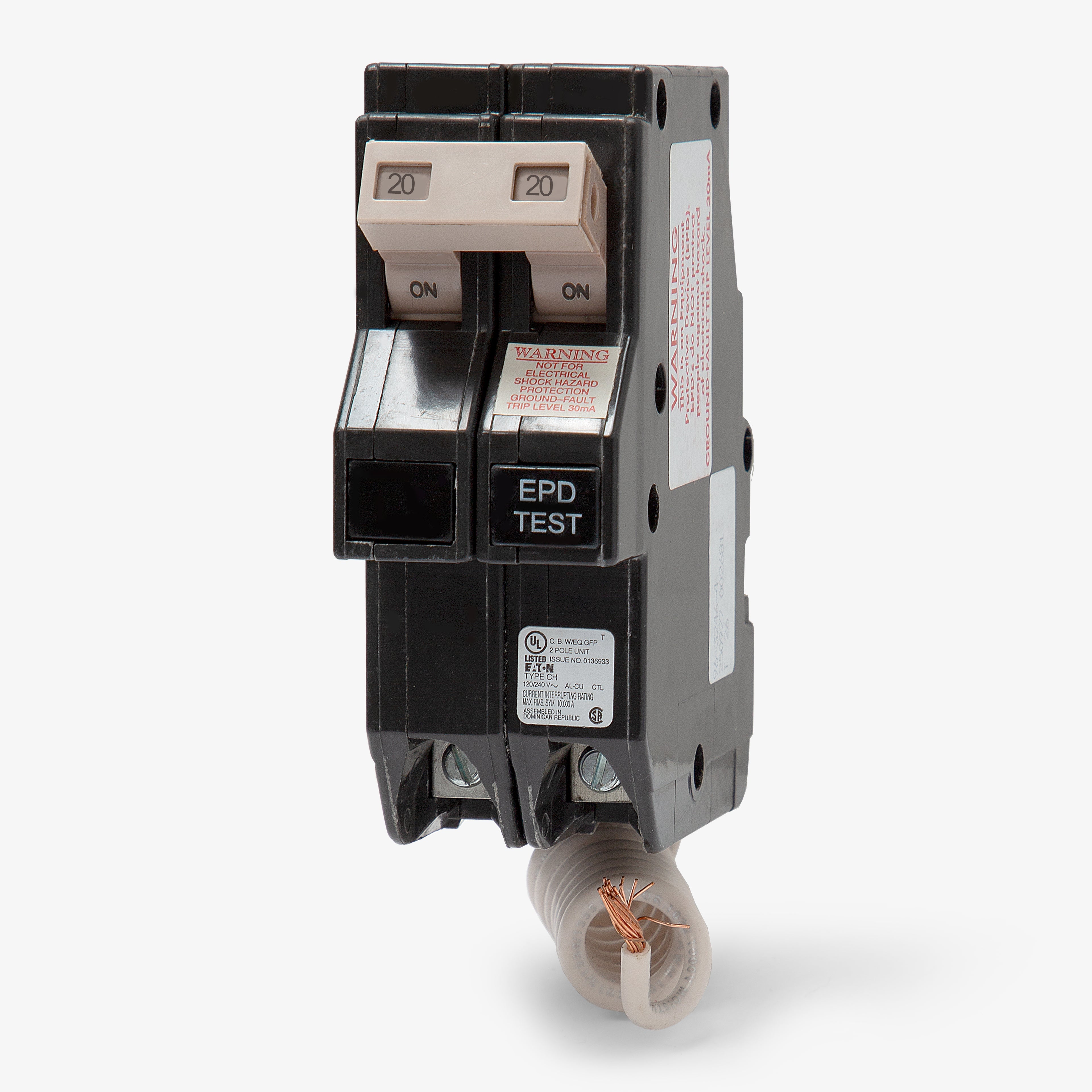

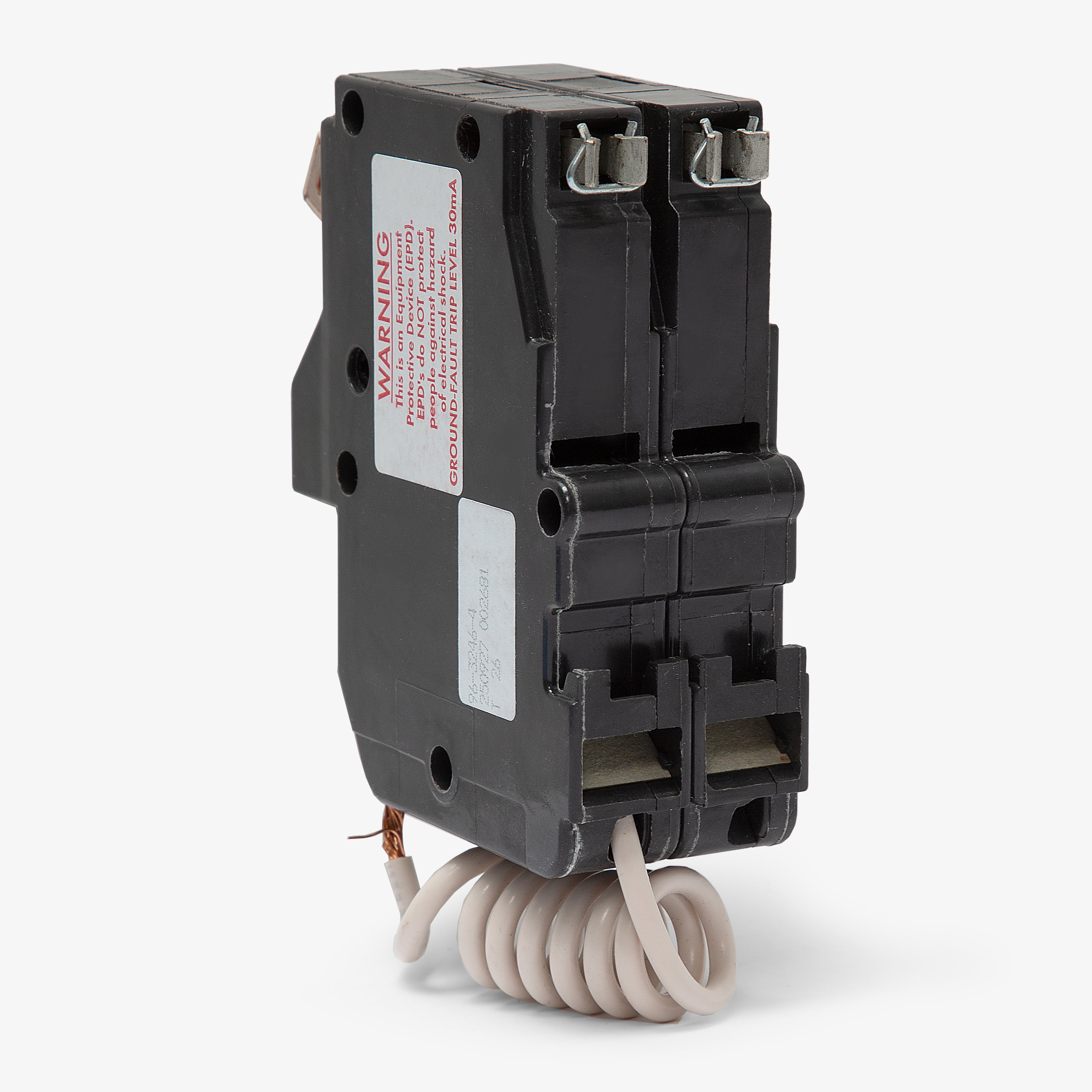

Eaton / Cutler-Hammer CH220EPD GFEP Miniature Circuit Breaker
- 20A
- 2 Pole
- Plug-On
Quantity
Eaton / Cutler-Hammer CH220EPD - 20A GFEP Miniature Circuit Breaker
New
Quantity
Description
Engineered for specialized applications, the CH220EPD delivers 30mA ground fault equipment protection (GFEP) to safeguard machinery. This 20-amp, two-pole miniature breaker operates at 120/240V with a thermal-magnetic trip mechanism. Designed exclusively for Eaton CH series load centers, this plug-on unit utilizes a 3/4-inch per pole format. It requires two panel spaces and includes a pigtail neutral connection. The 10 kAIC rated breaker is ideal for heat trace cables and well pumps.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | CH |
| Amperage | 20A |
| Poles | 2 |

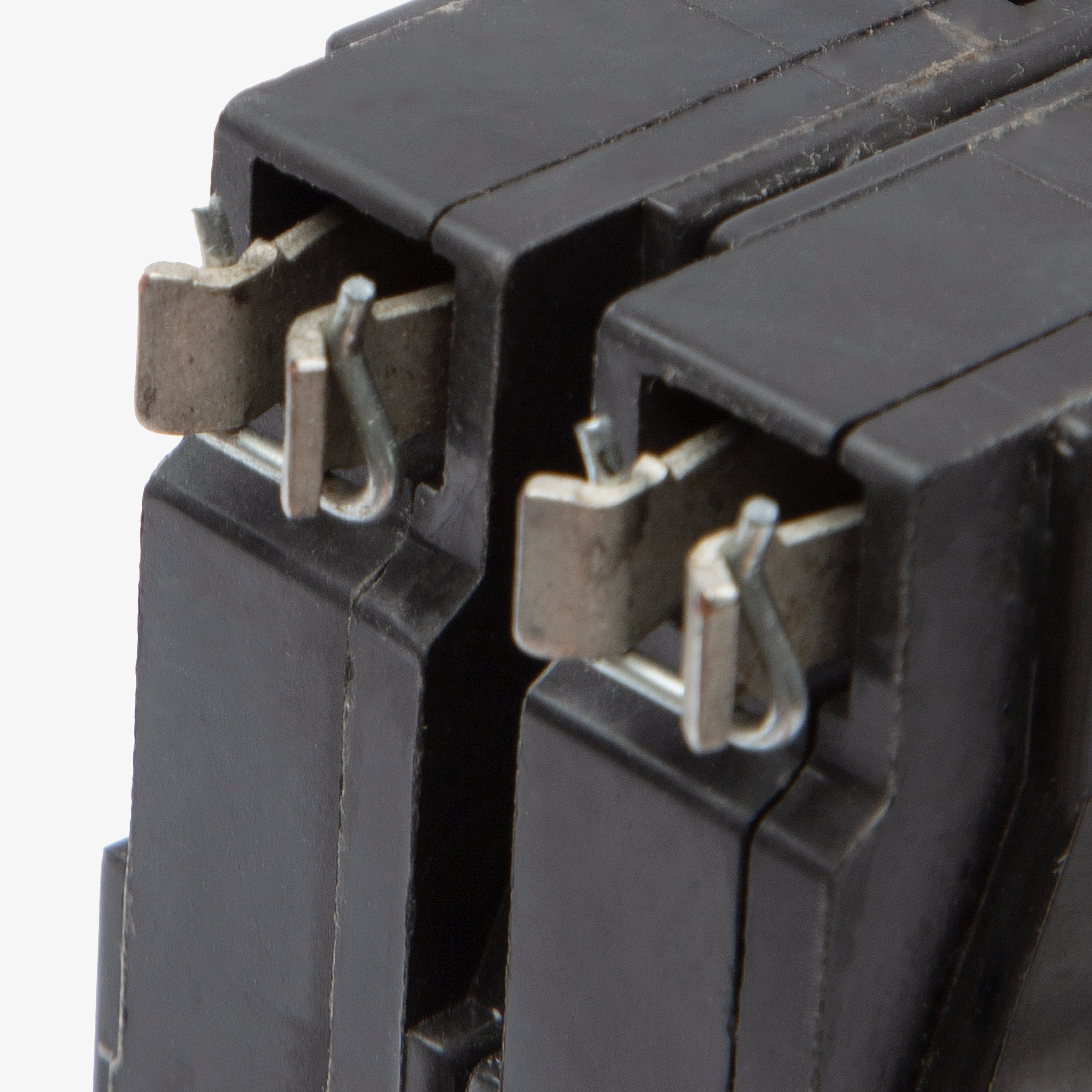

| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 489, HACR |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
6 answersWhat panels are compatible with the CH220EPD circuit breaker?
This breaker is designed exclusively for use in Eaton and Cutler-Hammer CH series load centers. It requires two 3/4-inch spaces, totaling 1.5 inches in width, and utilizes a plug-on mounting design.
Can I install this breaker in a Cutler-Hammer BR series panel?
No. The CH220EPD is a Type CH breaker with a 3/4-inch per pole width. It will not fit in BR series panels, which require 1-inch wide breakers. You must use a Type CH load center.
What is the difference between this EPD breaker and a standard GFI breaker?
The CH220EPD is an Equipment Protection Device (EPD) that trips at a 30mA ground fault threshold to protect machinery, such as heat trace cables or well pumps. A standard GFI breaker trips at a 4 to 6mA threshold to provide personnel protection.
Does the CH220EPD provide personnel ground fault protection?
No. This breaker provides 30mA equipment protection (GFEP) to prevent damage to machinery. It does not provide the 4 to 6mA Class A ground fault protection required by the NEC for personnel safety in wet areas.
How is the neutral connected on the CH220EPD?

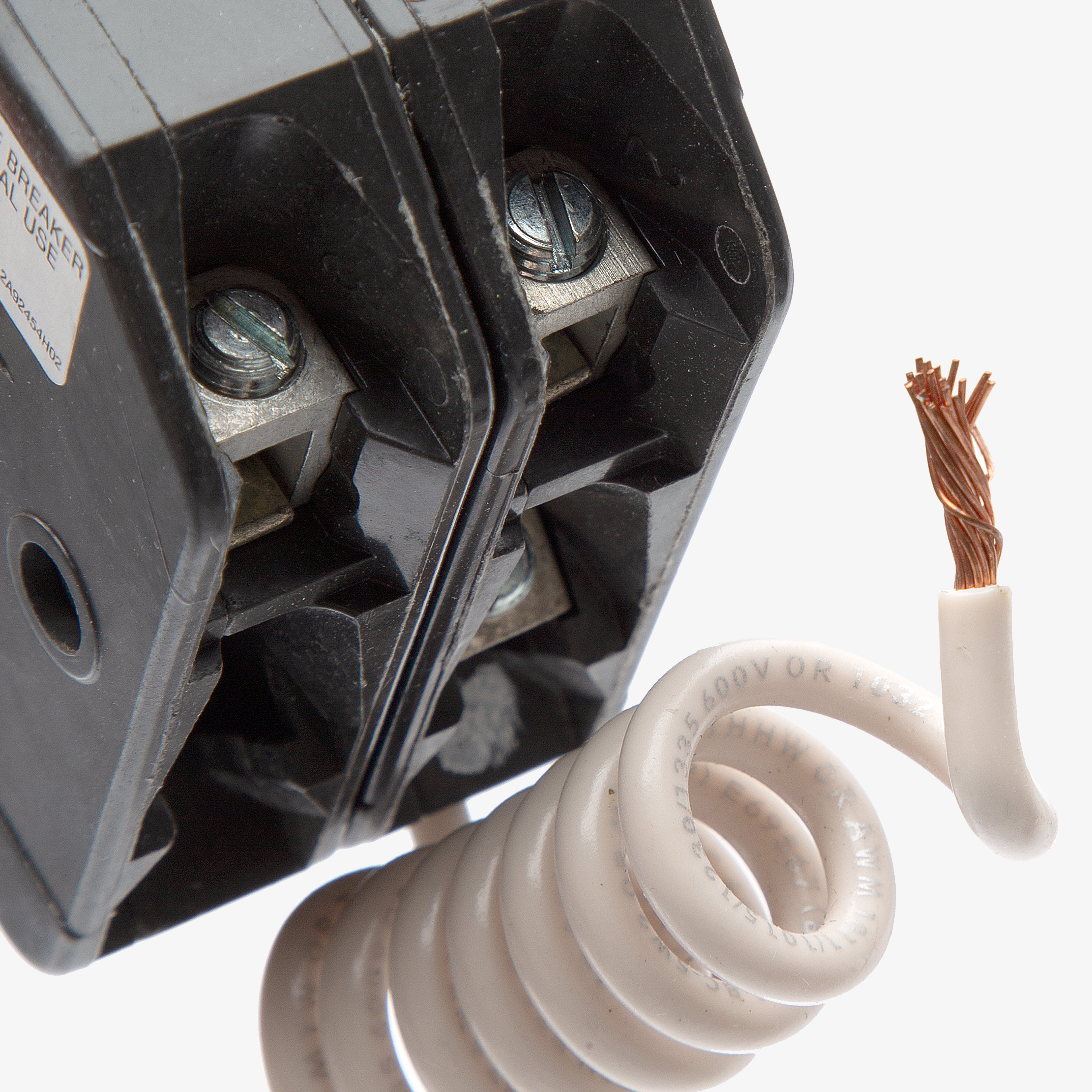

This breaker features a pigtail neutral connection. The coiled white pigtail wire must be connected directly to the neutral bus bar in the load center to ensure the ground fault equipment protection functions correctly.
Is the CH220EPD a direct replacement for older Cutler-Hammer versions?
Yes. Eaton acquired Cutler-Hammer, and the current Eaton CH220EPD is the exact replacement for older Cutler-Hammer breakers bearing the same CH220EPD catalog number.
