Eaton / Cutler-Hammer CH240GF GFCI Miniature Circuit Breaker
- 40A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
CH240GF
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CH240GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

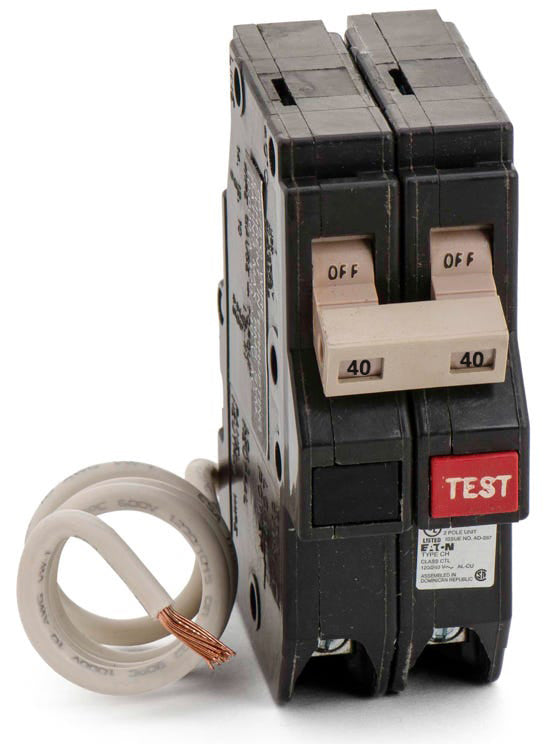

Eaton / Cutler-Hammer CH240GF - 40A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerCHFN230GF
30A GFCI Miniature Circuit Breaker
30A GFCI Miniature Circuit Breaker
20A GFCI Miniature Circuit Breaker
Description
Providing robust 5mA ground fault protection, this 40-amp circuit breaker safeguards heavy-duty residential appliances and commercial circuits. It combines standard thermal-magnetic overcurrent defense with life-safety GFCI capabilities. The two-pole unit installs into standard Eaton Type CH load centers. Note that this specific model has been superseded by the newer CH240GFT version.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | CH |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type CH Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated, Self-Test |
Product FAQs
8 answersWhich load centers are compatible with the CH240GF?
The CH240GF is designed exclusively for Eaton and Cutler-Hammer Type CH load centers. It requires two 3/4-inch spaces and will not fit in Type BR panels or load centers from other manufacturers.
How much panel space is required to install the CH240GF?
Because it is a 2-pole Type CH breaker, it requires two adjacent 3/4-inch spaces on the load center bus.
How is the neutral connected on the CH240GF breaker?
This breaker utilizes a pigtail neutral connection. The attached coiled white wire must be routed and secured directly to the neutral bus bar in the panel for the ground fault circuitry to function correctly.
What wire gauge is supported by the CH240GF terminals?
The box lug terminals on this breaker accommodate copper or aluminum conductors ranging from 14 AWG to 6 AWG.
Can the CH240GF be used on multi-wire branch circuits?
Yes, as a 2-pole 120/240VAC breaker, it can be used to protect 240V loads or 120/240V multi-wire branch circuits that share a single neutral conductor.
What is the ground fault trip threshold for the CH240GF?
This breaker provides Class A ground fault protection, meaning it is calibrated to trip when it detects a ground fault current of 5mA. This level of protection is designed specifically for personnel safety.
Does the CH240GF offer combination arc fault protection?
No, the CH240GF provides only ground fault (GFCI) and standard thermal-magnetic overcurrent protection. It does not include arc fault (AFCI) detection.
Are there alternate catalog numbers for the CH240GF?
Yes, depending on the packaging or specific generation, this breaker is frequently cross-referenced as CHN240GF or CH240GFT.
