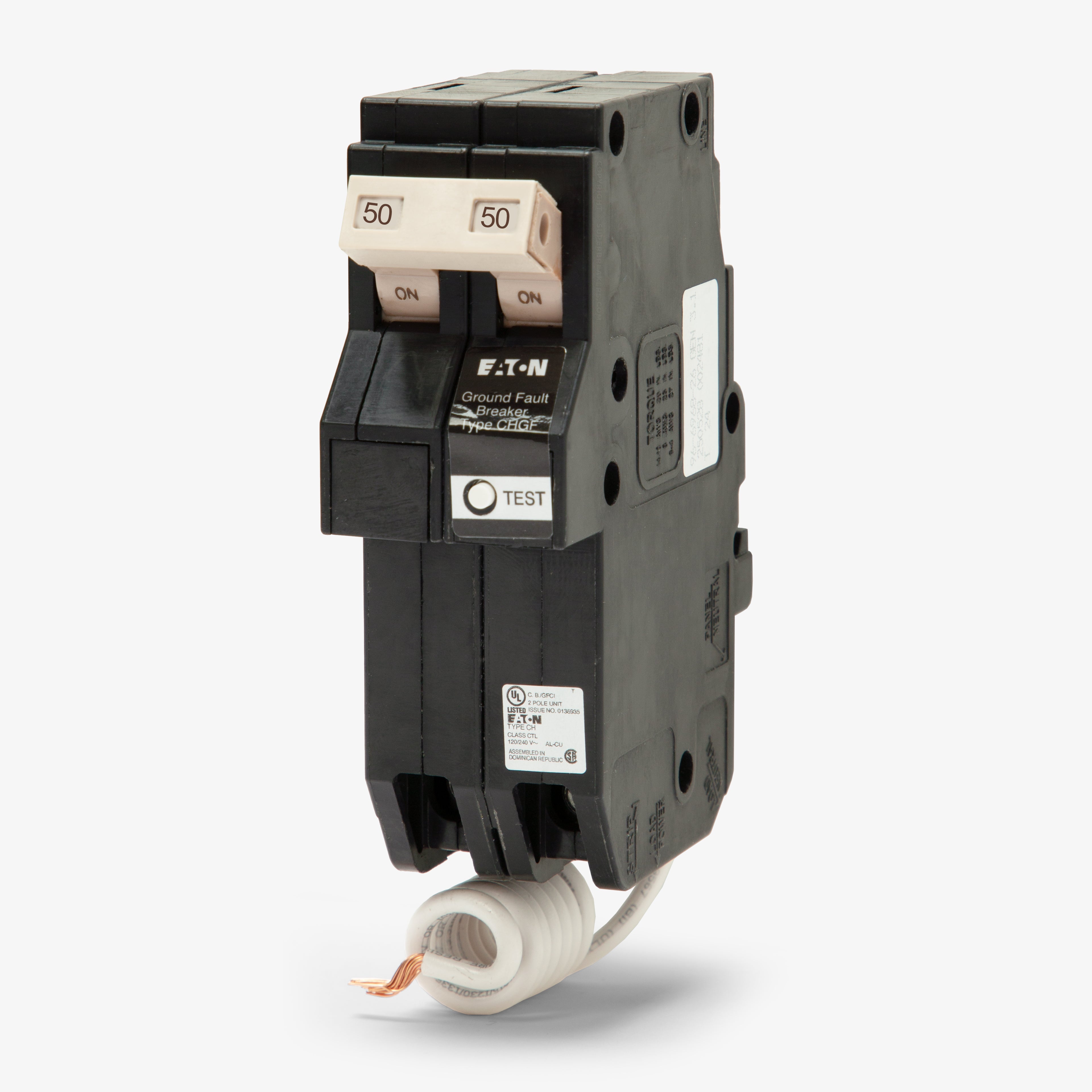

Eaton / Cutler-Hammer CHB250GF GFCI Miniature Circuit Breaker
- 50A
- 2 Pole

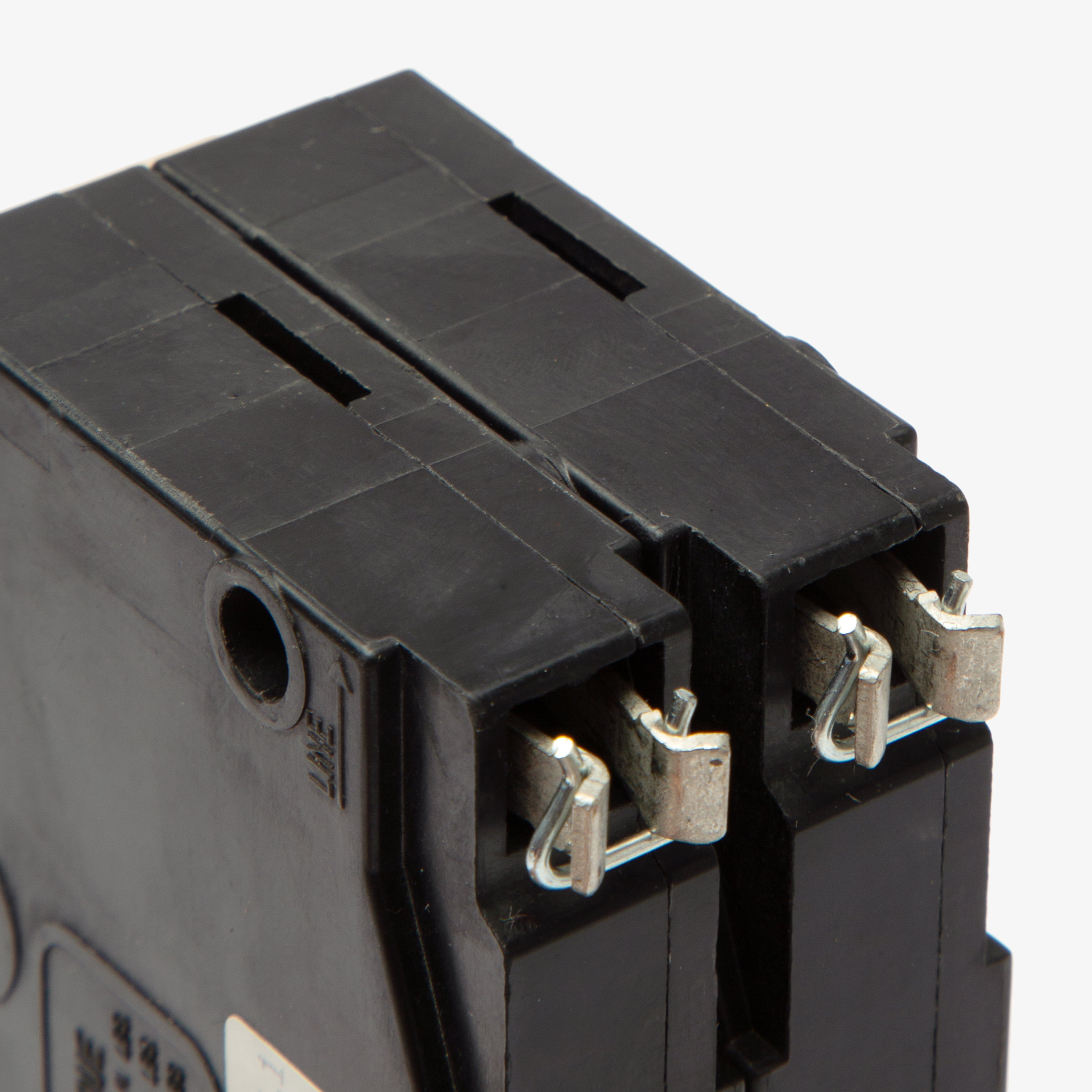

- Bolt-On
Eaton / Cutler-Hammer
CHB250GF
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHB250GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHB250GF - 50A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CHB250GF - 50A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB250GF-R |
| Series | CHB |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type PB Panelboards, Type PH Panelboards, Meter Panels |
| Wire Gauge | 14-6 AWG |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Sold out
Quantity
Eaton / Cutler-Hammer CHB250GF - 50A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB250GF-R |
| Series | CHB |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type PB Panelboards, Type PH Panelboards, Meter Panels |
| Wire Gauge | 14-6 AWG |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
40A GFCI Miniature Circuit Breaker
20A GFCI Miniature Circuit Breaker
15A GFCI Miniature Circuit Breaker
Description
Part of Eaton's CHB series, this 50A ground fault circuit interrupter provides essential 5mA personnel protection for commercial electrical systems. The two-pole, 120/240V breaker utilizes a bolt-on mounting style to ensure a secure, vibration-resistant connection in Cutler-Hammer Type PB and PH panelboards. Featuring a 10 kAIC interrupting rating and box lug terminals accepting 14-6 AWG wire, it is ideal for meeting NEC safety codes in areas requiring dedicated GFCI circuits.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB250GF-R |
| Series | CHB |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type PB Panelboards, Type PH Panelboards, Meter Panels |
| Wire Gauge | 14-6 AWG |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
5 answersWhich panelboards accept the CHB250GF breaker?
This breaker is designed for commercial applications utilizing Cutler-Hammer and Eaton Type PB panelboards, Type PH panelboards, and compatible meter panels.
How is the neutral connection established for this GFCI breaker?

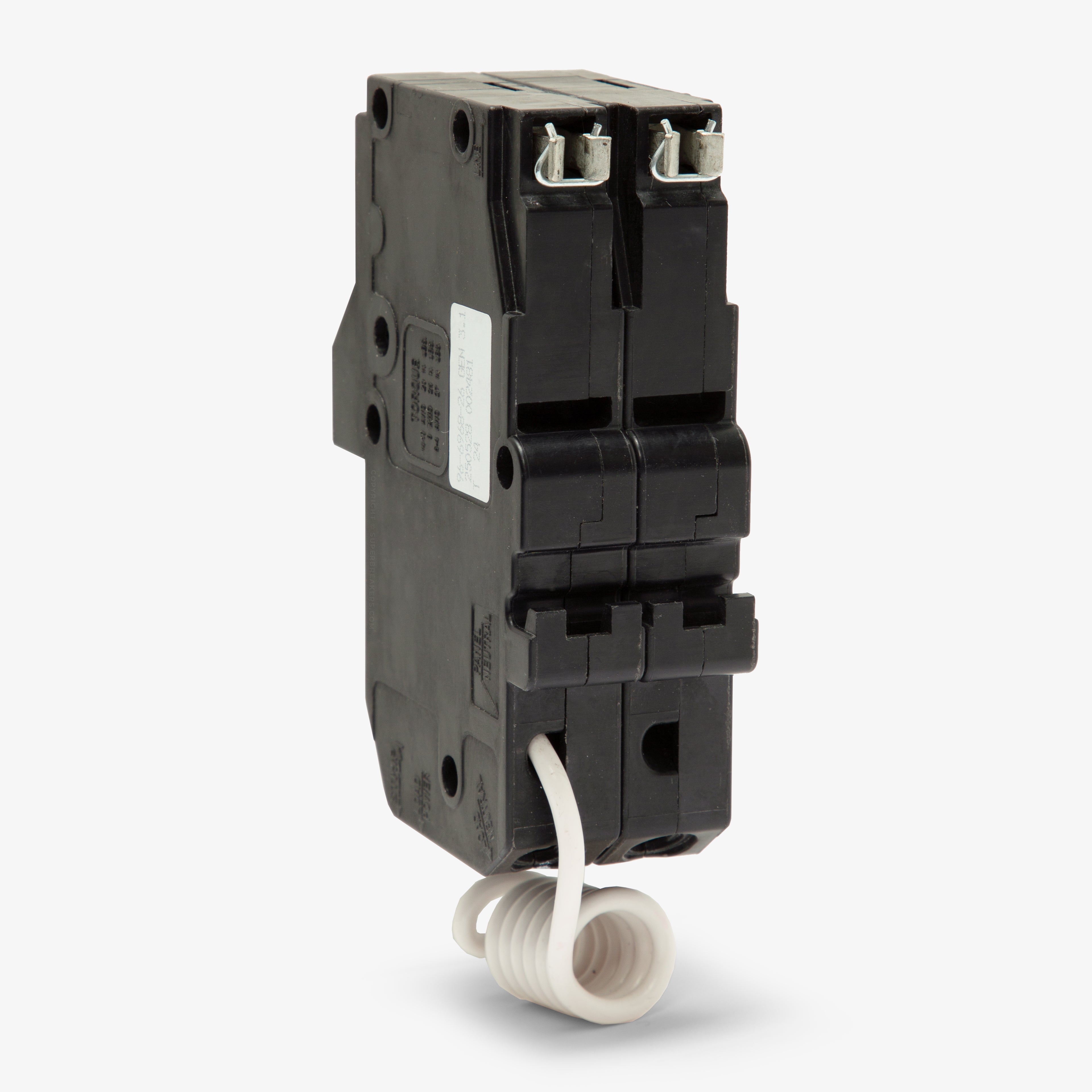

This unit utilizes a pigtail neutral wire that must be connected directly to the neutral bus bar in the panel to ensure proper ground fault detection.
Does the CHB250GF provide personnel or equipment ground fault protection?
The GF suffix indicates this breaker provides Class A 5mA ground fault protection, which is designed for personnel safety to meet NEC requirements for dedicated GFCI circuits.
What does the LIG trip function code indicate?
The LIG designation means this thermal magnetic breaker includes Long-Time, Instantaneous, and Ground-Fault trip functions, providing comprehensive overload, short circuit, and personnel protection.
Are Cutler-Hammer and Eaton CHB250GF breakers interchangeable?
Yes. Eaton acquired Cutler-Hammer, and the CHB250GF is the exact same component under both brand names. They are fully interchangeable in listed PB and PH panels.
