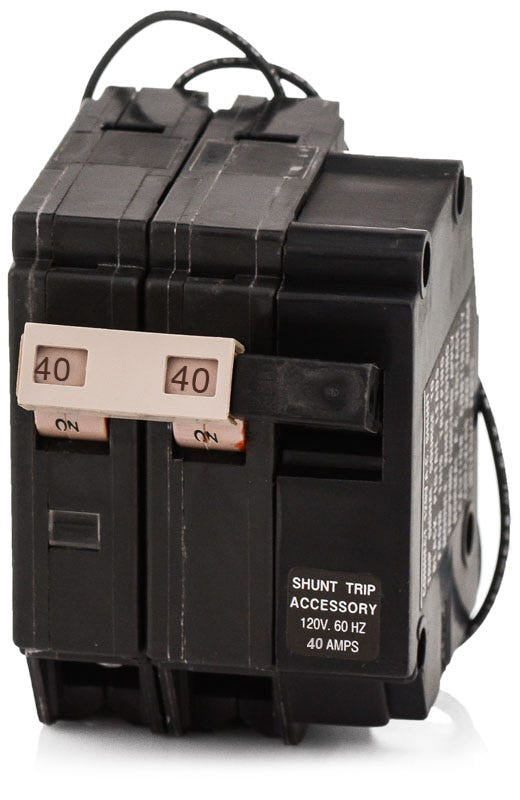

Eaton / Cutler-Hammer CHF240ST Miniature Circuit Breaker
- 40A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
CHF240ST
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHF240ST
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHF240ST - 40A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
30A 2 Pole Miniature Circuit Breaker
20A 2 Pole Miniature Circuit Breaker
Description
Providing advanced control for commercial and residential systems, this 40-amp unit integrates a 120VAC shunt trip mechanism. This allows facility managers to remotely open the circuit during emergencies or specific operational sequences. It mounts into standard Eaton Type CH enclosures, occupying three 3/4-inch spaces due to the attached accessory.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHF240ST |
| Series | CHF |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type CH Load Centers |
| Wire Gauge | 14-2 AWG (Cu/Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (120VAC), Trip Flag |
| Standards | HACR Rated, UL 489 |
| Approval | UL, UL 489 |
| Temp Rating | 60C to 75C |
| Construction Features | Visual Trip Indicator, HACR Rated, Common Trip |
Product FAQs
7 answersWhich load centers are compatible with the CHF240ST?
This plug-on breaker is designed exclusively for Eaton and Cutler-Hammer Type CH load centers. It features a 3/4-inch format and will not fit in Type BR or competitor panels.
How much panel space does the CHF240ST require?
The CHF240ST requires three 3/4-inch spaces in a Type CH panel. The two-pole breaker occupies two spaces, and the integrated shunt trip mechanism requires a third adjacent space.
What function does the shunt trip provide on the CHF240ST?
The factory-installed 120VAC shunt trip allows the breaker to be opened remotely. This is typically used for emergency power-off systems, fire alarms, or automated control sequences that require remote disconnection of the circuit.
How does the trip flag function on CHF series breakers?
The CHF240ST includes a mechanical trip flag that appears when the breaker trips. This visual indicator allows electricians and facility managers to quickly distinguish between a breaker that has tripped due to a fault and one that was manually switched off.
What type of trip curve does the CHF240ST utilize?
This breaker uses a fixed thermal-magnetic trip mechanism. The thermal element provides long-time delay protection against mild overloads, while the magnetic element provides instantaneous tripping during severe short-circuit conditions.
Does the CHF240ST feature a common trip mechanism?
Yes, this two-pole breaker includes an internal common trip connection. If an overcurrent or short circuit occurs on either leg, both poles will trip simultaneously to safely disconnect all power to the circuit.
What wire sizes and materials are compatible with the CHF240ST lugs?
The box lug terminals accept 14 AWG through 2 AWG wire. They are rated for use with both copper and aluminum conductors.
