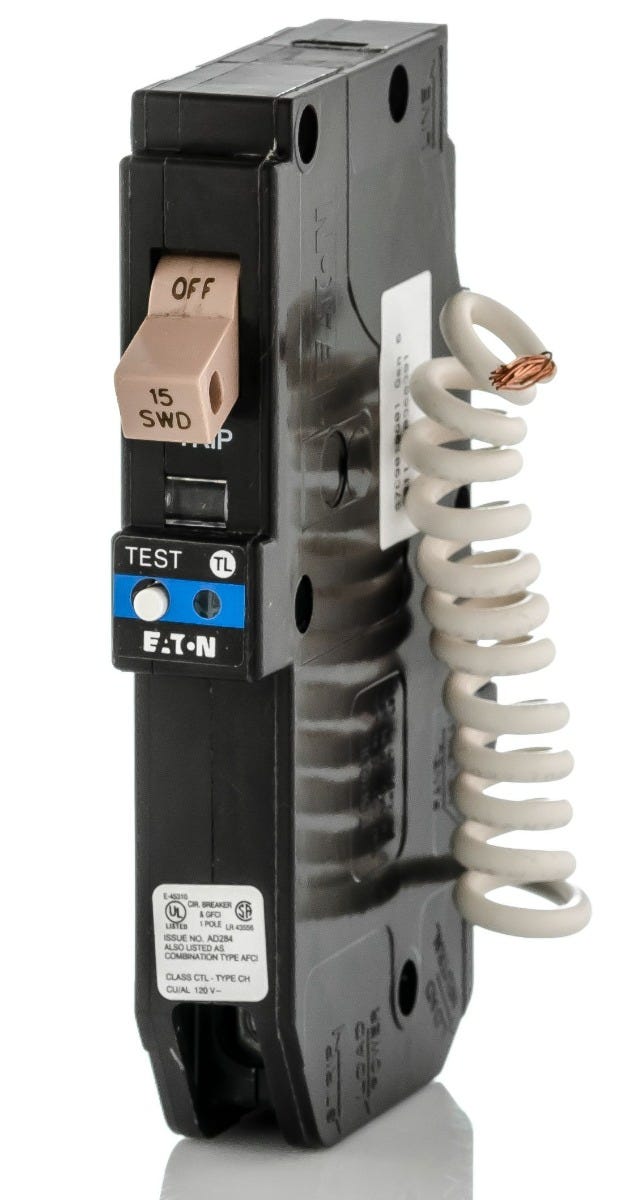

Eaton / Cutler-Hammer CHFN115DF Dual Function Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Quantity
Eaton / Cutler-Hammer CHFN115DF - 15A Dual Function Miniature Circuit Breaker
New
Quantity
Description
The Eaton CHFN115DF is a dual function AFCI/GFCI breaker designed for residential systems. Operating at 15A, it provides an all-in-one solution for meeting NEC code requirements. Engineered for seamless integration, it installs into Eaton CH panelboards. It features a plug-on mounting style, includes a pigtail neutral, and replaces the CHFAFGF115. Providing a 10 kAIC rating, it utilizes thermal-magnetic trip technology.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | CHFN |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton CH Load Centers |
| Wire Gauge | 14-6 AWG |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | Dual Function (AFCI/GFCI) |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 489, UL 943, UL 1699, CSA C22.2 No. 5 |
| Approval | UL, CSA |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Visual Trip Indicator, Self-Test |
Product FAQs
5 answersWhat load centers are compatible with the CHFN115DF?
This breaker is designed exclusively for Eaton CH series load centers, which utilize a 3/4-inch breaker spacing. It is not compatible with Eaton BR panels or other 1-inch load centers.
Does the CHFN115DF replace older Eaton CH dual function breakers?
Yes, the CHFN115DF is the direct replacement for the discontinued CHFAFGF115 pigtail dual function breaker.
Can I install this pigtail breaker in a Plug-on Neutral panel?
Yes, this pigtail neutral breaker can be installed in a Plug-on Neutral (PON) load center. However, you must manually route and terminate the coiled white pigtail wire to the neutral bus bar.
What protection does a dual function breaker provide?
A dual function breaker combines Arc Fault Circuit Interrupter (AFCI) and Ground Fault Circuit Interrupter (GFCI) technology in a single device. It mitigates the risk of electrical fires from arcing while also protecting personnel from ground fault shocks, satisfying NEC requirements for kitchens, laundry areas, and similar locations.
How is the pigtail neutral wired during installation?
The coiled white pigtail wire attached to the breaker must be terminated directly to the panel neutral bus bar. The neutral wire from the branch circuit connects to the designated neutral load terminal on the breaker itself.
