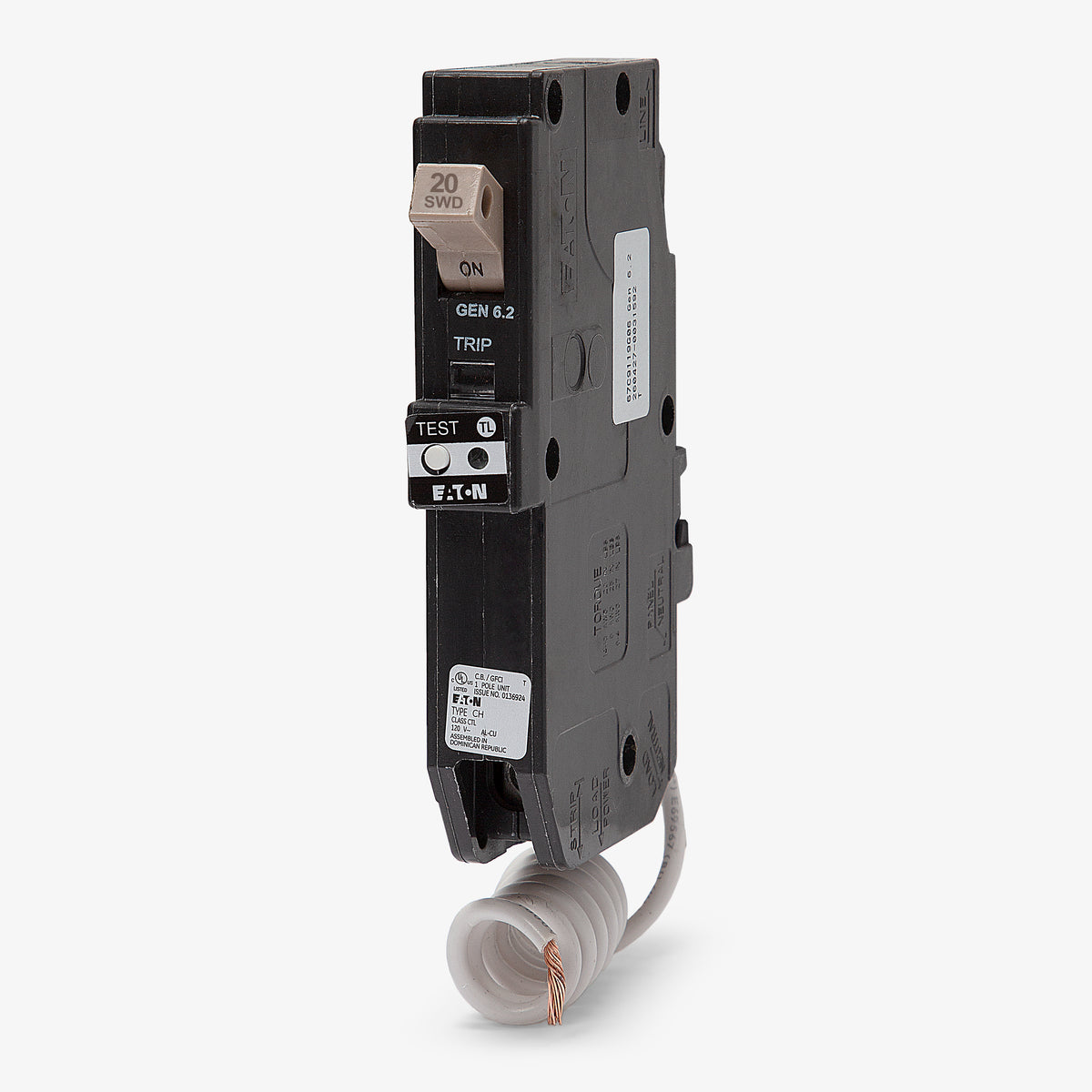

Eaton / Cutler-Hammer CHFN120GF GFCI Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Quantity
Eaton / Cutler-Hammer CHFN120GF - 20A GFCI Miniature Circuit Breaker
New
Quantity
Description
Engineered for residential safety, the Eaton CHFN120GF safeguards circuits in kitchens and bathrooms. This 1-pole, 20A GFCI breaker features a thermal-magnetic trip mechanism to handle standard overloads. Utilizing a traditional pigtail neutral, it installs into standard Eaton CH load centers and replaces legacy CHFGF120 and CH120GF breakers. Rated 10kAIC at 120/240VAC, the unit includes a visual trip indicator and is HACR and SWD rated for use with air conditioning equipment.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHFN120GF |
| Series | CHFN |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Load Centers |
| Wire Gauge | 14-6 AWG |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 489, UL 943, CSA C22.2 No. 5 |
| Approval | UL, CSA |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Visual Trip Indicator, Self-Test |
Product FAQs
7 answersWhich load centers are compatible with the CHFN120GF breaker?

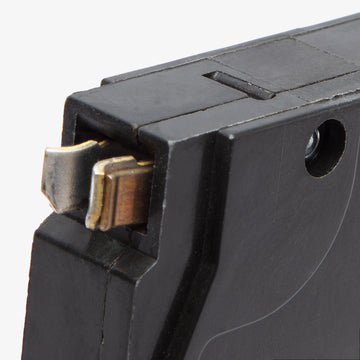

This breaker is designed exclusively for use in Eaton and legacy Cutler-Hammer Type CH load centers. It features a plug-on mounting design but will not fit in Type BR panels or enclosures from other manufacturers.
Does the CHFN120GF require a plug-on neutral load center?

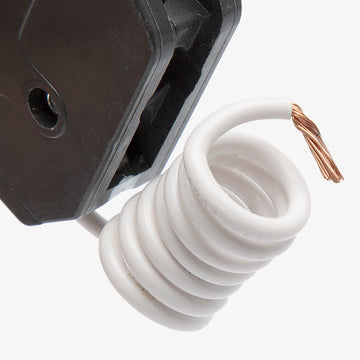

No. This breaker features a pigtail neutral connection, utilizing a coiled wire that connects directly to the panel's neutral bus bar. It is designed for standard Type CH panels that lack plug-on neutral capabilities.
What is the difference between the CHFN120GF and the CHFP120GF?
The CHFN120GF features a pigtail neutral connection designed for older or standard-neutral load centers. The CHFP120GF is the plug-on neutral (PON) variant of this 20-amp GFCI breaker, engineered strictly for newer Eaton CH PON panels.
Which legacy part numbers does the CHFN120GF replace?
The CHFN120GF is the direct modern replacement for earlier Eaton and Cutler-Hammer 20A GFCI breakers, specifically superseding obsolete catalog numbers CHFGF120 and CH120GF.
Does this breaker provide dual-function AFCI/GFCI protection?
No. The CHFN120GF provides dedicated Ground Fault Circuit Interrupter (GFCI) protection to safeguard against electrical shock. It does not contain Arc Fault (AFCI) detection circuitry.
Can the CHFN120GF be installed on a multi-wire branch circuit with a shared neutral?
No. Because this is a 1-pole GFCI breaker, it monitors the current imbalance between the ungrounded (hot) conductor and its dedicated neutral. Installing it on a shared neutral circuit will cause immediate nuisance tripping.
What wire gauge can be used with the terminals on the CHFN120GF?
The box lug terminals on this breaker are rated to accept copper or aluminum wire sizes ranging from 14 AWG up to 6 AWG. Always verify that your chosen wire gauge meets NEC requirements for a 20-amp circuit.
