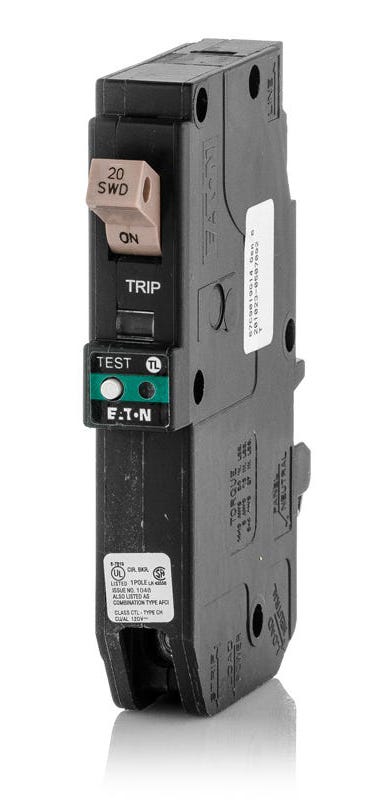

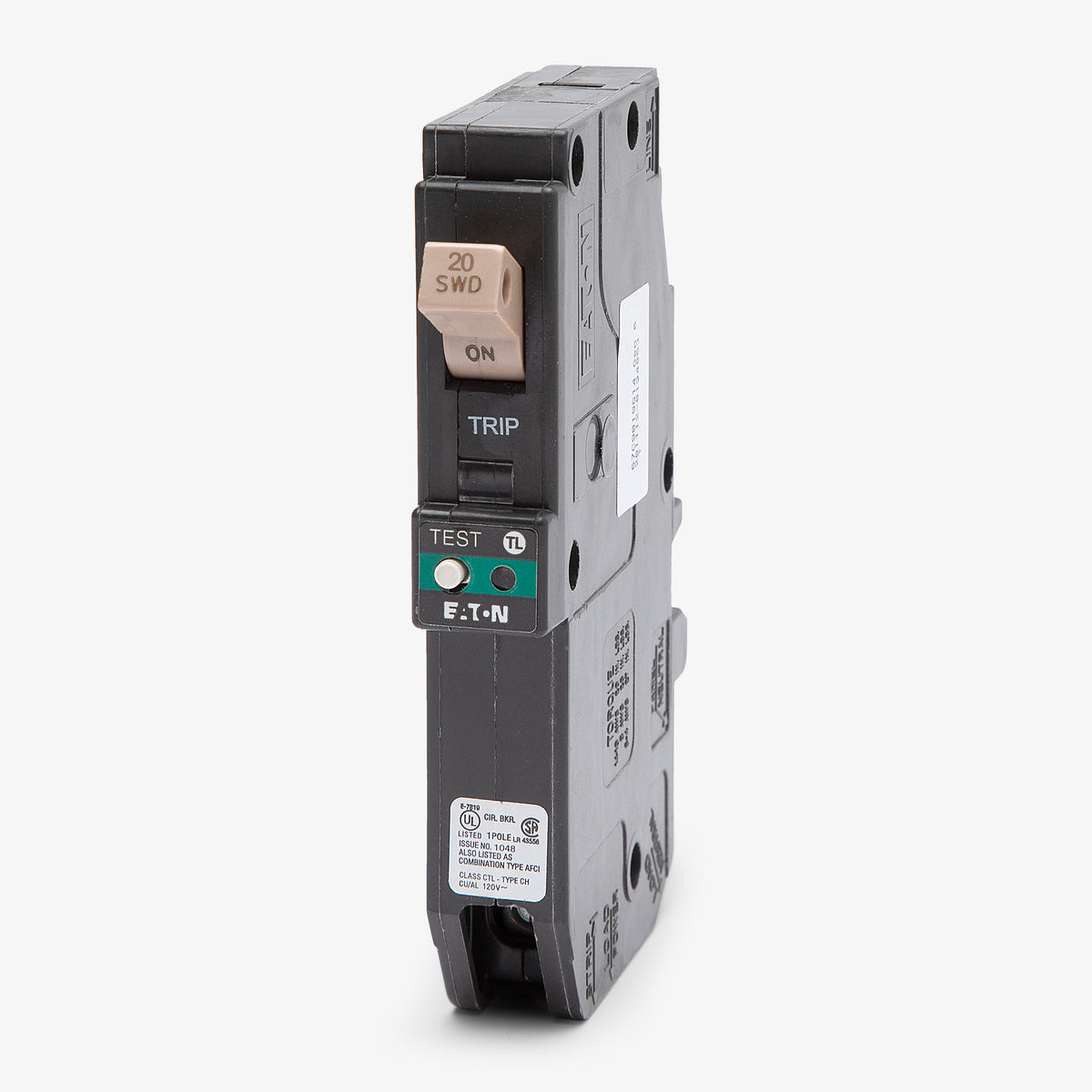

Eaton / Cutler-Hammer CHFP120AF AFCI Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Quantity
Eaton / Cutler-Hammer CHFP120AF - 20A AFCI Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CHFP120AF - 20A AFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | CH |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Plug-On Neutral Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Plug-On Neutral |
| Standards | UL 1699, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
Quantity
Eaton / Cutler-Hammer CHFP120AF - 20A AFCI Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | CH |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Plug-On Neutral Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Plug-On Neutral |
| Standards | UL 1699, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
Description
Engineered for residential safety, the Eaton CHFP120AF delivers 20A of single-pole arc-fault protection. It mitigates fire hazards by detecting dangerous arcing conditions in branch circuits. This breaker mounts into Eaton CH plug-on neutral load centers, eliminating the pigtail wire for a cleaner installation. It replaces legacy CHFCAF120PN and CH120CAFPN models. Rated at 10kAIC, the unit features thermal-magnetic trip technology, LED diagnostics, and automated self-testing.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | CH |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Plug-On Neutral Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Plug-On Neutral |
| Standards | UL 1699, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
Product FAQs
8 answersWhich load centers accept the CHFP120AF circuit breaker?
This breaker is designed exclusively for Eaton CH series Plug-On Neutral load centers. It will not fit standard CH panels that require a pigtail connection or panels from other manufacturers.
Does the CHFP120AF require a pigtail wire for the neutral connection?

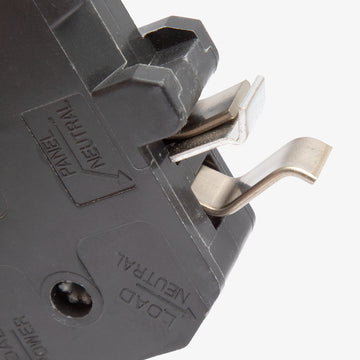

No. This is a Plug-On Neutral breaker. It connects directly to the neutral bar in compatible Eaton CH load centers, eliminating the need for a pigtail wire and reducing gutter clutter.
Which legacy Eaton catalog numbers does the CHFP120AF replace?
This model serves as a direct replacement for older Eaton CH plug-on neutral AFCI breakers, including catalog numbers CHFCAF120PN and CH120CAFPN.
What is the difference between the CHFP120AF and the CHFN120AF?
The CHFP120AF features a Plug-On Neutral connection designed for newer Eaton CH panels, while the CHFN120AF includes a standard pigtail wire for the neutral connection in legacy load centers.
How do I identify the cause of a trip on the CHFP120AF?

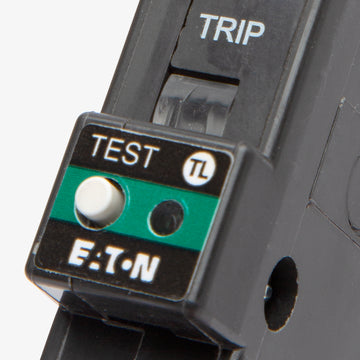

This breaker features built-in LED diagnostics. After resetting a tripped breaker, the red LED will blink a specific code from one to six flashes to indicate the fault type, such as a series arc, parallel arc, or overvoltage.
What types of faults does this combination AFCI breaker detect?
As a combination arc fault circuit interrupter, it detects both high-current parallel arcs and low-current series arcs to mitigate electrical fire hazards in branch circuits and connected cords.
What wire sizes are accepted by the terminals on this AFCI breaker?
The box lugs accommodate copper or aluminum wiring ranging from 14 AWG to 6 AWG, providing flexibility for various branch circuit installations.
What trip functions are included in the CHFP120AF?
This thermal-magnetic breaker includes Long-Time and Instantaneous trip functions to protect against standard overloads and short circuits, in addition to its arc fault detection capabilities.
