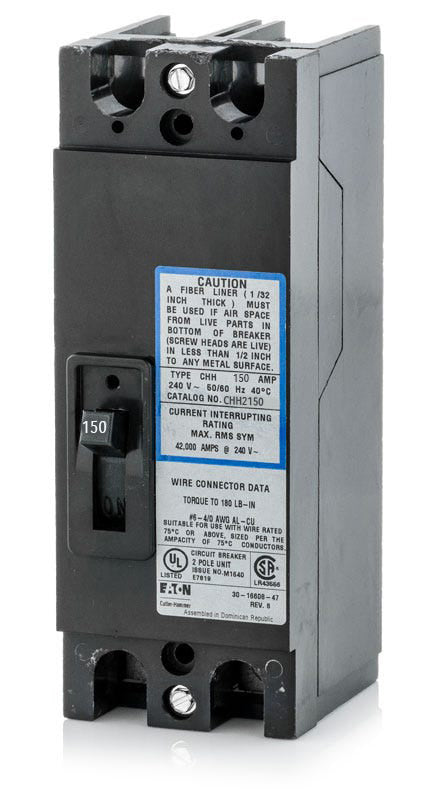

Eaton / Cutler-Hammer CHH2150 Molded Case Circuit Breaker
- 150A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
CHH2150
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHH2150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHH2150 - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerCHH2175H4X
175A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerCHH3150H2X
150A 3 Pole Molded Case Circuit Breaker
Description
Part of the CHH series, the Eaton CHH2150 is a 150A, two-pole molded case circuit breaker designed for commercial tenant main applications. It features a thermal-magnetic trip unit for reliable overcurrent protection. This bolt-on breaker mounts into Eaton modular metering stacks, including 1MM, 35MM, 37MM, 35SS, and 37SS configurations. It serves as a drop-in replacement for the CVH2150XMM. Delivering a robust 100 kAIC interrupting capacity at 120/240VAC, this unit is HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHH2150 |
| Series | CHH |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120/240VAC |
| Frame Type | CHH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Modular Metering Stacks (1MM, 35MM, 37MM, 35SS, 37SS) |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Tenant Main |
Product FAQs
6 answersWhat equipment is the CHH2150 designed to be installed in?
This breaker is specifically designed for use as a tenant main breaker in Eaton modular metering stacks, including the 1MM, 35MM, 37MM, 35SS, and 37SS series enclosures.
What wire sizes and materials are accepted by the lugs on this breaker?
The factory-installed lugs accept copper or aluminum conductors ranging from 2/0 AWG to 300 kcmil.
How does the CHH2150 connect to the metering stack bus?
It features a bolt-on mounting style, ensuring a secure, vibration-resistant connection to the metering stack busbars.
What does the 100kAIC rating signify for this specific breaker?
The 100kAIC rating indicates the maximum fault current this breaker can safely interrupt at 240VAC without sustaining damage. This high interrupting capacity makes it suitable for commercial or industrial metering applications with high available fault currents.
Are there lower interrupting capacity versions of this 150A tenant main breaker available?
Yes. If your application does not require a 100kAIC rating, Eaton offers the CH2150 for 10kAIC, the CHH2150H2X for 25kAIC, and the CHH2150H4X for 42kAIC.
What type of trip mechanism does the CHH2150 utilize?
It uses a fixed thermal-magnetic trip unit. The thermal component provides long-time protection against sustained overloads, while the magnetic component provides instantaneous protection against short circuits.
