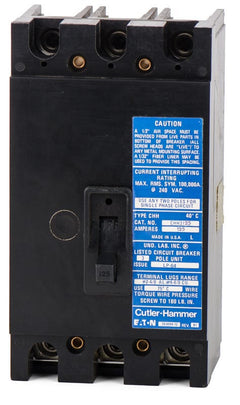

Eaton / Cutler-Hammer CHH3200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
CHH3200
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHH3200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHH3200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer CHH3200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHH3200 |
| Series | CHH |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC |
| Frame Type | CHH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Modular Metering Stacks (1MM, 35MM, 37MM, 35SS, 37SS) |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Tenant Main |
Quantity
Eaton / Cutler-Hammer CHH3200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHH3200 |
| Series | CHH |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC |
| Frame Type | CHH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Modular Metering Stacks (1MM, 35MM, 37MM, 35SS, 37SS) |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Tenant Main |
Similar Items
225A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Serving as a robust tenant main, this 200A thermal-magnetic breaker is specifically designed for commercial and industrial applications. It installs seamlessly into Eaton 1MM, 35MM, 37MM, 35SS, and 37SS modular metering stacks. Featuring a high interrupting rating of 100kA at 240VAC, the unit ensures superior fault protection. Note that this legacy CHH series component has been superseded by the CVH3200X for newer installations.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHH3200 |
| Series | CHH |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC |
| Frame Type | CHH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Modular Metering Stacks (1MM, 35MM, 37MM, 35SS, 37SS) |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Tenant Main |
Product FAQs
5 answersWhich Eaton metering stacks are compatible with the CHH3200?
This breaker is designed for use with Eaton modular metering stacks. It is compatible with the 1MM, 35MM, 37MM, 35SS, and 37SS series enclosures.
What conductor materials and sizes are supported by the factory lugs?
The factory-installed lugs on this breaker accept either copper or aluminum conductors ranging from 2/0 AWG to 300 kcmil.
How are the trip settings configured on this breaker?
It uses a thermal magnetic trip unit with fixed thermal and fixed magnetic settings. The long time and instantaneous trip functions cannot be adjusted in the field.
Can this breaker replace older Cutler-Hammer CHH frames?
Yes, Eaton and Cutler-Hammer CHH frames are interchangeable. The CHH3200 will directly replace older Cutler-Hammer branded breakers with the exact same catalog number.
What type of connection does this breaker utilize?
This is a bolt-on breaker that features a feed-thru connection type, which is standard for its intended modular metering applications.
