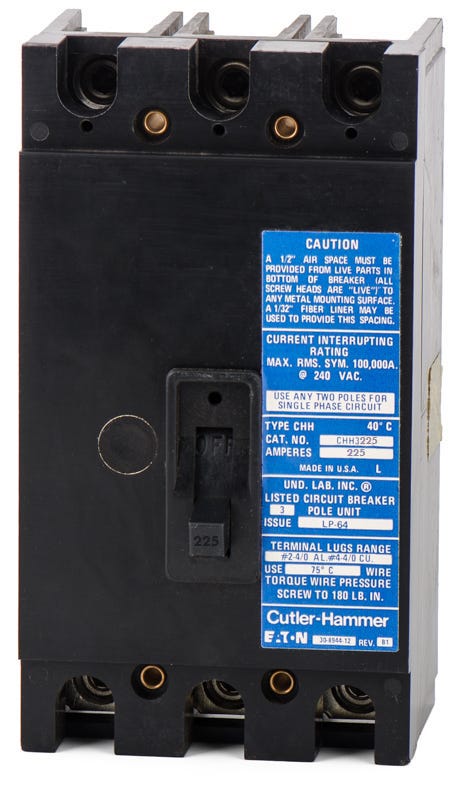

Eaton / Cutler-Hammer CHH3225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
CHH3225
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHH3225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHH3225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer CHH3225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHH3225 |
| Series | CHH |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC |
| Frame Type | CHH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Modular Metering Stacks (35MM, 37MM, 37SS) |
| Wire Gauge | #2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | #2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, CSA C22.2 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Tenant Main, High Interrupting Capacity |
Quantity
Eaton / Cutler-Hammer CHH3225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHH3225 |
| Series | CHH |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC |
| Frame Type | CHH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Modular Metering Stacks (35MM, 37MM, 37SS) |
| Wire Gauge | #2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | #2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, CSA C22.2 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Tenant Main, High Interrupting Capacity |
Similar Items
Eaton / Cutler-HammerCHH3200H4X
200A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Designed for heavy-duty commercial use, the Eaton CHH3225 is a 3-pole, 225A molded case circuit breaker equipped with a thermal-magnetic trip mechanism. This unit installs via a bolt-on connection into Eaton's 35MM, 37MM, and 37SS modular metering stacks. For future maintenance planning, the manufacturer designates the CVH3225XMM as its replacement. Rated for an exceptional 100kAIC at 240VAC, it provides superior defense against short circuits and is fully HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHH3225 |
| Series | CHH |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC |
| Frame Type | CHH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Modular Metering Stacks (35MM, 37MM, 37SS) |
| Wire Gauge | #2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | #2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, CSA C22.2 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Tenant Main, High Interrupting Capacity |
Product FAQs
7 answersWhat equipment is the CHH3225 breaker designed to fit?
This 3-pole tenant main breaker is designed for installation in Eaton modular metering stacks, specifically the 35MM, 37MM, and 37SS series enclosures.
What wire sizes are accepted by the lugs on this breaker?
The factory-installed lugs accept copper or aluminum wire ranging from #2 AWG to 300 kcmil.
Is there a direct replacement available for the CHH3225?
Yes, Eaton designates the CVH3225X as the modern replacement for this frame, maintaining the 100kAIC rating and physical compatibility for metering stacks.
What does the 100kAIC rating indicate for this tenant breaker?
The 100kAIC rating means this breaker can safely interrupt up to 100,000 amps of fault current at 240VAC, making it suitable for commercial metering applications with high available fault currents.
How does this breaker mount into the metering stack?
It utilizes a bolt-on connection to secure directly to the buswork of compatible Eaton modular metering enclosures, providing a stable and reliable connection for heavy commercial loads.
What type of trip unit is equipped on this model?
It features a fixed thermal-magnetic trip unit with long-time and instantaneous (LI) functions to protect against both sustained overloads and sudden short circuits.
What does the feed-thru connection type mean for this breaker?
A feed-thru configuration means the breaker is designed to pass power directly from the line side bus to the load side lugs, which is standard for tenant main disconnects in modular metering.
