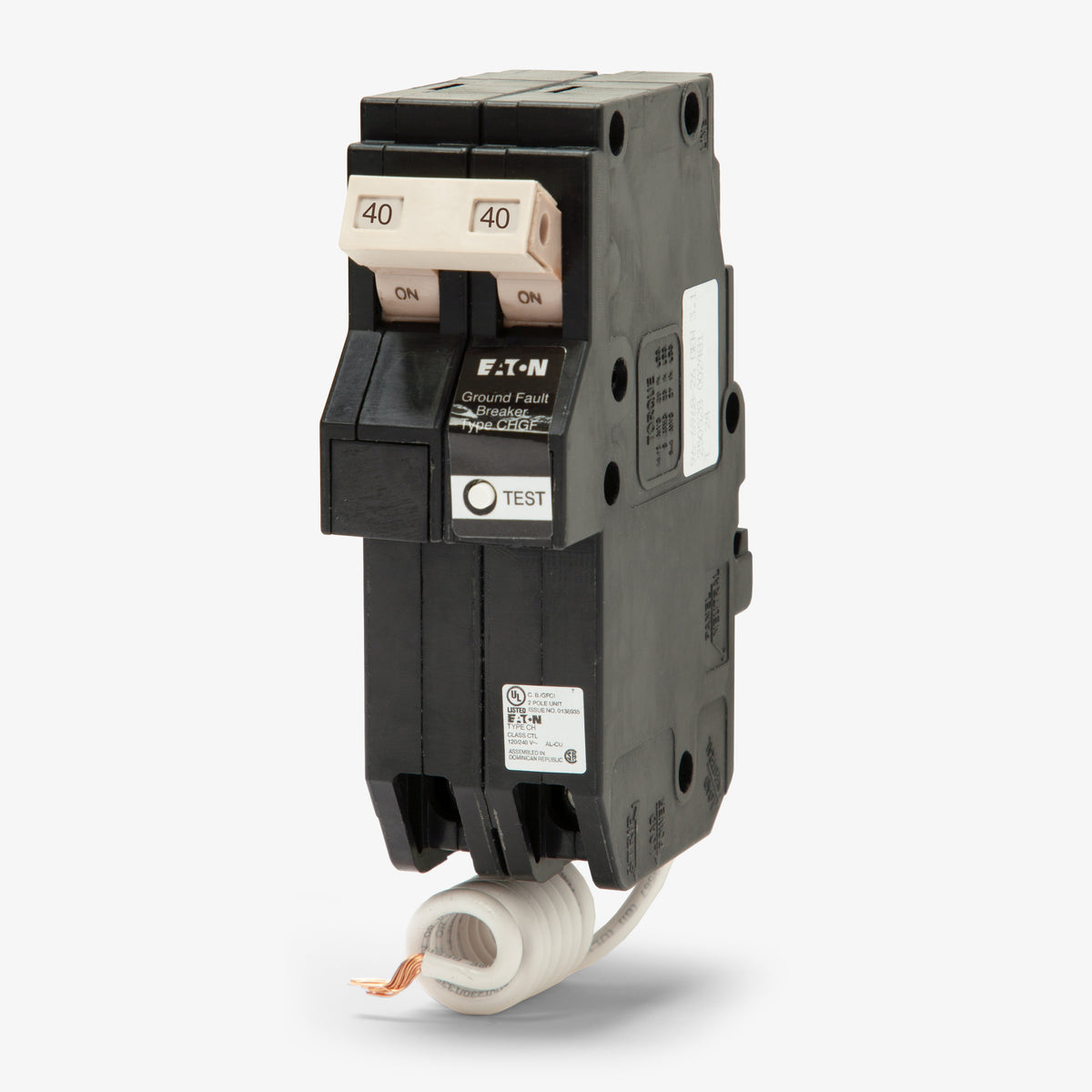

Eaton / Cutler-Hammer CHN240GF GFCI Miniature Circuit Breaker
- 40A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
CHN240GF
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHN240GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHN240GF - 40A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
35A GFCI Miniature Circuit Breaker
50A GFCI Miniature Circuit Breaker
30A GFCI Miniature Circuit Breaker
Description
Built for residential and commercial applications, the CHN240GF delivers 5mA Class A ground-fault protection for 40-amp circuits. It safeguards personnel in wet or damp locations to meet NEC standards. This two-pole breaker mounts into standard Eaton CH load centers and Type CH plug-on neutral panels. It features a pigtail neutral wire, fitting without interfering with the panel's neutral bar, and replaces the legacy CH240GF. Rated at 10 kAIC, it includes self-test capabilities.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHN240GF |
| Series | CHN |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Loadcenters, Type CH Plug-On Neutral Loadcenters |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral Wire |
| Standards | CSA C22.2 No. 5, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Self-Test, Visual Trip Indicator, Quick-Make/Quick-Break |
Product FAQs
5 answersWhat load centers are compatible with the CHN240GF?
This breaker is designed exclusively for Eaton and Cutler-Hammer Type CH load centers. It features the standard 3/4-inch per pole format and will not fit in Type BR or other 1-inch panelboards.
Is the CHN240GF a direct replacement for the CH240GF?
Yes. The CHN240GF replaces older Cutler-Hammer and Eaton catalog numbers CH240GF and CH240GFT.
Does this breaker require a plug-on neutral panel?
No. While it is listed for use in Type CH Plug-On Neutral load centers, this specific model utilizes a pigtail neutral wire. The pigtail must be routed and connected directly to the neutral bar, allowing installation in both legacy and modern CH panels.
What level of ground fault protection does this breaker offer?
It provides Class A 5mA ground fault protection for personnel. This makes it suitable for residential and commercial applications requiring life-safety GFCI capabilities, such as pools, spas, and outdoor equipment.
What does the LIG trip function indicate for this breaker?
The LIG designation means the breaker combines Long-Time and Instantaneous trip functions for standard thermal-magnetic overcurrent and short-circuit protection, along with integrated Ground-Fault sensing.
