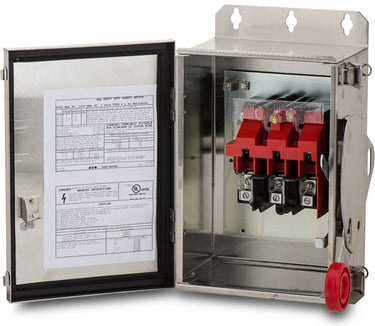

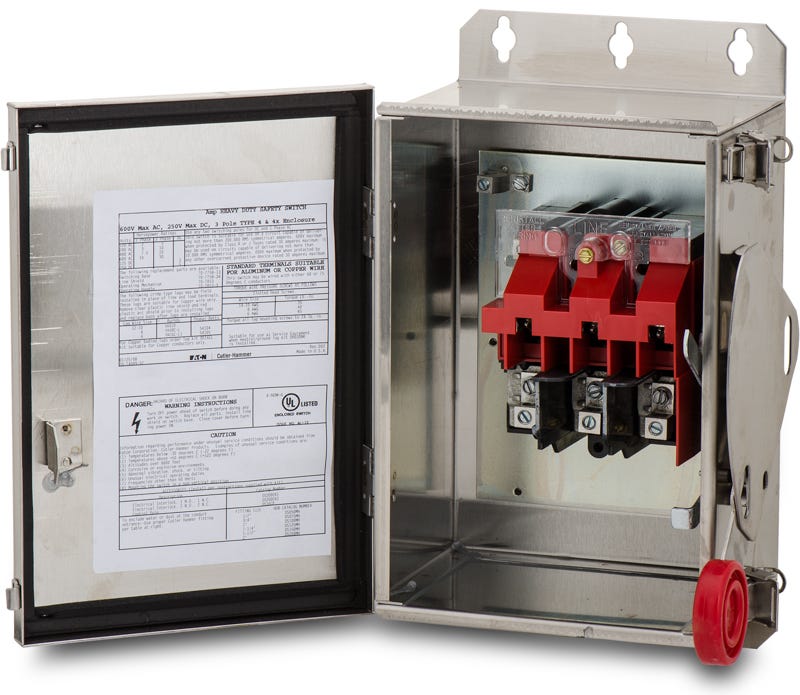

Eaton/Cutler-Hammer DH362UWK Heavy Duty Safety Switch
Quantity
Eaton/Cutler-Hammer DH362UWK Heavy Duty Safety Switch
New
Quantity
Description
Stainless Steel Heavy Duty Safety Switch from Eaton Cutler-Hammer
Eaton DH362UWK Heavy Duty Fusible Safety Switches (Also commonly referred to as a disconnect switches disconnects) provide a means to manually connect or disconnect the load from the source. Clear Line Shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shield. Visible double break rotary blade mechanism offers two points of contact for a positive open and close easier operation and to help prevent contact burning for longer contact life. .
Specifications
• Heavy Duty Non-Fused Safety Switch
• 600 Volts AC Rating
• 250 Volts DC Rating
• 60 Amp Current Rating
• Poles/Phases/Wires: 3
• Has a 4X NEMA Rating
• Surface Mounting
• Made out of Stainless Steel Material
• Manufactured by Eaton Cutler-Hammer
• Contains a palm fitting red handle that is clearly visible and allows users to easily see the handle position (ON or OFF) from a distance and provides for easy operation
• Triple padlocking capability increases personnel safety.
• Complete accessory and renewal parts data shown on inner door label
• Meets stringent UL98 standards for safety durability and reliability
• 100% rated device means the switch may be used continuously up to its rated current.
Weight & Dimensions
Weight: 13.24lbs
Door Size: 8” x 11 7/8
Total Depth (Including door): 5 1/2
Specifications
| Duty Rating | Heavy Duty |
|---|---|
| Fusibility | Fusible |
| Series | DH |
| Brand | Eaton/Cutler-Hammer |
|---|---|
| MPN | DH362UWK |
| UPC | 782113206172 |
