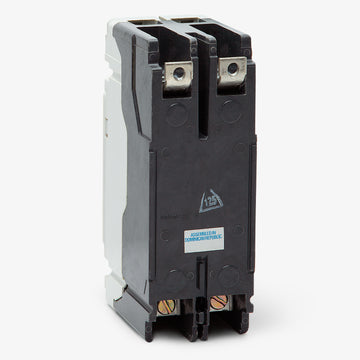

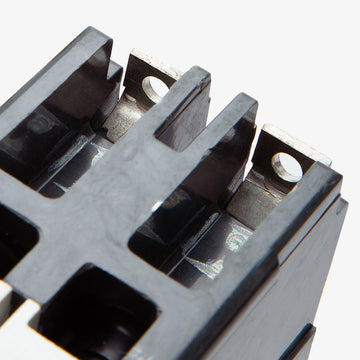

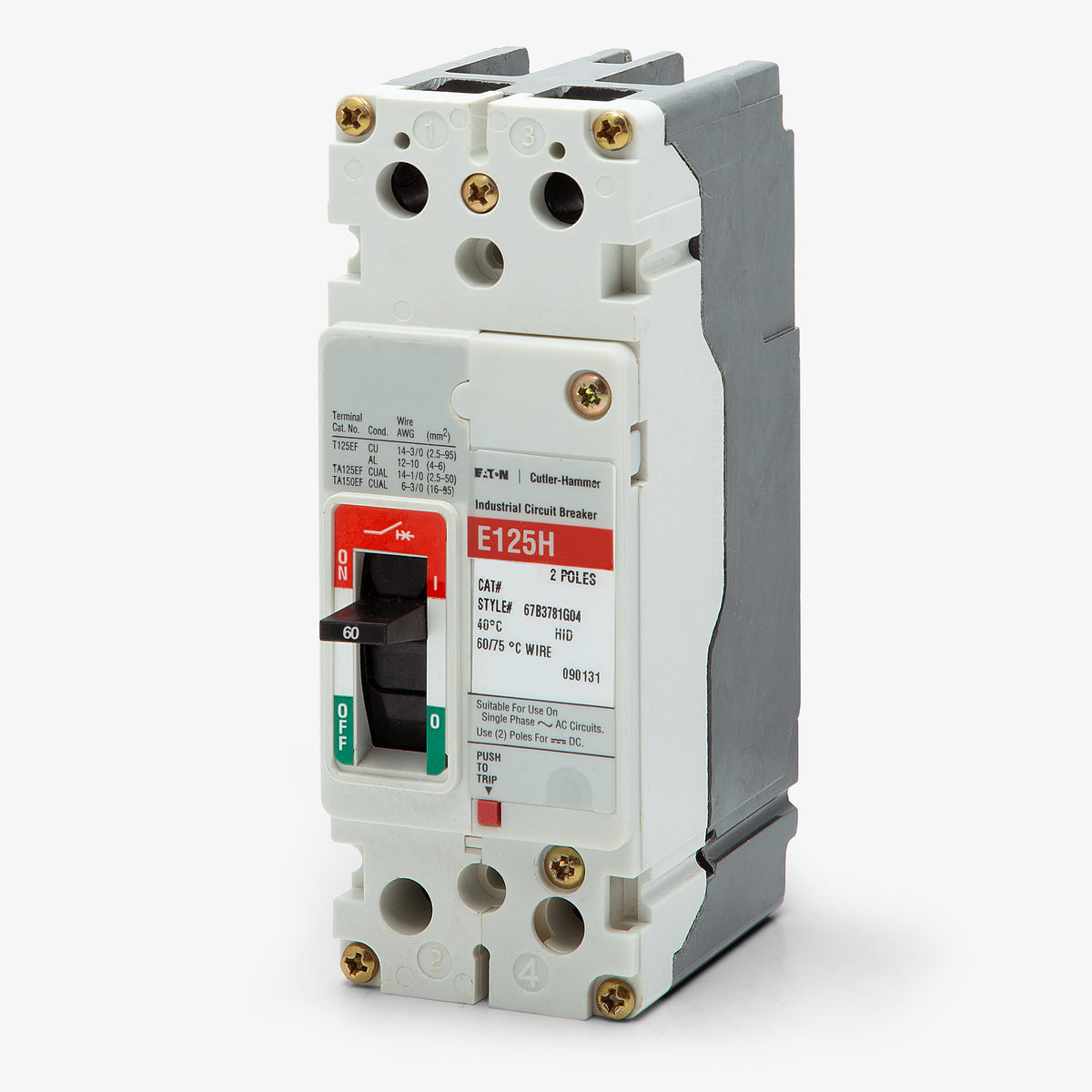

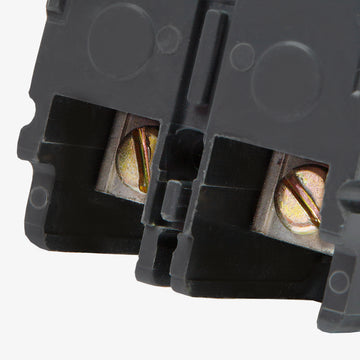

Eaton / Cutler-Hammer EGS2060FFG Molded Case Circuit Breaker
- 60A
- 2 Pole
- Unit Mount
Eaton / Cutler-Hammer
EGS2060FFG
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EGS2060FFG
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer EGS2060FFG - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerEGS2040FFG
40A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGS2030FFG
30A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGS2100FFG
100A 2 Pole Molded Case Circuit Breaker
Description
Part of the Series G family, the Eaton EGS2060FFG provides 2-pole, 60A molded case circuit protection engineered for commercial and industrial applications. This EG-frame unit mount breaker delivers reliable thermal-magnetic (LI) protection for distribution systems. It installs into Eaton Series G enclosures, switchboards, motor control centers, and OEM panels. The feed-thru lug design ensures secure wire terminations. Rated at 35kAIC at 480VAC, it features high-speed blow-open action.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EGS2060FFG |
| Series | EGS |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600Y/347VAC, 35kA @ 125/250VDC |
| Frame Type | EG-frame |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series G Enclosures, Switchboards, MCCs, OEM Panels |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Handle Mechanism |
|---|---|
| Accessories | Line and Load Lugs, Mounting Hardware |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, KEMA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, High-Speed Blow-Open Action |
Product FAQs
5 answersWhat does the "FFG" suffix indicate on this Eaton breaker?
The "FFG" suffix specifies that the breaker includes a fixed thermal and fixed magnetic trip unit, and comes standard with factory-installed line and load side lugs.
Can the EGS2060FFG be mounted on a standard DIN rail?
Yes. While it is a unit-mount, bolt-on breaker by default, it can be adapted for 35mm DIN rail mounting using the Eaton EGDIN adapter kit, which is sold separately.
What does the "S" in the EGS2060FFG catalog number represent?
In Eaton Series G nomenclature, the "S" denotes the standard interrupting capacity tier for the EG-frame, which provides a 35 kAIC rating at 480 VAC.
Will this breaker replace older Cutler-Hammer or Westinghouse EG-frame models?
Yes. Eaton acquired the Cutler-Hammer and Westinghouse distribution equipment lines. The EGS2060FFG catalog number remains consistent and is a direct replacement for older breakers bearing those legacy brand names.
Does the EGS2060FFG require busbar connections for installation?
No. This breaker features a feed-thru design with factory-installed lugs on both the line and load sides, allowing for direct wire terminations without requiring a panelboard bus connection.
