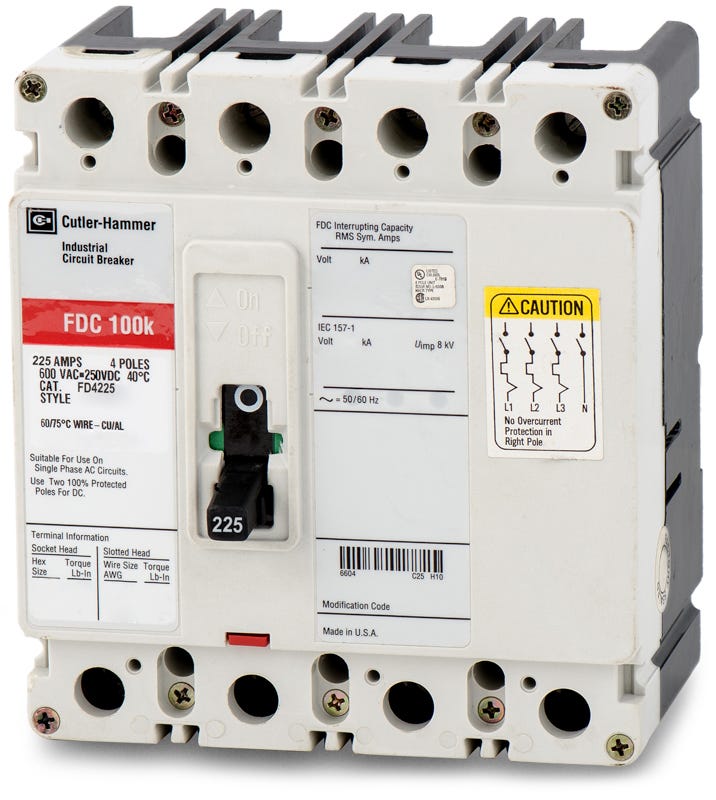

Eaton / Cutler-Hammer FD4225 Molded Case Circuit Breaker
- 225A
- 4 Pole
- Bolt-On
Quantity
Eaton / Cutler-Hammer FD4225 - 225A 4 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Eaton / Cutler-Hammer FD4225 - 225A 4 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FD4225 |
| Series | FD |
| Amperage | 225A |
| Poles | 4 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Quantity
Eaton / Cutler-Hammer FD4225 - 225A 4 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FD4225-R |
| Series | FD |
| Amperage | 225A |
| Poles | 4 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Description
Built to manage substantial electrical loads, the Eaton FD4225 is a 4-pole, 225A molded case circuit breaker from the proven Series C family. It delivers essential overcurrent and short-circuit protection for complex commercial and industrial environments. This bolt-on breaker fastens securely into Eaton panelboards, switchboards, and motor control centers. It features a fixed thermal-magnetic trip unit with a 35kAIC rating at 480VAC, ensuring robust performance and reverse feed capability.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FD4225-R |
| Series | FD |
| Amperage | 225A |
| Poles | 4 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
6 answersWhich enclosures are compatible with the Eaton FD4225 circuit breaker?
This F-Frame breaker is designed specifically for installation in Eaton Series C panelboards, switchboards, and motor control centers. It is not interchangeable with standard residential load centers.
What are the wire size requirements for the standard lugs on this breaker?
The factory-installed lugs accommodate either copper or aluminum conductors ranging from 4 AWG to 4/0 AWG. Ensure proper torque specifications are followed during installation to prevent terminal overheating.
How is the FD4225 secured within the electrical panel?
This is a bolt-on circuit breaker. It must be mechanically bolted directly to the busbars of a compatible Series C distribution panel or switchboard, ensuring a secure and high-capacity electrical connection.
Can this 4-pole breaker be utilized in DC electrical systems?
Yes. In addition to its AC ratings, the FD4225 is rated for up to 250VDC with a 10kAIC interrupting capacity, allowing it to be used in industrial DC control panels or battery backup applications.
How does the thermal-magnetic trip unit operate on the FD4225?
The fixed thermal-magnetic (LI) trip unit provides dual protection. The thermal component offers a long-time delay to prevent overheating from sustained overloads, while the magnetic component provides an instantaneous trip response to clear severe short circuits.
Does this breaker replace older Cutler-Hammer FD4225 units?
Yes. Eaton manufactures the Series C line and it serves as an exact, direct replacement for legacy Cutler-Hammer breakers bearing the same FD4225 catalog number.
