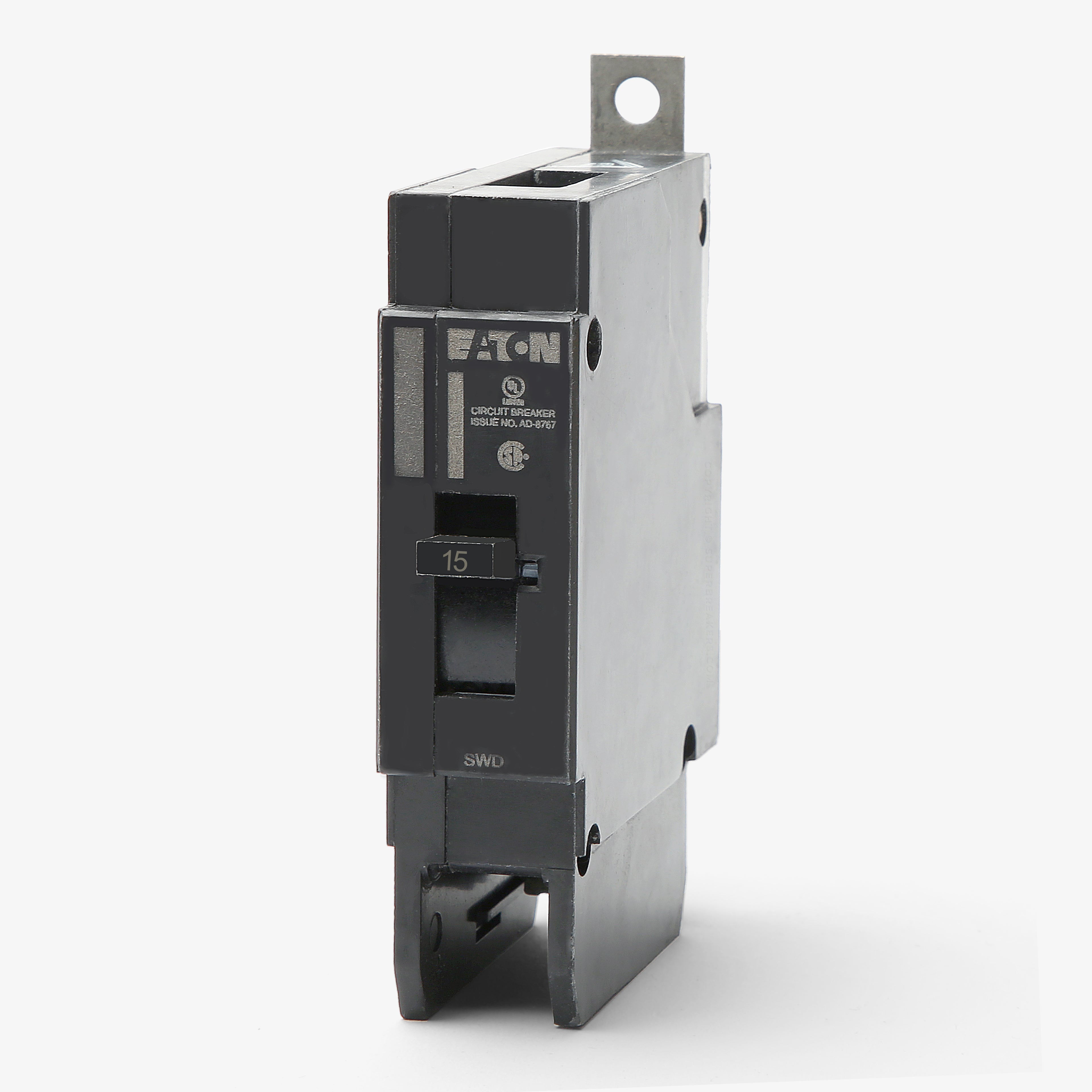

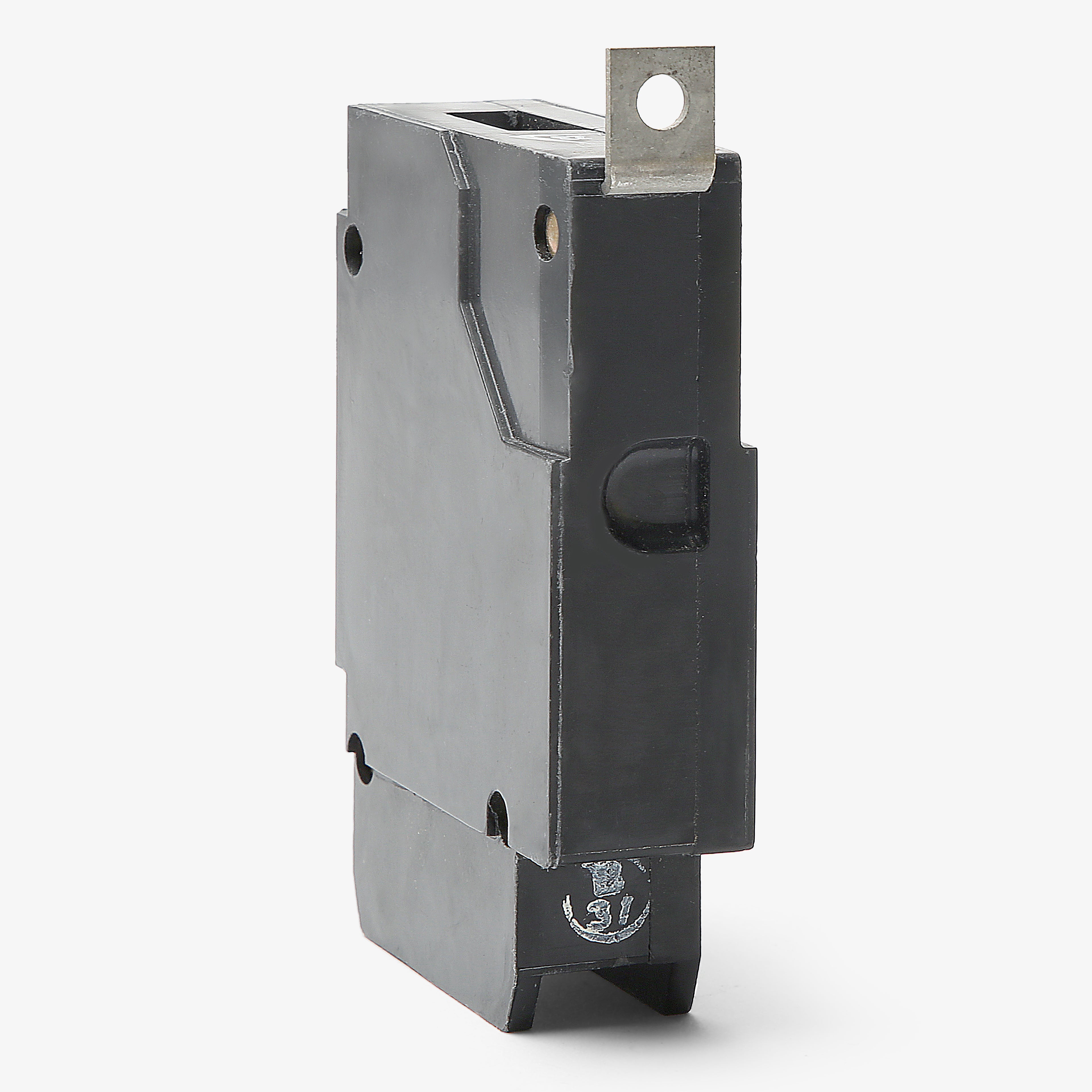

Eaton / Cutler-Hammer GHB1015 Molded Case Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
GHB1015
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB1015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB1015 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer GHB1015 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB1015 |
| Series | GHB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Series C Panelboards |
| Wire Gauge | #14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
Eaton / Cutler-Hammer GHB1015 - 15A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB1015-R |
| Series | GHB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Series C Panelboards |
| Wire Gauge | #14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
30A 1 Pole Molded Case Circuit Breaker
35A 1 Pole Molded Case Circuit Breaker
40A 1 Pole Molded Case Circuit Breaker
Description
Delivering dependable overcurrent protection for commercial environments, the GHB1015 is a core component of the Eaton Series C lineup. This 1-pole, 15A molded case circuit breaker operates at 277V. It bolts into Eaton Pow-R-Line C and Series C panelboards, providing a rigid connection. The G-frame footprint is ideal for high-density distribution. This breaker features fixed thermal-magnetic trip functions and is SWD rated for switching fluorescent lighting loads.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB1015 |
| Series | GHB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Series C Panelboards |
| Wire Gauge | #14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhich panelboards are compatible with the GHB1015 circuit breaker?
The GHB1015 is a G-Frame, bolt-on breaker designed specifically for Eaton Pow-R-Line C and Series C panelboards. It is not compatible with standard residential load centers.
Can the Eaton GHB1015 replace older Cutler-Hammer or Westinghouse GHB breakers?
Yes, Eaton acquired Cutler-Hammer and Westinghouse distribution equipment. The Eaton GHB1015 is a direct, drop-in replacement for legacy Cutler-Hammer and Westinghouse GHB1015 breakers.
Is the GHB1015 suitable for switching fluorescent lighting loads?
Yes, this 15-amp breaker carries an SWD (Switching Duty) rating, making it suitable for switching fluorescent lighting circuits. It is also HID (High Intensity Discharge) rated.
Can the GHB1015 be used in DC applications?
Yes, it is rated for up to 125VDC with an interrupting capacity of 14kAIC, making it suitable for low-voltage DC control circuits and auxiliary loads.

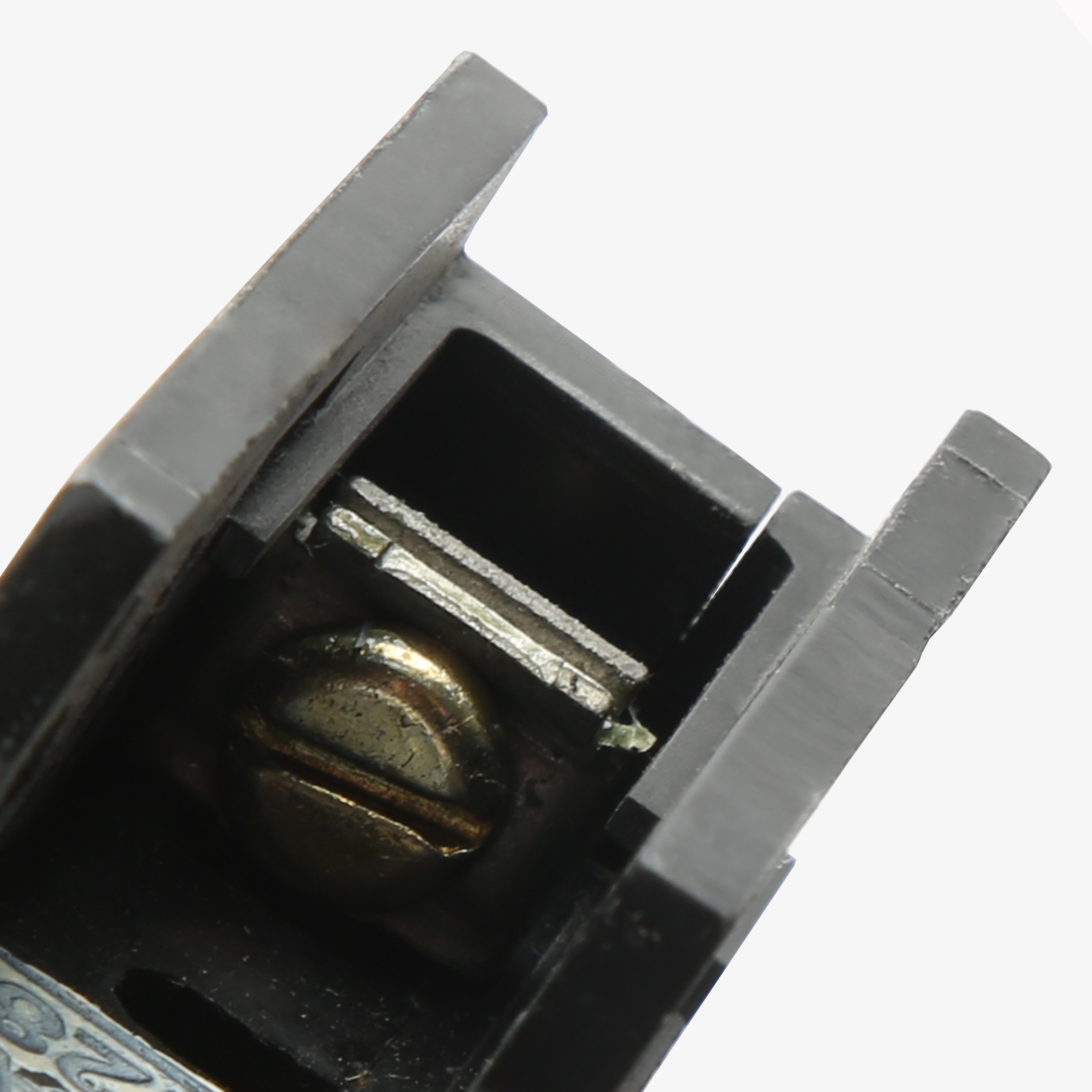

Does the GHB1015 come with terminal lugs?
Yes, it includes factory-installed screw clamp lugs that accept 14 to 10 AWG copper or aluminum conductors.
Is the Eaton GHB1015 HACR rated?
Yes, all Eaton G-Frame circuit breakers, including the GHB1015, are HACR rated for use with heating, air conditioning, and refrigeration equipment.
Can the GHB1015 be reverse fed?
Yes, this breaker is suitable for reverse feed applications, allowing flexibility in specialized panel configurations.
